EMPOWER RF SYSTEMS AMPLIFIER OPTIONS
System Chassis
|
Option |
Number |
Description |
|
011 |
Bench Top 2U – 8.5″x3.5″x16″ | |
|
B3U |
012 |
Bench Top 3U – 8.5″x5.25″x16″ |
|
021 |
Rack Mount 2U – 19″x3.5″x18″ | |
|
022 |
Rack Mount 3U – 19″x5.25″x22″ | |
|
R4U |
023 |
Rack Mount 4U – 19″x7.0″x22″ |
|
024 |
Rack Mount 5U – 19″x8.75″x22″ | |
|
R6U |
025 |
Rack Mount 6U – 19″x10.5″x22″ |
|
026 |
Rack Mount Chassis Slides | |
|
|
|
|
|
027 |
Cabinet 19U – 21.79″x33.53″x30.71″ |

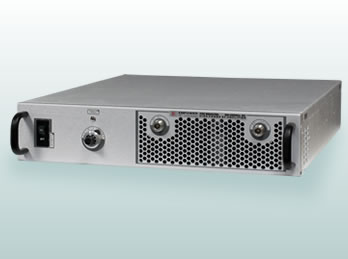

B2U
R2U
R3U
R5U
RMS
C19U
Supply Voltages
| Option | Number | Description |
| ACA | 031 | 120VAC, Single Phase (Input Range Line to Neutral 100 – 240 VAC) |
| ACB | 032 | 220VAc, Single Phase (Input Range Line to Neutral 180 – 260 VAC) |
| ACC | 033 | 208 VAC, 3-Phase (Input Range Line to Line 180 – 264 VAC) |
| ACD | 034 | 380 VAC, 3-Phase (Input Range Line to Line 323 – 418 VAC) |
| ACE | 035 | 480 VAC, 3- Phase (Input Range Line to Line 365 – 528 VAC) |
| DCA | 041 | 12 – 15VDC |
| DCB | 042 | 24VDC |
| DCC | 043 | 28VDC |
| DCD | 044 | 32VDC |
| DCE | 045 | 48VDC |
| DCF | 046 | 18 – 36VDC |
| 047 | 3 Phase Delta | |
| 048 | 3 Phase YWE |
Connectors
| Option | Number | Description |
 FCN |
051 | Front Panel Type-N |
 RCN |
052 | Rear Panel Type-N |
 FSP |
053 | Front Panel SMA-F Sample Port |
 RSP |
054 | Rear Panel SMA-F Sample Port |
Modules Options
|
Option |
Number |
Description |
|
HS0 |
071 |
Heatsink |
|
072 |
Heatsink with built in fan(s) | |
|
VVA |
073 |
Built in Gain Adjustment |
|
SHD |
074 |
Shutdown: F, M, S; TTL Hi = Disable |
|
075 |
N-Type Female Output Connector | |
|
076 |
N-Type Female In/Out Connector | |
|
FTB |
077 |
Feed-Thru Bracket |
|
TRA |
078 |
Heatsink Assembly with T/R Switch |
|
RSD |
079 |
Reverse Shutdown Polarity (TTL Hi – Enable) |
|
DOP |
080 |
Dual Output |
|
STO |
081 |
SMA Female Right Angle Output Connector |
|
TRM |
082 |
Termination Protection |
|
HIB |
083 |
Hibernation Mode |
HSF
NTO
NIO
Systems Option Packages
| Option | Drawing | Description |
 Opt01 |
 |
B2U, FCN, FGA |
| Opt02 |
|
B2U, RCN, FGA |
|
|
||
| Opt03 |
|
R2U, FCN, FGA |
| Opt04 |
|
R2U, RCN, FGA |
| Opt05 |
|
R2U, FCN, LCD |
| Opt06 |
|
R2U, RCN, LCD |
|
|
|
|
| Opt07 |
|
R3U, FCN, FGA |
| Opt08 |
|
R3U, RCN, FGA |
| Opt09 |
|
R3U, FCN, LCD |
| Opt10 |
|
R3U, RCN, LCD |
|
|
|
|
| Opt11 | R4U, FCN, FGA | |
| Opt12 | R4U, RCN, FGA | |
| Opt13 | R4U, FCN, LCD | |
| Opt14 | R4U, RCN, LCD | |
|
|
||
| Opt15 |
|
R5U, FCN, FGA |
| Opt16 |
|
R5U, RCN, FGA |
| Opt17 |
|
R5U, FCN, LCD |
| Opt18 |
|
R5U, RCN, LCD |
Note 1: The following is the typical I/O connector configuration.
|
Option |
Number |
Description |
|
1 |
Forward Test Point |
Analog Voltage 0-5 V Test Point relative to Forward Power Output Not available in Bench Top Model, not available with option 061 |
|
2 |
Reverse Test Point |
Analog Voltage 0-5 V Test Point relative to Reverse Power Not available in Bench Top Model, not available with option 061 |
|
3 |
+5 V Test Point |
Measurement Voltage Output 5 V |
|
4 |
VVA |
Analog input Voltage 5.6 V (0V = Max Gain) Not available with option 062. For option 061 (call factory) |
|
5 |
EXT Shutdown |
Disable: TTL High (5 V) Enable: TTL Low (0 V) or Open or Ground Different configuration available (call factory) |
|
6 |
+12 V (Test Point) |
Output 12 V Test Point |
|
7 |
PS+ (Test Point) |
Unit DC supply voltage Test Point |
|
8 |
GND |
Ground |
|
9 |
GND |
Ground |
Empower RF Systems NextGenSystems Solid State Broadband High Power Amplifier Family Brochure
