ATTENUATORS
Attenuators from Schwarzbeck
• DC-Block 500 – Blocking Capacitor
• DGA 9552 N – bidirectional attenuator
• DGA 9553 BNC – bidirectional attenuators
• VTSD 9561 D – Diode Pulse Limiter
• VTSD 9561 F – Diode Pulse Limiter
• VTSD 9562 – Bandpass and Limiter for Partial Discharge Measurements
DC-Block 500 Blocking Capacitor
· DC-blocking capacitor
· BNC
· Frequency range : 250kHz – 500Hz (50kHz – 1GHz)
· Max. Power: 5W
DC-Block 500 Blocking Capacitor Data Sheet
DGA 9552 N Bidirectional Attenuator
· Bidirectional Attenuator N-female N-male to 18 GHz, 50 Ohm 5 Watt.
· Available values: 3 dB, 6 dB, 10 dB,
· 20 dB, 30 dB, 40 dB.
Optional Carring Case CCA9552N
DGA 9552 N Bidirectional Attenuator Data Sheet

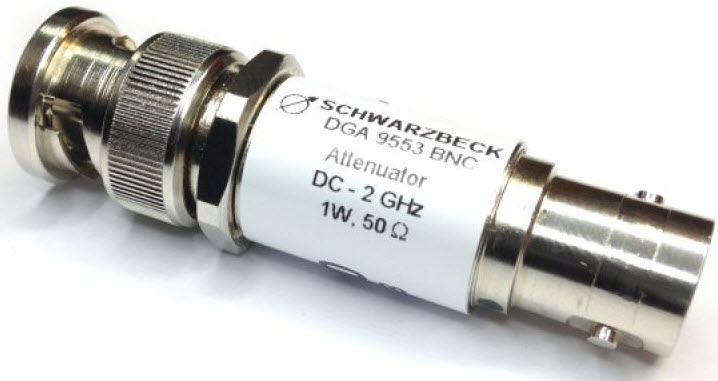

DGA 9553 BNC Bidirectional Attenuator
DGA 9553 BNC is a bidirectional attenuator, i.e. the attenuation and power capability specification is valid for both directions.
There is a large variety of applications for this attenuator: The measuring range of a spectrum analyzer can be increased. Any kind of meter can be protected against overload; it can be used to control the linearity of a meter reading. It can minimize measurement uncertainty caused by mismatched impedances.
Optional the attenuator can be delivered with an individual calibration of the attenuation.
| Frequency Range: | DC … 2 GHz |
| Impedance: | 50 Ω |
| Connectors: | BNC |
| Attenuation: | 3, 6, 10, 20, 30 dB |
| Length: | 50 mm |
| Max. Power: | 1 W |
| VSWR: | <1.2 |
| Temperature Range: | -45 … 100 °C |
| Body: | Stainless steel |
DGA 9553 BNC Bidirectional Attenuator Data Sheet
VTSD 9561 D Diode Pulse Limiter
· Diode Pulse Limiter
· + 20 dB Attenuation
· fuse lamp
· BNC
VTSD 9561 D Diode Pulse Limiter Data Sheet
VTSD 9561 F Diode Pulse Limiter
· Diode Pulse Limiter
· + 10 dB Attenuation
· fuse lamp
· N or BNC please tell us your preference!
VTSD 9561 F Diode Pulse Limiter Data Sheet
VTSD 9562 Bandpass and Limiter
· Bandpass and Limiter for Partial Discharge Measurements
· BNC
