DUMMY LAMPS
• Single Capped Twin Tube Dummy Lamps with Socket G23
• Single Capped Quadruple Tube Dummy Lamps with Socket G24
• Single Capped Twin Tube Dummy Lamps with Socket 2G11
• Linear Dummy Lamps 15 mm Diameter with G5 Socket
• Linear Dummy Lamps 20 mm Diameter with Socket G13 / 25
• Single Capped Twin Tube Dummy Lamps with Socket 2G7
• U-shape Tube Dummy Lamps with Socket 2G13
• Circular Dummy Lamps
• Related Equipment
Single Capped Twin Tube Dummy Lamps with Socket G23
LN G23 Socket LN G23 according to figure 4 e CISPR 15 socket length 47 mm tube sets of the RS G23 / xxx series required
RS G23 / 85 Tube set for LN G23 max. length of lamp acc. to IEC 85 mm length of tube 38 mm Tube diameter 13 mm 5 W
RS G23 / 145 Tube set for LN G23 max. length of lamp acc. to IEC 145 mm length of tube 98 mm Tube diameter 13 mm 9 W
RS G23 / 215 Tube set for LN G23 max. length of lamp acc. to IEC 215 mm length of tube 168 mm Tube diameter 13 mm 11 W

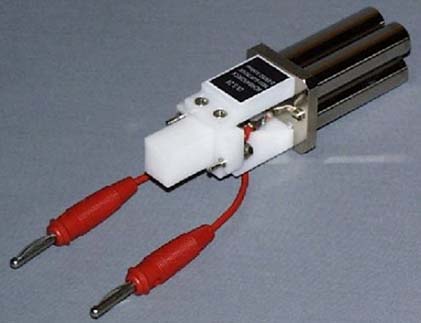

Single Capped Quadruple Tube Dummy Lamps with Socket G24
LN G24 Socket LN G24 according to figure 4 f CISPR 15 socket length 45 mm tube sets of the RS G24 / xxx series required RS G24 / 95 Tube set for
LN G24 max. length of lamp acc. to IEC 95 mm length of tube 50 mm Tube diameter 13 mm 10 W
RS G24 / 95 Tube set for LN G24 max. length of lamp acc. to IEC 95 mm length of tube 50 mm Tube diameter 13 mm 10 W
RS G24 / 130 Tube set for LN G24 max. length of lamp acc. to IEC 130 mm length of tube 85 mm Tube diameter 13 mm 13 W
RS G24 / 150 Tube set for LN G24 max. length of lamp acc. to IEC 150 mm length of tube 105 mm Tube diameter 13 mm 18 W
RS G24 / 170 Tube set for LN G24 max. length of lamp acc. to IEC 170 mm length of tube 125 mm Tube diameter 13 mm 26 W
Single Capped Twin Tube Dummy Lamps with Socket 2G11
LN 2G11 Socket LN 2G11 according to figure 4 d CISPR 15 socket
length 67 mm tube sets of the RS 2G11 / xxx series required
RS 2G11 / 225 Tube set for LN 2G11 max. length of lamp acc. to IEC 225 mm length of tube 158 mm Tube diameter 15 mm 18 W
RS 2G11 / 320 Tube set for LN 2G11 max. length of lamp acc. to IEC 320 mm length of tube 253 mm Tube diameter 15 mm 24 W
RS 2G11 / 415 Tube set for LN 2G11 max. length of lamp acc. to IEC 415 mm length of tube 348 mm Tube diameter 15 mm 36 W
RS 2G11 / 535 Tube set for LN 2G11 max. length of lamp acc. to IEC 535 mm length of tube 468 mm Tube diameter 15 mm 55 W lng5a
Linear Dummy Lamps 15 mm Diameter with G5 Socket
LN G5 Pair of sockets LN G5 according to figure 4 c CISPR 15 socket length 20 mm each tube sets of the RS G5 / xxx series required
RS G5 / 136 Tube set for LN G5 max. length of lamp acc. to IEC 136 mm length of tube 96 mm Tube diameter 15 mm 4 W
RS G5 / 212 Tube set for LN G5 max. length of lamp acc. to IEC 212 mm length of tube 172 mm Tube diameter 15 mm 6 W
RS G5 / 288 Tube set for LN G5 max. length of lamp acc. to IEC 288 mm length of tube 248 mm Tube diameter 15 mm 8 W
RS G5 / 517 Tube set for LN G5 max. length of lamp acc. to IEC 517 mm length of tube 477 mm Tube diameter 15 mm 13 W
RS G5 / 549 Tube set for LN G5 max. length of lamp acc. to IEC 549 mm length of tube 509 mm Tube diameter 15 mm 14 W
RS G5 / 849 Tube set for LN G5 max. length of lamp acc. to IEC 849 mm length of tube 809 mm Tube diameter 15 mm 21 W
RS G5 / 1449 Tube set for LN G5 max. length of lamp acc. to IEC 1449 mm length of tube 1409 mm Tube diameter 15 mm 35 W
Linear Dummy Lamps 20 mm Diameter with Socket G13 / 25
G13 / 25 LN G13 / 25 Pair of sockets LN G13 according to figure 4 a CISPR 15 socket length 75 mm each tube sets of the
RS G13 / 25 / xxx series required RS G13 / 25 / 438 Tube set for LN
G13 / 25 max. length of lamp acc. to IEC 438 mm length of tube 288 mm Tube diameter 20 mm 15 W RS G13 / 25 / 590 Tube set for LN
G13 / 25 max. length of lamp acc. to IEC 590 mm length of tube 440 mm Tube diameter 20 mm 18 W RS G13 / 25 / 720 Tube set for
LN G13 / 25 max. length of lamp acc. to IEC 720 mm length of tube 570 mm Tube diameter 20 mm 16 W RS G13 / 25 / 895 Tube set for
LN G13 / 25 max. length of lamp acc. to IEC 895 mm length of tube 745 mm Tube diameter 20 mm 30 W RS G13 / 25 / 970 Tube set for
LN G13 / 25 max. length of lamp acc. to IEC 970 mm length of tube 820 mm Tube diameter 20 mm 36 W RS G13 / 25 / 1047 Tube set for
LN G13 / 25 max. length of lamp acc. to IEC 1047 mm length of tube 897 mm Tube diameter 20 mm 38 W RS G13 / 25 / 1200 Tube set for
LN G13 / 25 max. length of lamp acc. to IEC 1200 mm length of tube 1050 mm Tube diameter 20 mm 36 W RS G13 / 25 / 1500 Tube set for
LN G13 / 25 max. length of lamp acc. to IEC 1500 mm length of tube 1350 mm Tube diameter 20 mm 58 W lng1338 Linear dummy lamps 28 mm diameter with socket
G13 / 38 LN G13 / 38 Pair of sockets LN G13 according to figure 4 a CISPR 15 socket length 75 mm each tube sets of the RS G13 / 38 / xxx series required
RS G13 / 38 / 590 Tube set for LN G13 / 38 max. length of lamp acc. to IEC 590 mm length of tube 440 mm Tube diameter 28 mm 20 W RS G13 / 38 / 970 Tube set for
LN G13 / 38 max. length of lamp acc. to IEC 970 mm length of tube 820 mm Tube diameter 28 mm 25 W RS G13 / 38 / 1200 Tube set for
LN G13 / 38 max. length of lamp acc. to IEC 1200 mm length of tube 1050 mm Tube diameter 28 mm 115 W RS G13 / 38 / 1500 Tube set for
LN G13 / 38 max. length of lamp acc. to IEC 1500 mm length of tube 1350 mm Tube diameter 28 mm 140 W RS G13 / 38 / 1800 Tube set for
LN G13 / 38 max. length of lamp acc. to IEC 1800 mm length of tube 1650 mm Tube diameter 28 mm 160 W RS G13 / 38 / 2400 Tube set for
LN G13 / 38 max. length of lamp acc. to IEC 2400 mm length of tube 2250 mm Tube diameter 28 mm 125 W
Single Capped Twin Tube Dummy Lamps with Socket 2G7
LN 2G7 Socket LN 2G7 socket length 47 mm tube sets of the RS 2G7 / xxx series required
RS 2G7 / 85 Tube set for LN 2G7 max. length of lamp acc. to IEC 85 mm length of tube 38 mm Tube diameter 13 mm 5 W
RS 2G7 / 115 Tube set for LN 2G7 max. length of lamp acc. to IEC 115 mm length of tube 68 mm Tube diameter 13 mm 7 W
RS 2G7 / 145 Tube set for LN 2G7 max. length of lamp acc. to IEC 145 mm length of tube 98 mm Tube diameter 13 mm 9 W
RS 2G7 / 215 Tube set for LN 2G7 max. length of lamp acc. to IEC 215 mm length of tube 168 mm Tube diameter 13 mm 11 W
U-shape Tube Dummy Lamps with Socket 2G13
LN 2G13 Socket LN 2G13 socket length 75 mm tube sets of the
RS 2G13 / xxx series required RS 2G13 / 310 Tube set for LN 2G13 max. length of lamp acc. to IEC 310 mm length of tube 235 mm Tube diameter 20 mm 20 W
RS 2G13 / 607 Tube set for LN 2G13 max. length of lamp acc. to IEC 607 mm length of tube 532 mm Tube diameter 20 mm 40 W
RS 2G13 / 765 Tube set for LN 2G13 max. length of lamp acc. to IEC 765 mm length of tube 690 mm Tube diameter 20 mm 65 W ln10q28
LN G10q / 28 / 216 Complete circular dummy lamp according to figure 4 b CISPR 15 max. diameter of lamp acc. to IEC 216 mm Tube diameter 20 mm 22 W ln10q32
LN G10q / 32 / 311 Complete circular dummy lamp according to figure 4 b CISPR 15 max. diameter of lamp acc. to IEC 311 mm Tube diameter 28 mm 32 W
LN G10q / 32 / 413 Complete circular dummy lamp according to figure 4 b CISPR 15 max. diameter of lamp acc. to IEC 413 mm Tube diameter 28 mm 40 W lnfa6 Single Pin Linear Dummy Lamps with Socket Fa6 LN Fa6 Pair of sockets LN Fa6 socket length 75 mm each tube sets of the
RS Fa6 / xxx series required RS Fa6 / 1200 Tube set for LN Fa6 max. length of lamp acc. to IEC 1200 mm length of tube 1050 mm Tube diameter 28 mm 32 W
RS Fa6 / 1500 Tube set for LN Fa6 max. length of lamp acc. to IEC 1500 mm length of tube 1350 mm Tube diameter 28 mm 50 W
Conical Cover Test fixture for energy saving lamps with E27 socket according to figure 7 b CISPR 15 [Picture]
Conical Cover Option E14 Additional adapter E27-E14 to insert E14 lamps into the conical cover
Conical Cover Option B22d Additional adapter E27-B22d to insert B22d lamps (common in Great Britain) into the conical cover.
Conical Cover Option GU10 Additional adapter E27-GU10 to insert GU10 lamps into the conical cover.
