Schwarzbeck Accessories

• ACS 110 – Traveler Charger for Probes and Antennas
• BN 1701 – Buffer Network
• BD 9501 – IEEE-488 Bus-Feed Through
• CA 9607 – Universal Calibration Adapter for Current Clamps
• CA 9608 – Universal Calibration Adapter
• CCA – Product Transport Cases
• CCC 9224 – Capacitive Coupling Clamp
• CCC 9225 – Capactive Coupling Plate
• CISPR 17 Equipment – Transformers
• CP 9610 – Current Sensor
• CVP 9222 C – High Impedance Capacitive Voltage Probe
• CVP 9222 – High Impedance Capacitive Voltage Probe
• HPF – High Pass Filter
• HPF 150 k – High Pass Filter
• KU 9608 – Coaxial and Line Switch
• SW 9602 – Current Transformer
• SW 9603 – Current Transformer
• SW 9605 – Current Transformer
• SW 9606 – Current Injection Clamp
• TF 130-150 – Test Fixture for Ford RI 130/ 150



ACS 110 Traveler Charger for Probes and Antennas

 · Charger for Probes and Antennas with built in with built in NiMH-batteries

BN 1701 Buffer Network


· Buffer network  (CISPR 17)
 · Frequency range: 100 kHz – 30 MHz
 · max. 32 A

  Data Sheet BN1701



BD 9501 IEEE-488 Bus-Feed Through

 · IEEE-488 Bus-Feed through for flange mounting
(shielded rooms) (other feed throughs on request)

  Data Sheet BD 9501



CA 9607 Universal Calibration Adapter for Current Clamps



· Universal calibration adapter for current clamps
 · test jig for ferrites

  Data Sheet CA 9607

CA 9608 Universal Calibration Adapter


· Universal calibration adapter for e.g. the following current clamps:
 · R&S ESV-Z1, Prodyn, IT-050-1
 · length and height settable

  Data Sheet CA 9608



CCA Product Transport Cases



 · CCA product transport cases keep your equipment safe, at any time. During transport or for safe storage
 · Individual for your product
 · A combination of products in one case are possible
 · More information about CCA and some examples are
shown in the Data Sheet

  Data Sheet CCA



 CISPR 17 Equipment

· Transformers
 · fixtures and adapters to measure filters
 · ferrites and other passive components.
 · Detailed product list and data sheets on request.

  Data Sheet CISPR 17 Equipment



CP 9610 – Current Sensor

The current sensor CP 9610 can measure up to 40 A in a frequency range from DC – 1 MHz. It is galvanically isolated and can withstand a maximum voltage of 210 VPK / VDC. The internal resistance of the conductive path is less than 3 mΩ, providing low power loss. The hall transducer is temperature compensated and allows high accuracy over temperature.



Frequency Range:	DC – 1 MHz
Output Connector:	BNC (1 MΩ)
Current Sensing Range:	-40 A – +40 A
Nominal conversion factor:	50 mV/A
Internal Conductor Resistance:	< 3 mΩ
Typical Output Error:	±3 %
Dimension:	105 x 44 x 115 mm
Typical Operation Time:	24 h
EuT Connector:	Wing terminals
Power Supply:	3.7 V, 2.6 Ah Lithium Ion
Weight:	430 g

  Schwarzbeck CP 9610 – Current Sensor Data Sheet

 CVP 9222 High Impedance Capacitive Voltage Probe



 · High Impedance Capacitive Voltage Probe according to to CISPR 22
 · EN 55022 C 1.3
· Frequency range: 9 kHz – 100 MHz

 Options:

 · Option ACS 110:Charger ACS 110 for CVP 9222
 · Option CAL 9222: Calibration Adapter for CVP 9222

  Data Sheet CVP 9222

 CVP 9222 C High Impedance Capacitive Voltage Probe





High Impedance Capacitive Voltage Probe acc. to
CISPR 22
EN 55022 C 1.3
Frequency range: 9 kHz – 100 MHz

 Options:
 · Option ACS 110: Charger ACS 110 for CVP 9222, CVP 9222 B and CVP 9222 C
 · Option CAL 9222 B: Calibration Adapter for CVP 9222, CVP 9222 B and CVP 9222 C

  Schwarzbeck CVP 9222 C High Impedance Capacitive Voltage Probe Data Sheet



 HPF High Pass Filter

 · High Pass Filter
 · 35 – 1000 MHz
 · Insertion loss at 27.12 MHz type 100 dB

  Data Sheet HPF

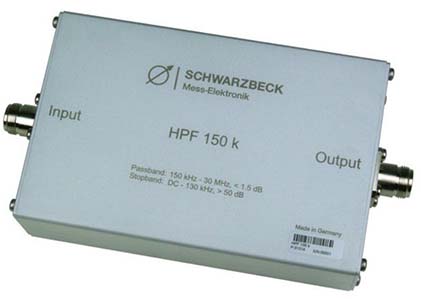

HPF 150 k High Pass Filter

The HPF is a passive LC-Filter with female N-connectors in shielded metal housing with very steep slope according to CISPR 16-1-1.
The main application is the elimination of noise below 150 kHz for conducted interference voltage measurements.
Particular features are high pulse load capacity and dielectric strength.

Specifications

Frequency Range	9 kHz – 30 MHz
Fundamental frequency:	150 kHz
Nominal impedance:	50 Ω
Continuous power:	100 W
Passband loss:	< 1.5 dB
Passband VSWR:	< 2
Stopband loss:	>50 dB @ ≤ 130 kHz
Housing material:	Aluminium
Housing dimensions:  (with connector)	50 x 105 x 240 mm
Weight:	860 g
Connector:	2 x N female

  Schwarzbeck HPF 150 k High Pass Filter Data Sheet

KU 9608 Coaxial and Line Switch

 · Coaxial and line switch for measurement of the attenuation of fluorescent lighting fittings

  Data Sheet KU9608

SW 9602 Current Transformer
 · Current Transformer
 · shielded
 · 0.01 – 200 MHz
 · Transfer Impedance: 1 Ohm for wires up to 6.5 mm

  Data Sheet SW 9602



 SW 9603 Current Transformer
· Current Transformer
 · shielded
 · 9 kHz – 150 MHz
 · Transfer Impedance: 1 Ohm for wires up to 14 mm

  Data Sheet SW 9603



 TF 130-150 Test Fixture for Ford RI 130/ 150



 · Test Fixture for Ford RI 130/ 150 Per EMC-CS-2009

  Data Sheet TF 130-150
