Microrad offers the following Meters:

• NHT 3DL reference meter for EU Directive 2013/35/EU

• NHT 3D Complex Signals Analyzer 0Hz–40GHz

• NHT 310 Broadband EM Field Meter: 0Hz–40GHz

• NHT 310 F for 5G and Radar Signals

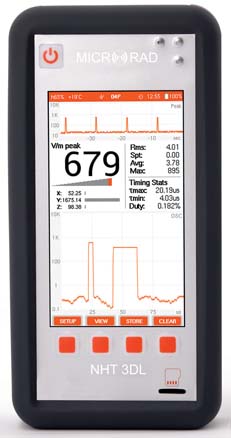

 NHT 3DL THE NEW REFERENCE METER FOR EU DIRECTIVE 2013/35/EU

• The NHT 3DL has been designed to measure electromagnetic fields in compliance with all the main international standards and regulations. This device is able to adapt to future regulatory requirements using its completely re-programmable system and structure.

• NHT 3DL is ready for the 5G challenge, for the automotive/railway electric traction industry, the medical diagnostics field and wherever regulated industrial activities exist.
• The NHT 3DL has been specifically designed to provide on board measurements of electromagnetic field characteristics in both time and frequency domains.

• The bandwidth in both modes is 1 MHz.

• Thanks to this solution it is possible to analyze and store complex waveforms with transitory/pulse features.

• In the FFT Analysis mode, the device covers the 1 MHz band in four decades, 1/10/100/1,000 kHz with 1,000 points resolution per decade and automatic peak search markers.

• In the Oscilloscope mode, it displays high-definition time frames with manual trigger function and Amplitude/Time marker.

• In the broadband operating mode with RF probes from 100 kHz to 40 GHz, it demodulates the pulse signal base band up to 500 ns, with automatic measurement of Tau, PRF and Duty Cycle values.

•This mode has been specifically designed for the Radar sources recognition and measurement.

• NHT 3DL can be completely remotely controlled via fiber optic or wireless (Wi-Fi) connections.



 Microrad NHT 3DL reference meter for the European Directive 2013/35/E Data Sheet



 NHT 3D COMPLEX SIGNALS ANALYZER 0HZ-40GHZ

• Time/Frequency domain measurements: Selective Mode: 0Hz – 400 kHz, Broadband mode: 100kHz -40GHz

• Continuous Dynamic Range>100 dB (without range changing)

• Automatic calculation of the weighted peak (WP) according to ICNIRP 2010 guidelines

• Automatic calculation of the field according to the ICNIRP index II98

• Mask with limit for the Safety standards (public or occupational)



 Microrad NHT 3D Analyzer for Complex Signals DC 40GHz Data Sheet

 Microrad NHT 3D Analyzer for Complex Signals DC 40GHz Users Manual



 NHT 310 BROADBAND EM FIELD METER: 0HZ-40GHZ

• Measurements, via different probes, broadband from 0 Hz up to 40 GHz

• Interchangeable probes for Electric, Magnetic and Electromagnetic Field Measurements

• GPS and temperature sensor embedded on board

• Multiple monitoring

• Up to 70 hours of autonomy, over 24 hours of recording



 Microrad NHT 310 Electromagnetic Field Meter DC 40GHz Data Sheet

 Microrad NHT 310 Electromagnetic Field Meter DC 40GHz Users Manual



 NHT 310 F BROADBAND EM FIELD METER FOR 5G AND RADAR SIGNALS

• Capture and display of pulse signals up to 500ns

• Measurements, via different probes, broadband from 0 Hz up to 40 GHz

• Interchangeable probes for Electric, Magnetic and Electromagnetic Field Measurements

• GPS and temperature sensor embedded on board

• Multiple monitoring

• Up to 70 hours of autonomy, over 24 hours of recording

NHT 310 F Specifications Matrix

FREQUENCY
FrequencyRange	Selective mode: DC – 1 MHz Wide Band mode: 100 kHz – 40GHz
OPERATOR INTERFACE
Graphic Display	4.3” TFT, 272 x 480 pixel, 262K color
Backlight	LED, automatic or manual intensity adjustment, readable in the sun
Input devices	Touch Screen and keypad
MEASUREMENT FUNCTIONS
Measurement units	V/m, kV/m, A/m, W/m2, mW/cm2,, uW/cm2, uT, mT, Gauss, % (depending on the probe)
Display measurement range	From 0,00001 to 999’999 (depending on the probe and on the selected unit)
Refresh period	4 times per second
Result types	r.m.s. instantaneous and peak, isotropic and individual Cartesian components
Time average	r.m.s. value on a moving window selectable from 1 sec to 24 hours
Space average	Single acquisitions average value
Max Hold	Display of the r.m.s. instantaneous value
Combined mode	Simultaneous display of electric and magnetic field values (series 33 probes)
Time measurement	Minimum (up to 500 ns) and maximum pulse width measurement and duty cycle
GRAPHIC FUNCTIONS
Data Logger	Time diagram of the measured values, selectable among: r.m.s. instantaneous or peak, time average. The window length can be set from 1 minute to 48 hours
Oscilloscope	High resolution diagram of the signal in the time domain
Marker	Graphic markers with indication of the selected value
Trigger	Programmable threshold for exceeding the instantaneous peak r.m.s. value
ACQUISITIONS
Single / continuous acquisitions	Saving of all the data presented by the instrument, with a settable interval, between one memorization and the next, from 1 to 60 seconds
Acquisition memory	Removable memory card; with the provided memory over 1 million measurements in acquisition mode or over 200 seconds in high resolution mode can be stored
GENERAL SPECIFICATIONS
Operation time	> 24 hours (backlight and external accessories off)
Charging time	3.5 hours
Integrated sensors	Humidity (accuracy ±2%) and temperature (accuracy ±0.2°C)
Interface	USB
Operating temperature	-10 °C to +50 °C
Storage temperature	-20 °C to +70°C
Humidity	5 to 90%, non-condensing
Size (h x w x d)	170 x 85 x 31 mm (without probe)
Weight	650 g (including battery, without probe)
Country of origin	Italy
ACCESSORIES
Included accessories	Rigid case, power charger, protective silicone shell, USB cable, application software and user manual in electronic format, ISO 9001÷2015 Standard IEEE 1309-2013 calibration certificate
Optional accessories	GPS sensor, Wi-Fi module, Fiber optic module, Power Bank, ISO 17025 accredited calibration certificate



 Microrad NHT 310 F Electromagnetic Field Meter DC 40GHz Data Sheet
