Antennas – Magnetic Tracking Antennas

Aaronia MDF 560 Magnetic Tracking Antenna

Aaronia MDF 560 Magnetic Tracking Antenna
• Magnetic Tracking Antenna and Field Strength Test Antenna Aaronia MDF 560 (500kHz – 60MHz).
• Broadband Magnetic Antenna which can be used for signal tracking and field strength measurements.

Highlights:
• Perfect for magnetic field direction finding in combination with Spectrum Analyzers
• High conversion accuracy allows precise field strength measurements
• Compact Design and low weight
• 10 years warranty and manufactured in Germany

Technical data
• Compatible with any Spectrum Analyzer brand
• Design: Loop
• Frequency Range: 500kHz – 60MHz (1MHz – 40MHz with max. +/- 0,3dB deviation)
• Max. input level: 5W (usable as transmitting antenna)
• Conversion factor: 1 (0 dB A/m is 0dBm)
• Impedance: 50 Ohm
• RF connector: SMA (female)
• Temperature range: – 40°C to +60°C
• Dimensions: (L/W/D): 180 x 180 x 50 mm
• Weight: 180gr
• Incl. Pistol grip with mini tripod function
• Warranty: 10 years

Included in delivery
• Aaronia MDF 560 Antenna
• Pistol grip with miniature tripod function

 Aaronia MDF 560 Magnetic Tracking Antenna Data Sheet

Aaronia MDF 9400 Magnetic Direction Finder Antenna

Aaronia MDF 9400 Magnetic Direction Finder Antenna
• Magnetic Direction Finder Antenna and Field Strength Test Antenna Aaronia MDF 9400 (9kHz – 400MHz).
• Broadband Magnetic Antenna which can be used for signal tracking and field strength measurements.

Highlights:
• Perfect for magnetic field direction finding in combination with Spectrum Analyzers
• High conversion accuracy allows precise field strength measurements
• Compact Design and low weight
• 10 years warranty and manufactured in Germany

Technical data
• Compatible with any Spectrum Analyzer brand
• Design: Loop
• Frequency Range: 9kHz – 400MHz (1MHz – 40MHz with max. +/- 0,3dB deviation)
• Max. input level: 5W (usable as transmitting antenna)
• Conversion factor: 1 (0 dB A/m is 0dBm)
• Impedance: 50 Ohm
• RF connector: SMA (female)
• Temperature range: – 40°C to +60°C
• Dimensions: (L/W/D): 180 x 180 x 50 mm
• Weight: 180gr
• Incl. Pistol grip with mini tripod function
• Warranty: 10 years

Included in delivery
• Aaronia MDF 9400 Antenna
• Pistol grip with miniature tripod function

 Aaronia MDF 9400 Magnetic Tracking Antenna Data Sheet

Aaronia MDF 930X Magnetic Direction Finder Antenna

Aaronia MDF 930X Magnetic Direction Finder Antenna
• Active Magnetic Direction Finder Aaronia MDF 930X (9kHz – 30MHz).
• Broadband Antenna which can be used for signal tracking with high gain.

Highlights:
• Perfect for magnetic field direction finding in combination with Spectrum Analyzers
• Incl. 35dB pre-amplifier with integrated battery
• Compact Design and low weight
• 10 years warranty and manufactured in Germany

Technical data
• Compatible with any Spectrum Analyzer brand
• Design: Active Loop
• Frequency Range: 9kHz – 30MHz (1MHz – 25MHz with max. +/- 0,5dB deviation)
• Impedance: 50 Ohm
• RF connector: SMA (female)
• Temperature range: – 40°C to +60°C
• Dimensions: (L/W/D): 180 x 180 x 85 mm
• Weight: 360gr
• Incl. Pistol grip with mini tripod function & watertight transport case
• Warranty: 10 years

Included in delivery
• Aaronia MDF 930X Antenna with 35dB preamp & USB power charger
• Pistol grip with miniature tripod function
• Watertight transport case with foam insert

 Aaronia MDF 930X Magnetic Tracking Antenna Data Sheet

Aaronia MDF 960X Magnetic Direction Finder Antenna

Aaronia MDF 960X Magnetic Direction Finder Antenna
• Active Magnetic Direction Finder Aaronia MDF 960X (9kHz – 60MHz).
• Similar to MDF 930X but with 25dB preamp instead 35dB and higher frequency range up to 60MHz.

Highlights:
• Perfect for magnetic field direction finding in combination with Spectrum Analyzers
• Incl. 25dB pre-amplifier with integrated battery
• Compact Design and low weight
• 10 years warranty and manufactured in Germany

Technical data
• Compatible with any Spectrum Analyzer brand
• Design: Active Loop
• Frequency Range: 9kHz – 60MHz (1MHz – 40MHz with max. +/- 1,0dB deviation)
• Impedance: 50 Ohm
• RF connector: SMA (female)
• Temperature range: – 40°C to +60°C
• Dimensions: (L/W/D): 180 x 180 x 85 mm
• Weight: 360gr
• Incl. Pistol grip with mini tripod function & watertight transport case
• Warranty: 10 years

Included in delivery
• Aaronia MDF 960X Antenna with 25dB preamp & USB power charger
• Pistol grip with miniature tripod function
• Watertight transport case with foam insert

 Aaronia MDF 960X Magnetic Tracking Antenna Data Sheet

Aaronia MDF 50400X Magnetic Direction Finder Antenna

Aaronia MDF 50400X Magnetic Direction Finder Antenna
• Active Magnetic Tracking Antenna with very broad frequency range (500kHz – 40MHz) and high power preamplifier (40dB).

Highlights:
• Perfect for magnetic field direction finding in combination with Spectrum Analyzers
• Incl. 40dB pre-amplifier with integrated battery
• Compact Design and low weight
• 10 years warranty and manufactured in Germany

Technical data
• Compatible with any Spectrum Analyzer brand
• Design: Loop
• Frequency Range: 500kHz – 400MHz (1MHz – 40MHz with max. +/- 1,0dB deviation)
• Impedance: 50 Ohm
• RF connector: SMA (female)
• Temperature range: – 40°C to +60°C
• Dimensions: (L/W/D): 180 x 180 x 85 mm
• Weight: 360gr
• Incl. Pistol grip with mini tripod function, USB charger & watertight transport case
• Warranty: 10 years

Included in delivery
• Aaronia MDF 50400X Antenna with 40dB preamp & USB power charger
• Pistol grip with miniature tripod function
• Watertight transport case with foam insert

 Aaronia MDF 50400X Magnetic Tracking Antenna Data Sheet

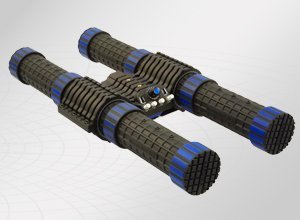

Aaronia Magnotracker ELF-6 Magnetic Direction Finder Antenna

• Active ELF, SLF and ULF tracking Antenna with high gain (1Hz to 9kHz). Unbeatable directionality, perfect for signal tracking. Including internal 25dB pre-amplifier (optional 35dB).

A lot of customers have problems detecting and pin pointing signals in the low frequency range from 1Hz to 9kHz. They want one antenna with high gain to cover the full frequency range.
The antenna should also offer a high directivity to pin point the signal(s). Until today, such an antenna simply did not exist. Aaronia now offer world´s first patent pending magnetic antenna «MagnoTRACKER» combining all those features.
Based on a new patented production process Aaronia can produce this new cores with only 10% of the material and weight needed for similar working ferrites. A great advantage for the handling of the MagnoTRACKER antenna.
The Aaronia MagnoTRACKER is usable for the full frequency range of 1Hz to 9kHz without any adjustment. Simply connect it via SMA cable to your Receiver, Spectrum Analyzer, Oscilloscope, Power Meter etc. With a built-in 25dB pre-amplifier (optional 35dB) the antenna offers a very high gain.
Finding disturbing signals, interferences etc. was never that simply and efficient.

 Aaronia Magnotracker ELF-6 Magnetic Direction Finder (MagnoTRACKER) User Manual

Aaronia Magnotracker LF-6 Magnetic Direction Finder Antenna

• Active High Gain LF Tracking Antenna with best directionality (9kHz – 1MHz). Adjustable resonance frequency for highest possible gain. Unbeatable directionality, perfect for signal tracking.

A lot of customers have problems detecting and pin pointing signals in the low frequency range from 9kHz to 1MHz. They want one antenna with high gain to cover the full frequency range. The antenna should also offer a high directivity to pin point the signal(s). Till today such an antenna simply did not exist. Aaronia now offer world´s first patent pending magnetic antenna «MagnoTRACKER» combining all those features.
Based on a new patented production process Aaronia can produce this new cores with only 10% of the material and weight needed for similar working ferrites. A great advantage for the handling of the MagnoTRACKER antenna. The Aaronia Magnotracker is usable for the full frequency range of 9kHz to 1MHz without any adjustment. Simply connect it via SMA cable to your Receiver, Spectrum Analyzer, Oscilloscope, Power Meter etc. But the great advantage of the antenna is that you can also adjust it to ANY frequency within the full frequency range. With the help of 4 adjustment switches (Range: x1; x10; x100; x1000) and a fine pitch adjustment switch (Range: 1-16) to get a much higher gain at that special frequency working some sort as a filter or spectrum analyzer. This is a great feature to reduce unwanted signals and to focus on the signal of interest.
Finding bugs or disturbing signals was never that simply and efficient.

 Aaronia Magnotracker LF-6 Magnetic Direction Finder (MagnoTRACKER) User Manual

• Aaronia MagnoTRACKER ELF-2

• Active High Gain LF Tracking Antenna with best directionality (9kHz – 1MHz). Adjustable resonance frequency for highest possible gain. Unbeatable directionality, perfect for signal tracking.

A lot of customers have problems detecting and pin pointing signals in the low frequency range from 9kHz to 1MHz. They want one antenna with high gain to cover the full frequency range. The antenna should also offer a high directivity to pin point the signal(s). Till today such an antenna simply did not exist. Aaronia now offer world´s first patent pending magnetic antenna «MagnoTRACKER» combining all those features.
Based on a new patented production process Aaronia can produce this new cores with only 10% of the material and weight needed for similar working ferrites. A great advantage for the handling of the MagnoTRACKER antenna. The Aaronia Magnotracker is usable for the full frequency range of 9kHz to 1MHz without any adjustment. Simply connect it via SMA cable to your Receiver, Spectrum Analyzer, Oscilloscope, Power Meter etc. But the great advantage of the antenna is that you can also adjust it to ANY frequency within the full frequency range. With the help of 4 adjustment switches (Range: x1; x10; x100; x1000) and a fine pitch adjustment switch (Range: 1-16) to get a much higher gain at that special frequency working some sort as a filter or spectrum analyzer. This is a great feature to reduce unwanted signals and to focus on the signal of interest.
Finding bugs or disturbing signals was never that simply and efficient.

 Aaronia Magnotracker ELF-2 Magnetic Direction Finder (MagnoTRACKER) User Manual

• Aaronia MagnoTRACKER LF-2

• Active High Gain LF Tracking Antenna with best directionality (9kHz – 1MHz). Adjustable resonance frequency for highest possible gain. Unbeatable directionality, perfect for signal tracking.

A lot of customers have problems detecting and pin pointing signals in the low frequency range from 9kHz to 1MHz. They want one antenna with high gain to cover the full frequency range. The antenna should also offer a high directivity to pin point the signal(s). Till today such an antenna simply did not exist. Aaronia now offer world´s first patent pending magnetic antenna «MagnoTRACKER» combining all those features.
Based on a new patented production process Aaronia can produce this new cores with only 10% of the material and weight needed for similar working ferrites. A great advantage for the handling of the MagnoTRACKER antenna. The Aaronia Magnotracker is usable for the full frequency range of 9kHz to 1MHz without any adjustment. Simply connect it via SMA cable to your Receiver, Spectrum Analyzer, Oscilloscope, Power Meter etc. But the great advantage of the antenna is that you can also adjust it to ANY frequency within the full frequency range. With the help of 4 adjustment switches (Range: x1; x10; x100; x1000) and a fine pitch adjustment switch (Range: 1-16) to get a much higher gain at that special frequency working some sort as a filter or spectrum analyzer. This is a great feature to reduce unwanted signals and to focus on the signal of interest.
Finding bugs or disturbing signals was never that simply and efficient.

 Aaronia Magnotracker LF-2 Magnetic Direction Finder (MagnoTRACKER) User Manual
