Aaronia Biconical Antennas (active)
• 50MHz-700MHz – Aaronia BicoLOG 5070 X (active) Biconical Antenna
• 20MHz-1GHz – Aaronia BicoLOG 20100EX (active) Biconical Antenna
• 20MHz-1GHz – Aaronia BicoLOG 20100 X (active) Biconical Antenna
• 20MHz-3GHz – Aaronia BicoLOG 20300 X (active) Biconical Antenna
• 30MHz-1GHz – Aaronia BicoLOG 30100E X (active Version) Biconical Antenna
• 30MHz-1GHz – Aaronia BicoLOG 30100 X (active) Biconical Antenna

Aaronia Biconical Antennas
• 50MHz-700MHz – Aaronia BicoLOG 5070 Biconical Antenna
• 20MHz-1GHz – Aaronia BicoLOG 20100 Biconical Antenna
• 20MHz-1GHz – Aaronia BicoLOG 20100E (EMC Version) Biconical Antenna
• 20MHz-3GHz – Aaronia BicoLOG 20300 Biconical Antenna• Aaronia BicoLOG 30100 Biconical Antenna
• 30MHz-1GHz – Aaronia BicoLOG 30100E Biconical Antenna
• 20MHz-1GHz – Aaronia BicoLOG XL (Ultra EMC Version) Biconical Antenna

Click here to see all Antennas available through Reliant EMC

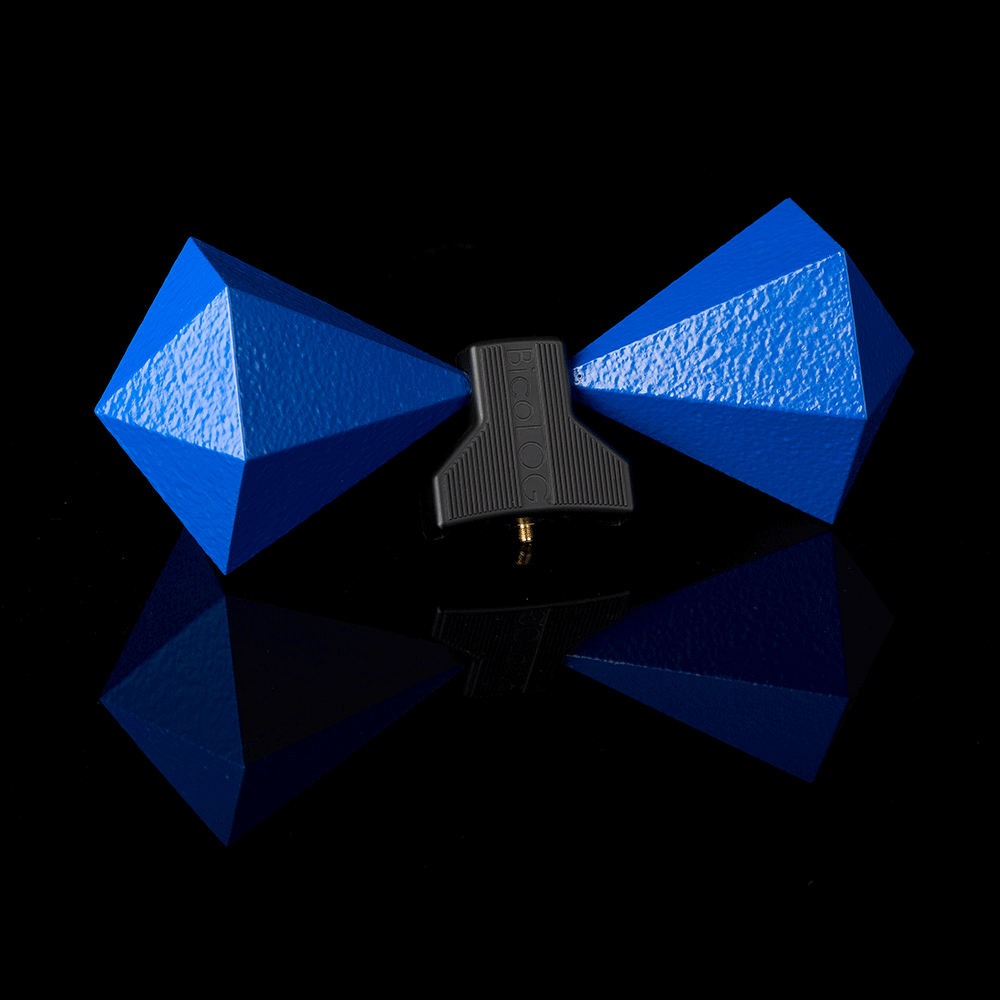

Aaronia BicoLOG 5070 Biconical Antenna
Aaronia BicoLOG 5070 Biconical Antenna

Highlights:
· Excellent cost effective choice for low frequency measurements down to 50MHz
· Typical standard calibration data (on CD)
· Coverage of various mobile radio frequency ranges
· Suitable for field-strength and EMC measurements due to high precision
· Compact design
· Can be used in the lab and for open-field application

Technical data
· Compatible with any Spectrum Analyzer brand
· Design: Biconical (radial isotropic)
· Frequency range: 50MHz to 700MHz
· Max. input power: 5W AM (100MHz)
· Nominal impedance: 50 Ohm
· Gain: -18dBi (@100MHz)
· Antenna factor: See data sheet graph
· RF connection: SMA (f) or N (see optional adapter)
· Tripod connection: 1/4″
· Calibration points: 70 (5MHz and 10MHz-steps)
· Dimensions (L/W/D): 350x160x140mm
· Weight: 350gr
· Warranty: 10 years

Included in delivery
· BicoLOG 5070 radial isotropic biconical antenna
· Typical calibration data with 70 calibration points (5MHz and 10MHz steps!) on CD
· Carrying case not included! Please order it separately!

 Aaronia BicoLOG 5070 Biconical Antenna Data Sheet

Aaronia BicoLOG 5070 X 50MHz-700MHz (active) Biconical Antenna

Aaronia BicoLOG 5070 X Biconical Antenna
Excellent cost effective active antenna for low frequency measurements. Perfect to cover the full radio & TV frequency band down to 50MHz including Tetra/BOS & ISM434.

Highlights:
The active antennas of the BicoLOG® X-Series are the perfect tool for performing economic and still highly accurate measurements with unbeatable sensitivity in the lower frequency range down to 20MHz. These radial-isotropic-antenna are already delivered with typical, extensive calibration data in order to facilitate calibration for various measurement systems. The high-quality measurement-antennas of the BicoLOG® series are very light-weight and as such perfectly suited for mobile application, as well as usage in the laboratory. Every BicoLOG-Antenna has a high-grade SMA connector and as such can be connected to many measuring equipment. Devices, like Spectrum Analyzer, with N connector can be used with our optional adapter as well.

BicoLOG 5070 X (active) (50MHz – 700MHz) Technical data
• Very high gain up to 41dBi!
• Only a single active antenna for the complete frequency range from 50MHz up to 700MHz
• Optimal for usage with spectrum analysers for EMC measurement
• Suitable for mobile use
• Robust design
• Small weight and dimensions
• Made in Germany
• 10 years warranty

Included in delivery
· BicoLOG 5070 radial isotropic biconical antenna
· Typical calibration data with 70 calibration points (5MHz and 10MHz steps!) on CD
· Carrying case not included! Please order it separately!

 Aaronia BicoLOG 5070 X Biconical Antenna Data Sheet



Aaronia BicoLOG 20100 Biconical Antenna
Aaronia BicoLOG 20100 Biconical Antenna

Highlights:
· Excellent cost effective choice for low frequency measurements down to 20MHz
· Typical standard calibration data (on CD)
· Coverage of various mobile radio frequency ranges
· Suitable for field-strength and EMC measurements due to high precision
· Compact design
· Can be used in the lab and for open-field application

Technical data
· Compatible with any Spectrum Analyzer brand
· Design: Biconical (biconical dipole)
· Frequency range: 20MHz to 1GHz
· Max. input power: 5W AM (100MHz)
· Nominal impedance: 50 Ohm
· Gain: -18dBi (@100MHz)
· Antenna factor: See data sheet graph
· RF connection: SMA (f) or N (see optional adapter)
· Tripod connection: 1/4″
· Calibration points: 106 (5MHz and 10MHz-steps)
· Dimensions (L/W/D): 350x160x140mm
· Weight: 350gr
· Warranty: 10 years

Included in delivery
· Biconical antenna BicoLOG 20100
· Typical calibration data with 106 calibration points (5MHz and 10MHz steps!) on CD
· Carrying case not included! Please order it separately!

 Aaronia BicoLOG 20100 Biconical Antenna Data Sheet

Aaronia BicoLOG 20100E Biconical Antenna
Aaronia BicoLOG 20100E Biconical Antenna

Highlights:
· Excellent gain performance for EMC measurements down to 20MHz · Typical standard calibration data (on CD)
· Coverage of various mobile radio frequency ranges
· Suitable for field-strength and EMC measurements due to high precision
· Compact design
· Can be used in the lab and for open-field application

Technical data
· Compatible with any Spectrum Analyzer brand
· Design: Biconical (radial isotropic)
· Frequency range: 20MHz to 1GHz
· Max. input power: 5W AM (100MHz)
· Nominal impedance: 50 Ohm
· Gain: -9dBi (@100MHz)
· Antenna factor: See data sheet graph
· RF connection: SMA socket (18GHz) or N socket using an adapter
· Calibration points: 196 (5MHz-steps!)
· Dimensions (L/W/D): 540x225x225mm
· Weight: 1150gr
· Warranty: 10 years

Included in delivery
· EMC Antenna BicoLOG 20100E
· Typical calibration data with 196 calibration points (5MHz steps!) on CD
· Heavy plastic carrying case

 Aaronia BicoLOG 20100E Biconical Antenna Data Sheet

Aaronia BicoLOG 20100EX (active Version) (20MHz – 1GHz) Biconical Antenna
Aaronia BicoLOG 20100EX Biconical Antenna
Active EMC broadband antenna BicoLOG 20100E X with much higher gain especially in the low frequency range. Meets even most restrictive EMC standards like EN55011, EN55022 etc..

Highlights:
EMC active antenna BicoLOG 20100E X with much higher gain especially in the low frequency range. Meets even most restrictive EMC standards like EN55011, EN55022 etc.. Every BicoLOG EMC Test-Antenna goes through rigorous testing in our laboratories before dispatch and is equipped with a high quality rubber paint which offers protection against mechanical damage and environmental influence, a top-quality integrated tripod connection and an SMA connector.

BicoLOG 20100EX (active Version) (20MHz – 1GHz) Technical data
• Special active version with optimized antenna gain
• Frequency range: 20MHz to 1GHz
• Nominal impedance: 50 Ohm
• Gain: 2dBi to 41dBi
• Only a single broadband antenna for the complete frequency range from 20MHz up to 1GHz
• Optimal for usage with spectrum analysers for EMC measurement
• Suitable for mobile use
• Robust design
• Small weight and dimensions
• Made in Germany
• 10 years warranty

 Aaronia BicoLOG 20100E X Biconical Antenna Data Sheet

Aaronia BicoLOG 20300 Biconical Antenna
Aaronia BicoLOG 20300 Biconical Antenna

Highlights:
· Excellent cost effective choice for low frequency measurements down to 50MHz
· Typical standard calibration data (on CD)
· Coverage of various mobile radio frequency ranges
· Suitable for field-strength and EMC measurements due to high precision
· Compact design
· Can be used in the lab and for open-field application

Technical data
· Compatible with any Spectrum Analyzer brand
· Design: Biconical (radial isotropic)
· Frequency range: 20MHz to 3GHz
· Max. input power: 5W AM (100MHz)
· Nominal impedance: 50 Ohm
· Gain: -18dBi (@100MHz)
· Antenna factor: See data sheet graph
· RF connection: SMA (f) or N (see optional adapter)
· Calibration points: 296 (5MHz and 10MHz-steps)
· Dimensions (L/W/D): 350x160x140mm
· Weight: 350gr
· Warranty: 10 years

Included in delivery
· BicoLOG 20300 radial isotropic biconical antenna
· Typical calibration data with 296 calibration points (5MHz and 10MHz steps!) on CD
· Carrying case not included! Please order it separately!

 Aaronia BicoLOG 20300 Biconical Antenna Data Sheet

Aaronia BicoLOG 30100E X 30MHz-1GHz (active Version) Biconical Antenna

Technical data
Compatible with any Spectrum Analyzer brand

Design: Biconical (radial isotropic)

Frequency range: 30MHz to 1GHz

Max. output power: 100mW AM

Nominal impedance: 50 Ohm

Gain: 9dBi to 41dBi

Antenna factor: See data sheet graph

RF connection: SMA socket (18GHz) or N socket using an adapter

Calibration points: 194 (5MHz-steps!)

Dimensions (L/W/D): 540x225x225mm

Weight: 1300gr

Warranty: 10 years



Highlights:

Excellent gain performance for EMC measurements down to 30MHz

Typical standard calibration data (on CD)

Coverage of various mobile radio frequency ranges

Suitable for field-strength and EMC measurements due to high precision

Compact design Can be used in the lab and for open-field application



Included in delivery

Biconical EMC Antenna BicoLOG 30100E X with preamplifier

Typical calibration data with 194 calibration points (5MHz steps!) on CD

Heavy plastic carrying case

SMA tool



 Aaronia BicoLOG 30100E X Biconical Antenna Data Sheet



20MHz-3GHz – Aaronia BicoLOG 20300 X (active) Biconical Antenna

Technical data
Compatible with any Spectrum Analyzer brand
Design: Biconical (radial isotropic)
Frequency range: 20MHz to 3GHz
Max. output power: 100mW AM
Nominal impedance: 50 Ohm
Gain: -5dBi to 41dBi
Antenna factor: See data sheet graph
RF connection: SMA (f) or N (see optional adapter)
Calibration points: 296 (5MHz and 10MHz-steps)
Dimensions (L/W/D): 350x160x140mm
Weight: 500gr
Warranty: 10 years

Highlights:
Excellent cost effective choice for low frequency measurements down to 50MHz
Typical standard calibration data (on CD)
Coverage of various mobile radio frequency ranges
Suitable for field-strength and EMC measurements due to high precision
Compact design Can be used in the lab and for open-field application

Included in delivery
BicoLOG 20300 X radial isotropic biconical antenna with preamplifier
Typical calibration data with 296 calibration points (5MHz and 10MHz steps!) on CD
Transport case
SMA tool

 Aaronia BicoLOG 20300 X Biconical Antenna Data Sheet

Aaronia BicoLOG 30100 Biconical Antenna
Aaronia BicoLOG 30100 Biconical Antenna

Highlights:
· Excellent cost effective choice for low frequency measurements down to 30MHz
· Typical standard calibration data (on CD)
· Coverage of various mobile radio frequency ranges
· Suitable for field-strength and EMC measurements due to high precision
· Compact design
· Can be used in the lab and for open-field application

Technical data
· Compatible with any Spectrum Analyzer brand
· Design: Biconical (radial isotropic)
· Frequency range: 30MHz to 1GHz
· Max. input power: 5W AM (100MHz)
· Nominal impedance: 50 Ohm
· Gain: -18dBi (@100MHz)
· Antenna factor: See data sheet graph
· RF connection: SMA (f) or N (see optional adapter)
· Tripod connection: 1/4″
· Calibration points: 104 (5MHz and 10MHz-steps)
· Dimensions (L/W/D): 350x160x140mm
· Weight: 350gr
· Warranty: 10 years

Included in delivery
· BicoLOG 30100 radial isotropic biconical antenna
· Typical calibration data with 104 calibration points (5MHz and 10MHz steps!) on CD
· Carrying case not included! Please order it separately!

 Aaronia BicoLOG 30100 Biconical Antenna Data Sheet

30MHz-1GHz – Aaronia BicoLOG 30100 X (active) Biconical Antenna

Technical data
Compatible with any Spectrum Analyzer brand Design: Biconical (radial isotropic) Frequency range: 30MHz to 1GHz Max. Output power: 100mW AM Nominal impedance: 50 Ohm Gain: 1dBi to 41dBi Antenna factor: See data sheet graph RF connection: SMA (f) or N (see optional adapter) Tripod connection: 1/4″ Calibration points: 104 (5MHz and 10MHz-steps) Dimensions (L/W/D): 350x160x140mm Weight: 500gr Warranty: 10 years



Highlights:

Excellent cost effective choice for low frequency measurements down to 30MHz Typical standard calibration data (on CD) Coverage of various mobile radio frequency ranges Suitable for field-strength and EMC measurements due to high precision Compact design Can be used in the lab and for open-field application



Included in delivery
Included in delivery BicoLOG 30100 X radial isotropic biconical antenna with preamplifier Typical calibration data with 104 calibration points (5MHz and 10MHz steps!) on CD Carrying case SMA tool

 Aaronia BicoLOG 30100 X Biconical Antenna Data Sheet

Aaronia BicoLOG 30100E Biconical Antenna

Aaronia BicoLOG 30100E Biconical Antenna

Highlights:
· Excellent gain performance for EMC measurements down to 30MHz · Typical standard calibration data (on CD)
· Coverage of various mobile radio frequency ranges
· Suitable for field-strength and EMC measurements due to high precision
· Compact design
· Can be used in the lab and for open-field application

Technical data
· Compatible with any Spectrum Analyzer brand
· Design: Biconical (radial isotropic)
· Frequency range: 30MHz to 1GHz
· Max. input power: 5W AM (100MHz)
· Nominal impedance: 50 Ohm
· Gain: -9dBi (@100MHz)
· Antenna factor: See data sheet graph
· RF connection: SMA socket (18GHz) or N socket using an adapter
· Calibration points: 194 (5MHz-steps!)
· Dimensions (L/W/D): 540x225x225mm
· Weight: 1150gr
· Warranty: 10 years

Included in delivery
· Biconical EMC Antenna BicoLOG 30100E
· Typical calibration data with 194 calibration points (5MHz steps!) on CD
· Heavy plastic carrying case

 Aaronia BicoLOG 30100E Biconical Antenna Data Sheet
