Real-Time Spectrum Analyzers

• SPECTRAN V6 DESKTOP

6 GHz USB Real-Time Spectrum Analyzer & Vector Signal Generator
Fast, compact and powerful

Aaronia presents the SPECTRAN® V6 X, a real-time high-performance spectrum analyzer and monitoring receiver designed to capture even shortest signal transmissions. Its scanning speed and recording time are unrivalled. The analyzer scans 6 GHz in less than 5 ms, making it world’s fastest USB spectrum analyzer.

This spectrum analyzer enables you to master any challenge. Whether it is for spectrum monitor-ing, RF and microwave measurements, Interfer-ence hunting, EMC testing or Wi-Fi and wireless network measurements, the SPECTRAN® V6 X is the ideal spectrum analyzer for making reliable and fast measurements.

A weight of just 850 g makes the V6 X ideal for measurements in the field,yet it can also be used in the lab. The included PC analysis software RTSA-Suite PRO transforms the V6 X into a fully-fea-tured benchtop spectrum analyzer. The V6 X offers a solution for almost every application.

 Aaronia AG SPECTRAN V6 USB Real Time Spectrum Analyzer Data Sheet

SPECTRAN V5 Hand-held Spectrum Analyzer

World’s first REAL-TIME Hand-held Spectrum Analyzer!
175MHz RTBW, Vector-Generator, 40GHz Oscilloscope, TFT Touchscreen, only 850 Grams, PC-Software…

 Aaronia AG SPECTRAN V5 Hand-held Spectrum Analyzer Data Sheet

SPECTRAN V5 DESKTOP USB Spectrum Analyzer

Desktop Version of the V5 – USB Remote Control via «RTSA Suite» PC-Software. Fan less cooling, optional Battery, Unlimited Recording and Real-Time Streaming…



 Aaronia AG SPECTRAN V5 DESKTOP USB Spectrum Analyzer Data Sheet



SPECTRAN V5 OEM Spectrum Analyzer

OEM Version of the V5 with Smallest Form Factor for Custom System Integration. Runs on 5V or Internal Battery, includes a powerful API and our PC Software…

SPECTRAN V5 19″

 Aaronia AG SPECTRAN V5 OEM Spectrum Analyzer Data Sheet

REMOTE 19″ Remote Controlled 19 inch Spectrum Analyzer

19-inch Rack Version of the V5. Only 1U height. Passive fan less cooling, Integrated PC with up to 16TB SSD. Includes Remote Recording and Streaming Software…

 Aaronia AG REMOTE 19″ Remote Controlled 19 inch Spectrum Analyze Data Sheet

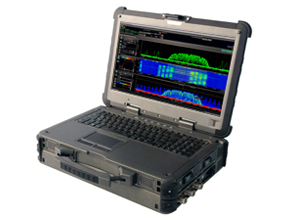

SPECTRAN V5 XFR PRO Spectrum Analyzer

ULTRA Robust Spectrum Analyzer for use under extreme conditions! Unrivaled Hardware Power, tested to Military Standards, super bright Touchscreen, up to 4TB SSD…

 Aaronia AG SPECTRAN V5 XFR PRO Spectrum Analyzer Data Sheet



SPECTRAN V5 COMMAND CENTER Spectrum Analyzer

The most powerful Version of the V5! Overcomes any Measurement Challenge! Highly portable with Triple UHD-screen, 40 TB SSD and Multi-Analyzer Support…

 Aaronia AG SPECTRAN V5 COMMAND CENTER Spectrum Analyzer Data Sheet

• SPECTRAN V4 Hand-held

Our latest V4 generation offers a vastly enhanced feature set with significantly faster sample time, more dynamic range, better IP3, reduced phase noise, greater demodulation bandwidth and improved LCD display compared to the previous V3 series. The V4 flagship HF-60100 V4 is suitable for Pre-Compliance and EMC/EMI tests.

Features

•  • Exposure limit calculation and display according to DIN/VDE 0848

•  • Up to 100x faster sample time than V3 units

•  • Up to 80dB higher sensitivity than V3 units

•  • 14Bit Dual-ADC

•  • DDC Hardware-Filter

•  • 150 MIPS DSP (CPU)

•  • Simultaneously displays frequency and signal strength

•  • DECT & TimeSlot Analyzer

•  • Advanced HOLD Function

•  • Inc. LogPer EMC Antenna HyperLOG

•  • Free MacOS, Linux and Windows software

 Aaronia AG SPECTRAN V4 HAND-HELD DATA SHEET

 Aaronia AG SPECTRAN V4 HAND-HELD MANUAL

EMC Sweep Spectrum Analyzers

SPECTRAN NF-5030 Spectrum Analyzer

Our EMC spectrum analyzer flagship. Suitable for Pre-Compliance and EMC/EMI tests up to 30MHz. Wide range of additional options to optimize the analyzer functionality.

 Aaronia AG SPECTRAN NF-5030 Spectrum Analyzer Data Sheet



SPECTRAN NF-5030 S

High Power version of the NF-5030. Suitable for Pre-Compliance and EMC/EMI tests up to 30MHz. Wide range of additional options to optimize the analyzer functionality. Full measurement range for DIN/VDE 0848 (Occupational).

 Aaronia AG SPECTRAN NF-5030 S Spectrum Analyzer Data Sheet



Remote Sweep Spectrum Analyzers (19 inch Rack Mounted)

SPECTRAN HF RSA 6000

Our remote controlled EMF Monitor for the professional user up to 6GHz incl. real-time remote analyzer software for MAC-OS, Linux, Windows.

 Aaronia AG SPECTRAN HF RSA 6000 Remote Sweep Spectrum Analyzer Data Sheet

SPECTRAN HF RSA 9000 Remote Sweep Spectrum Analyzer

Perfect for RF spectrum monitoring. The 9.4GHz RF Monitor for the «pro» at an incredible price incl. real-time USB/LAN/WLAN Analyzer-Software for MAC-OS, Linux, Windows.

 Aaronia AG SPECTRAN HF RSA 9000 Remote Sweep Spectrum Analyzer Data Sheet

SPECTRAN NF RSA 5000 Remote Sweep Spectrum Analyzer

Our low frequency USB/Ethernet emf monitor flagship from 1Hz up to 30MHz. Best screening against interferences incl. real-time Analyzer-Software for MAC-OS, Linux, Windows.

 Aaronia AG SPECTRAN NF RSA 5000 Remote Sweep Spectrum Analyzer Data Sheet

Rugged Outdoor Sweep Spectrum Analyzers (Military Standard)

SPECTRAN HF-XFR PRO

ULTRA robust spectrum analyzer for use under extreme conditions. Unrivaled Hardware Power. Tested to military standards. Extremely wide frequency range of max. 9 kHz to 9.4

 Aaronia AG SPECTRAN HF-XFR PRO Spectrum Analyzer Data Sheet



SPECTRAN NF-XFR PRO

ULTRA robust spectrum analyzer for use under extreme conditions. Unrivaled Hardware Power. Tested to military standards. Extremely wide frequency range of 1Hz to 20MHz (opt. 30MHz).



 Aaronia AG SPECTRAN NF-XFR PRO Spectrum Analyzer Data Sheet
