DIAMOND ENGINEERING - DAMS ANTENNA MEASUREMENT STUDIO

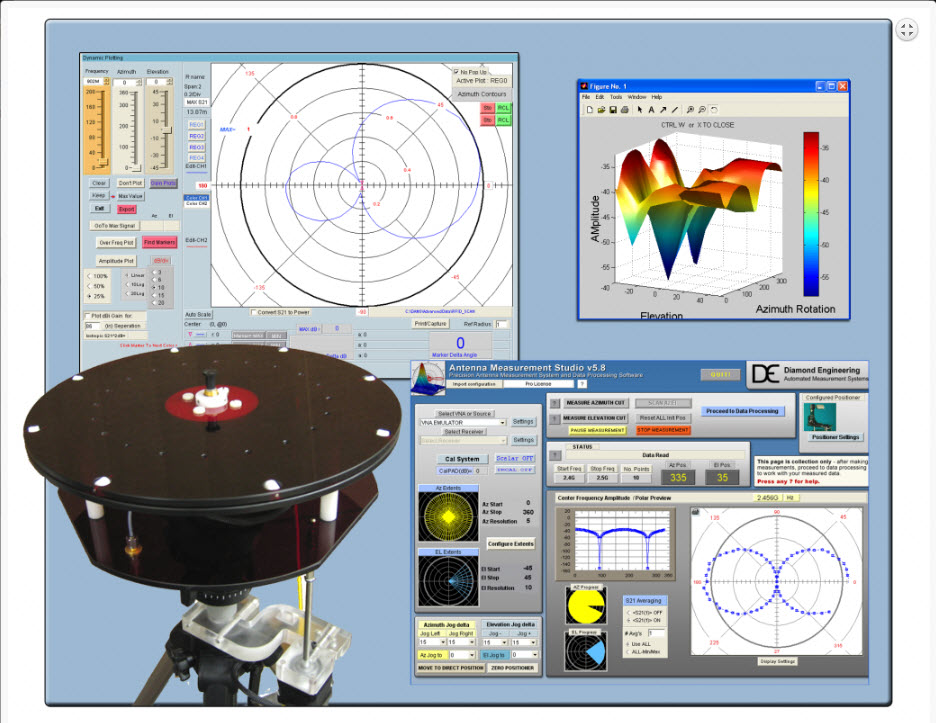

DAMS Antenna Measurement Studio Software
The DAMS Antenna Measurement Studio is the culmination of over 10 years of development. It’s designed to be user-friendly and packed with numerous helpful modules. Not only will it allow you to collect your data and characterize your antenna, it also features broad test equipment support, time-saving automation capabilities, 2D- and 3D-plotting and dozens of ways to examine and manipulate your data.
Key Features:
-
Broad test equipment support
-
Remote platform control
-
Data storage registers
-
Import & export capabilities
-
Nyquist sampling
-
Matlab compatible
Data Processing & Visualization
-
Dual-Trace Plots
-
Pathloss Calculators
-
Full 3D & Spherical Plotting
-
Measurement Monitor Plots
-
Import Reference Antennas
-
Source Measurement Features
-
Gain Calculation
-
Link Commander
-
Efficiency
-
•Radar Cross-section Profiling
-
2D & 3D AZ-EL-F Plotting
-
Beam Width vs Frequency
-
…and more!
Platform Movement
Control Interface: | USB/serial via DAMS controller |
Available Adjustments: | Platform type |
Speed | |
Acceleration rate | |
Communication settings |
Data Collection
Methods: | Network analyzer |
Spectrum analyzer | |
Power meter | |
Voltmeter | |
Measurement Monitors: | Log Magnitude |
Polar Azimuth | |
Real-time Gain |
Data Calculation Modules
Gain Calculation: | Linear Gain |
Circular Gain | |
Gain Transfer | |
Gain Substitution | |
3-Point Gain | |
Efficiency Calculation: | Antenna Efficiency |
Antenna Efficiency w/ AUT Losses | |
Path-Loss Calculation: | General Path-Loss Calculation |
Gradient Path Distance Calculator | |
S21group Delay / Distance | |
Constant Gain or Loss | |
Reference Antenna Import: | Tab delimited ASCII format (TXT) |
S1P format |
Data Visualization
Polar Plots: | Azimuth |
Elevation | |
Full Elevation Cuts | |
Beamwidth | |
GNUplot Polar | |
Smith Chart Overlay | |
Contour Export Support | |
Dynamic Polar Plot | |
2D (XY) Plots: | Amplitude Over Frequency(s) |
Az/El over Amplitude | |
Group Delay | |
Beamwidth vs. Frequency | |
GNUplot Amplitude | |
3D Plots: | Azimuth |
Elevation | |
Azimuth/Elevation | |
Spherical | |
Azimuth vs. Frequency vs. Amplitude | |
Azimuth vs. Elevation vs. Amplitude |
Data Manipulation Features
-
-
-
-
-
- Standard Register Calculator
- Array Calculator
- Link Commander
- Measurement Corrections
-
-
-
-
Import & Export Features
Supported Data Formats: | XLS (Excel) |
TXT (ASCII) | |
S1P | |
DAMS formats |
