LUMILOOP LSFPROBE 1.2 3D E-FIELD PROBE

LUMILOOP LSPROBE 1.2 – 10Hz~8.2GHz 3D E-Field Probe

Description:

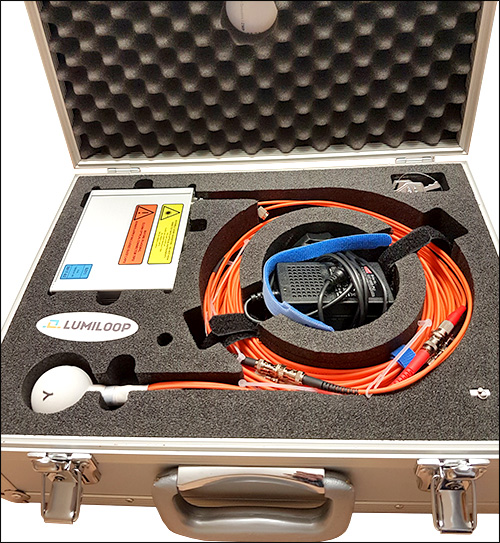

The miniaturized 6 GHz 3D E-Field Analyzer LSProbe ensures unattended, uninterrupted measurements combined with high resolution, high speed and low noise over the entire test period. With the galvanically insulated power supply, the need for batteries is now eliminated.
The field probe does not only measure average values but the time course of fields.
With an unprecedented wide dynamic range and fast pulse response, LSProbe provides the user completely new measuring options. The LSProbe enables a higher efficiency through shorter and lower-cost testing intervals.

Features:
Frequency range from 10 kHz – 6 GHz
Fastest sampling rate (pulse measurement)
Highest precision (resolution and linearity)
Widest dynamic response for entire frequency range
Rugged, eye-safe optical system
No warm-up wait – immediate measurement
User-centered terms of warranty and service

Automated EMC Test Software Solutions

· Driver available for:

· Rohde & Schwarz – EMC32 – Version 10.0
· Nexio – BAT-EMC
· Dare!! – RadiMation
· Teseq – WIN 6000
· Techno Science Japan – TEPTO

Applications for LSProbe 1.2

• Fast sweep measurements

➢ IEC 61000-4-3 Immunity to radiated radio-frequency fields

• Radar pulse measurements

➢ Ford Component EMC Specifications FMC1278

• Use of multi-probe systems

➢ ISO 11451-2 Road vehicles – Vehicle test methods, Part 2 – Off-vehicle radiation sources

➔ Vertical reference line with 4 field probe positions

➢ IEC 61000-4-21 Reverberation chamber test methods

➔ 8 field probe positions at corner points of testing volume

Please see the following presentation for details on how to utilize the LUMILOOP LSProbe 1.2 for each of the applications presented above.
LUMILOOP Application of Fast Laser Powered Electric-Field Probe Presentation

Option:

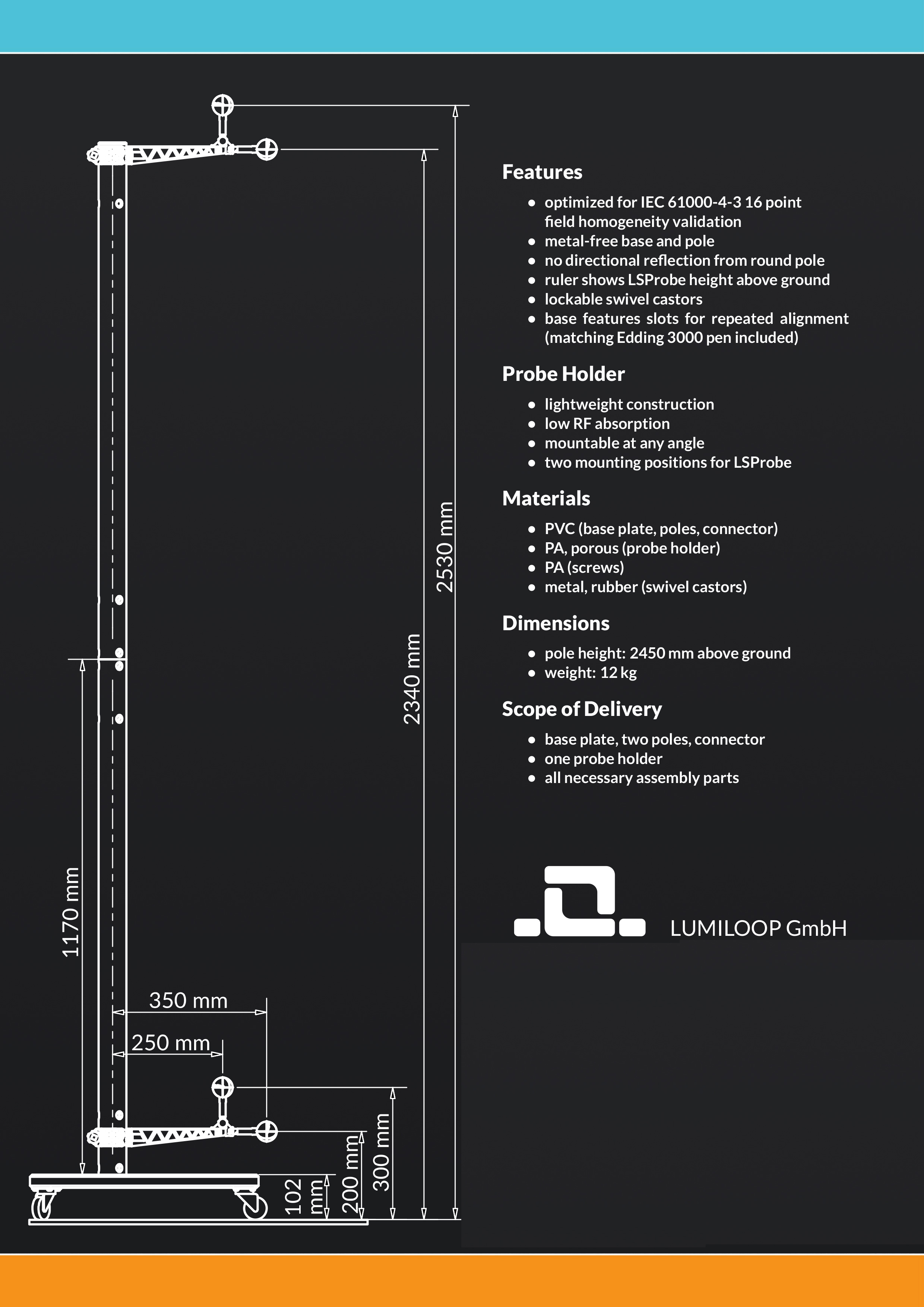

LSPROBE Floor Probe Stand

LUMILOOP LSPROBE Floor Probe Stand

Fiber Connector Cleaning Kit

In order to simplify fiber inspection and cleaning LUMILOOP has introduced a Fiber Connector Cleaning Kit . This cleaning kit contains all of the tools required for reliable and easy-to-use fiber connector maintenance (includes a fiber microscope). Our new application note includes a complete set of instructions on using the Fiber Connector Cleaning Kit .

LUMILOOP Application Note 4 Reliable Operation of LSProbe 1.2 Laser Powered Electric Field Probes
