DANA-AC/DC Power Sources - MPS Series

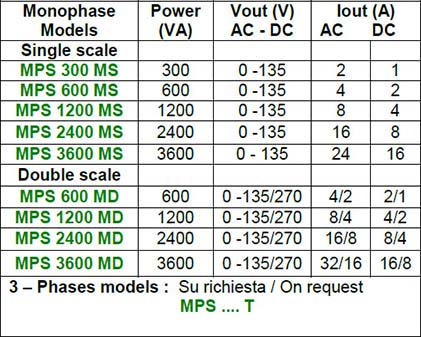

TECHNICAL FEATURES
- Mains Input
115 or 230 or 400 Vac ± 10% 50-60 Hz - Line regulation
better than 50 ppm of output V max for the allowed input variation, both as AC Generator and as DC Power Supply - Output Voltage
adjustable from “0” to max selected rated V (AC or DC) with a 10 turn potentiometer - Load regulation for constant V
from no load to full load better than 130mV/A - Output Current
adjustable with a 10 turn potentiometer from “0” to max selected rated I - Stability
after 20 minutes of preheating, better than 2 mV/°C for 24 hours at 25 °C ambient
Temperature coefficient
under 50 ppm/°C in “voltage mode”;
under 100 ppm/°C in “current mode”
Ambient temperature
work 0÷40°C
storage -10÷50°C - Cooling
forced air
Remote programming and feed-back (GPAC)
Opto-insulated analog voltages 0÷10Vdc Linearity better than 0,3 %
– Drift better than 1,5 mV/°C - OT
Protection of over-temperature of power stages; when it is enabled, the power supply goes on stand-by mode and then displayed on LCD - OL
Set to 130% of max current with delay of 500 ms.
When it is enabled, the power supply goes on stand-by mode that displayed on LCD - Short Circuit Protection
In all frequencies, the output is electrically protected from short circuits either with “DC” programming output or with “AC” programming output
TECHNICAL FEATURES AC OUTPUT
Output Frequency
The power supply is provided of 3 internally generated frequencies of 50 – 60 – 400 Hz selectable through a push button and adjustable in ± 5% for the frequency limit reachable through a multi-turn trimmer that is located under the push button of selection. The power supply in amplifier mode can work with sinusoidal frequency up to 10 kHz to carry out arbitrary voltage profiles through the reaction time to remote programming, better than 8 V/µs
Frequency stability
better than ± 0,1%
Frequency distortion
Measured in voltage mode and in all frequencies (up to 10 kHz) better than 0,5 %
TECHNICAL FEATURES DC OUTPUT
Reaction to remote programming
better than 8 V/µs
Recovery time
better than 200 ms within ± 0,2% of set voltage from no load to full load
Ripple and noise
measured in V mode, better than 0,02% of the voltage rated
FRONT PANEL CONTROLS
Power
Breaker switching the equipment ON and OFF
Ground
Groundplug
F. S.
Switch that allow to change the output full scale from 50 up to 100% (only for double scale “MD” models)
Voltage
10 turns potentiometer that allows to change the output voltage
Frequency
Push button allowing to change the output frequency from 0 Hz (DC) up to 50 – 60 – 400 Hz
Current
10 turns Potentiometer allowing to change the output current
AC – DC
Led that point out the type of output current
+/L -/N
+ / – uscita in continua
L fase uscita AC
N neutro (polo freddo) AC
LCD
Graphical Display 240 x 64 pixel that point out set points when power supply is in stand-by mode, the output values when the power supply is on and the temperature of power state
ON
Push button allowing to keep the power supply in stand- by mode or enable the output only when requested
MODE/LCD
Push button allowing to change the presentation value from numeric mode in analogical graphical mode on LCD display
A – F – V – ON
Push buttons allowing of programming the use mode of the power supply (local mode and remote mode)
Prog/Mode
Push button that allows to program the remote mode of control that you need and LEDs to show selected choose
OUT
BNC Connector with output ±10 V, to show the output
voltage with ratio 38 : 1
BACK-PANEL CONTROLS
GPAC
“General Purpose Analog Control” connector to program remotely the Power Source with 0 ÷ 10 Vdc analog optically isolated voltage for all remote functions and to read proportional to Voltage and
Current feed-back and to enable
RS232/USB (option)
Connectors for digital programmingBNC connectors
Connectors for analog programming+/L -/N
Output plugs di uscita

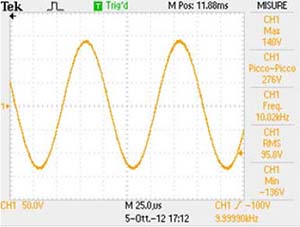

Fig. 1 Vpp : 276 – Vrms: 95.8 – Fr: 10kHz

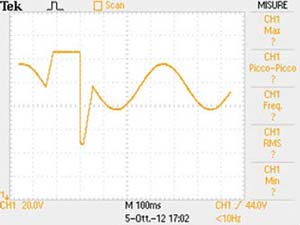

Fig. 2 Arbitrary graph: 20 V/div – 100 ms/div

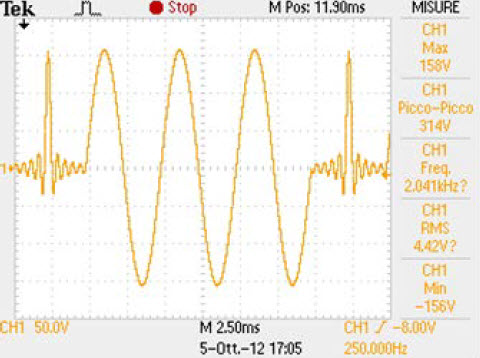

Fig. 3 Vpp: 314 – Fr: 400 Hz – 2.5 ms/div

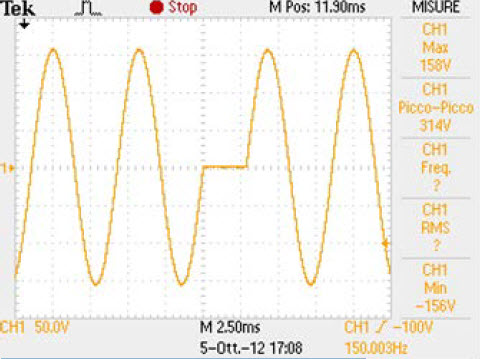

Fig.4 Vpp: 314 – Fr: 400 Hz – 2.5 ms/div

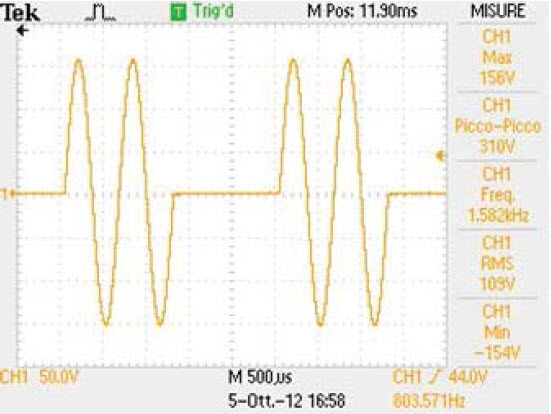

Fig. 5 Vpp: 310 – Fr: 2 kHz – 500 μs/div
