DANA-Linear 1000 VDC Linear Power Supply - DAX-1000
Linear Power Supplies
DAX 1.000 VDC linear power supply
GENERAL FEATURES
The DAX 1.000 Power Supply. stand out for its special attention to the project details that aims to ensure high performance without neglect the final user safety. The DAX 1.000 Power Supply is available up to 25kW!

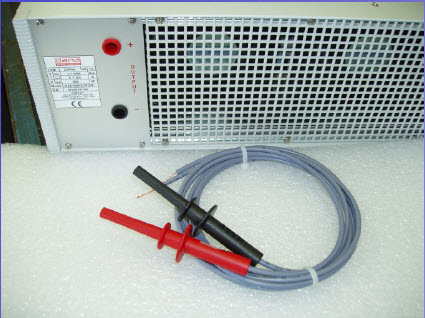

High Voltage Safety Banans for Power
Supplies up to 5 A
TECHNICAL DATA EXAMPLE
Output Voltage |
from 0 to 1.000 Vdc |
Output Current |
From 0 to 25 A |
Reaction to remote programming (slew rate) |
Better than 1 V/µs |
Ripple and noise |
Measured in V mode, under 30 ppm (rms) |
Other service |
Remote programming and feedback opto-insulated (0-10 Vdc) Over Temperature Alarm through logic signal |
All DANA Power Supplies come with a standard 3 Year Warranty!
