DANA-Linear Electronic Loads 0 Volt – DSOT Series
0 VOLTS DSOT SERIES TECHNICAL FEATURES
Mains Input
115 or 230 Vac ±10% 50-60 Hz
Current – Resistance – Power – Voltage
adjustable from “0” to max rated value
Regulation for constant I
better than 100 ppm
Regulation for constant R
better than 100 ppm
Regulation for constant P
better than 100 ppm
Regulation for constant V
better than 50 ppm
Reaction Time
better than 1 V / µs and 8 A / µs
Remote programming and feed-back (GPAC)
Opto-insulated analog signal 0-10Vdc
Linearity better than 0.3% Drift better than 1.5mV/°C
Stability
Better than 50 ppm over 24 h at 25°C, after 20 minutes warm up
Temperature coefficient
better than 50 ppm/°C
Ambient temperature
work 0÷40°C
storage -10÷50°C
Cooling
forced ventilation
DANA DSOT Series Linear Electronic Load 0 Volt Front Panel
FRONT PANEL CONTROLS
Power
switches ON and OFF the device
Stand-by
switch that enables the device to carry out the functions which are armed.
Function
V – R – A – P slide switches to enable the device to carry out the select functions ( functions V and P are optional).
GPAC – GPIB / RS
slide switches to select the interface used for remote programming. GPAC, analog programming between 0 – 10 Vdc and feedback 0 – 10 Vdc. GPIB (option), programming by an interface IEEE488 –
RS232/485.
Remote controls
V – R – A – P slide switches to set programming mode of functions in local o remote mode.
Check
push button to setting the functions when the device is in stand-by, suitable also with remote programming.
GND
ground connector
+/-
input plugs available also on back panel.
Section Vin (optional)
10 turns potentiometer to calibrate the input chosen work voltage. Voltage input digital display (with accuracy ±1,5%)
Section R
10 turns potentiometer to calibrate the chosen work resistance. Work resistance digital display (with accuracy ±1,5%)
Section A
10 turns potentiometer to calibrate the input chosen work current. Work current digital display (with accuracy ±1,5%)
Section P (optional)
10 turns potentiometer to calibrate max input chosen work power. Work power digital display (with accuracy ±1,5%)
APP
alarm LED of inversion polarity of power cables with immediately inhibits of device.
OVP
alarm LED that indicates the overcoming of maximum voltage work admitted on input.
Its intervention inhibits the device.
OT
alarm LED for over temperature on the power section, its intervention inhibit the device
BACK PANEL CONTROLS
GPAC
“General Purpose Analogical Control” connector to be used to control electronic load adjustments with 0 – 10
Vdc analog voltage for all remote functions and to read all functions feed-back
GPIB/RS (option)
Connectors to program interface IEEE488 and RS232/485
+/-
input plugs available also on the front panel
OPTIONS
PS
interface to program electronic load with standard IEEE488/RS232
PW
interface to program electronic load with standard IEEE488/RS485
V
option in order to work the load also in “constant voltage” mode
P
option in order to work the load also in “constant power” mode

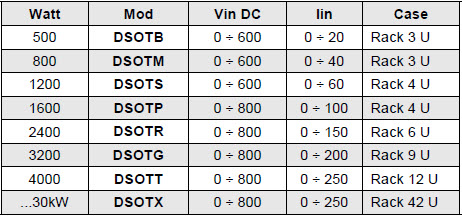

DANA DSOT Series Linear Electronic Load 0 Volt Model Description Chart
The models in the table are available with voltage and input current on customer request
ASSOCIATED DOWNLOADS
DANA DSOT Series 0 Volt Linear Electronic Load
