DANA-Linear AC/DC Bipolar Opposite 2-Quadrant Power Supplies
The D2AC AC/DC Bipolar Opposite 2-Quadrant Power Supplies come with 2 opposite quadrants to provide the output current with a reverse pole. This is Indispensable in some galvanic or chemical
processes that requiring a cyclic pole reversing bias of process electrodes in order to avoid the problems by contacts maintenance that performing the mechanical pole inversion.
- In DC motor tests in order to invert the rotation way in absent of sparkle due to an electromechanical switch.
- In DC electric motor management that it should be
control the c.c.w. / c.w spin.

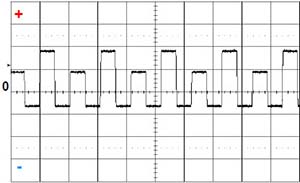

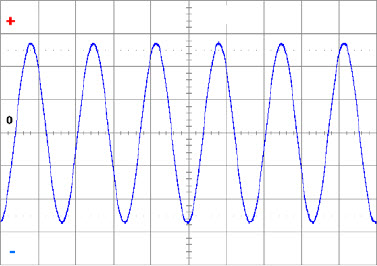

DANA D2AC Example of Use
TECHNICAL FEATURES
DANA produce 2 models with these technical features
Voltage Generator: D2AC
Current Generator: D2ACC
This models have the same features of 2 referring family
(DA pp. 5-6-7 e DAC pp. 29-30-31).
Power available: up to 40kW
Voltage available: up to ± 800 Vdc
Current available: up to ± 2.000A

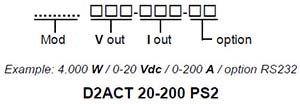

Order Example
