    GTEM 2100 K GTEM Cell from GTEM Italia

    For emission and immunity testing according to IEC/EN 61000-4-20
    GTEM 2100 K GTEM Cell from GTEM Italia

    The GTEM-2100 K is a TEM waveguide with the upper frequency limit extended to the GHz range. It is under consideration as an alternative measurement facility for both radiated emission and immunity measurements. It is included in the standard IEC 61000-4-20 “Emission and Immunity Testing in Transverse Electromagnetic (TEM) Waveguides”.

    The GTEM 2100 K is the same as the GTEM 2000, but with trunk pyramidal absorbers)

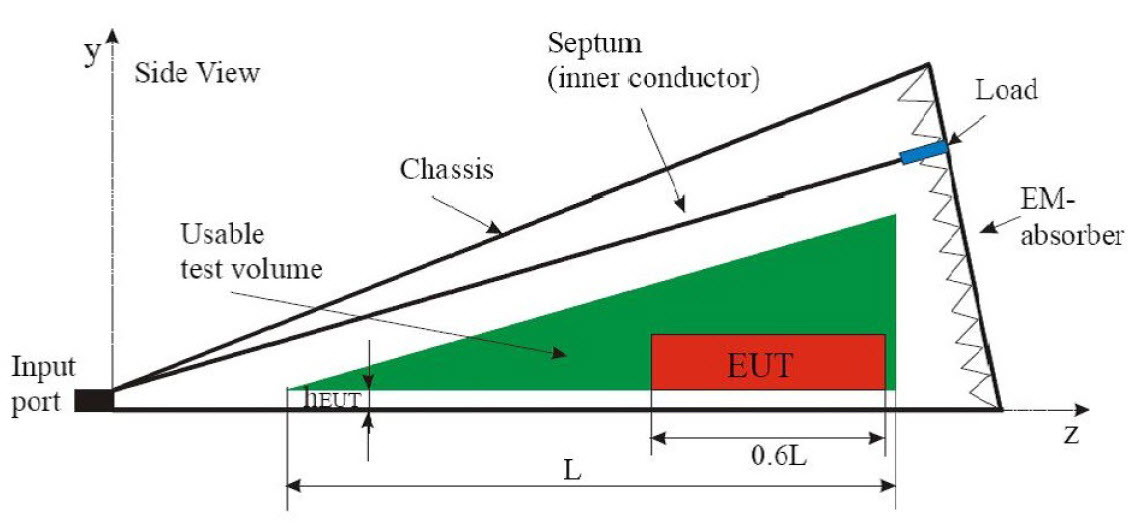

    GTEM ITALIA GTEM 2100 K EUT Size and Placement Image

    The GTEM 2100 K ships in a Kit and requires assembly on-site.


    Main Technical Specifications / Max EUT Size

    Frequency range

    For emissions:

    9KHz – 3 GHz,

    For immunity applications:

    80MHz – 6GHz *

    DC-20GHz optional

    Septum Height [mm]:


    Max EUT Size (LxWxH)cm


    Defined test Vol. within 6dB


    Typical VSWR


    (for immunity test range)

    Typical VSWR at critical frequency


    (for immunity test range)

    Max Input power, W continuous/*pulsed

    1,5 kW/2.5 kW

    Input connector

    7/16“ or N UG-21

    Nominal impedance

    50 Ohm


    55cm/21,6” Truncated pyramid


    Mechanical Dimensions

    Outer LxWxH [cm]:

    933 x 480,5 x 306cm + 25cm Trolley

    Door WxH [cm]:

    1Standard: 100 x 160cm * Optional: 160x160cm

    Window in the door

    * Optional: circular Diam.200mm.

    Weight Kg. Approx

    Approx. 2000kg

    Wheeled undercarriage

    25cm high. No. 16


    Electrical Specifications

    Mains connectors


    Main Switch

    magneto-thermal 16A mono phase

    Input Socket plug

    16 AC IEC Type ( mono phase + ground)

    Output Socket EUT tape

    16 AC SHUCO type (mono phase + ground)

    Additional EUT sockets


    Ground connection

    M6 bolt,(it is required to be always connected)

    EMI AC Line filter (mono phase + ground)

    16A 250V n.2 terminals +ground

    EMI AC/DC secondary filter

    10A 250V AC/DC N.2 terminals

    Channel for fiber optic leads

    3 couples (18GHz Cut-off frequency)

    RF feed-thru connector

    N.1 N-N female

    RF feed-thru SMA type connectors

    N.2 SMA-SMA female

    Technical panel pre-drilled for options





    Midia filter unit

    *Optional: N.1 RJ45, N.1 DB9-RS232, N.2 USB-2, N.1
    DC filter.

    Video camera system

    * Optional

    Indoor lighting

    10W LED

    Manipulator X,Y,Z

    Motorized USB, Manual, Remote controlled
