GTEM CELL 2500 K FROM GTEM ITALIA

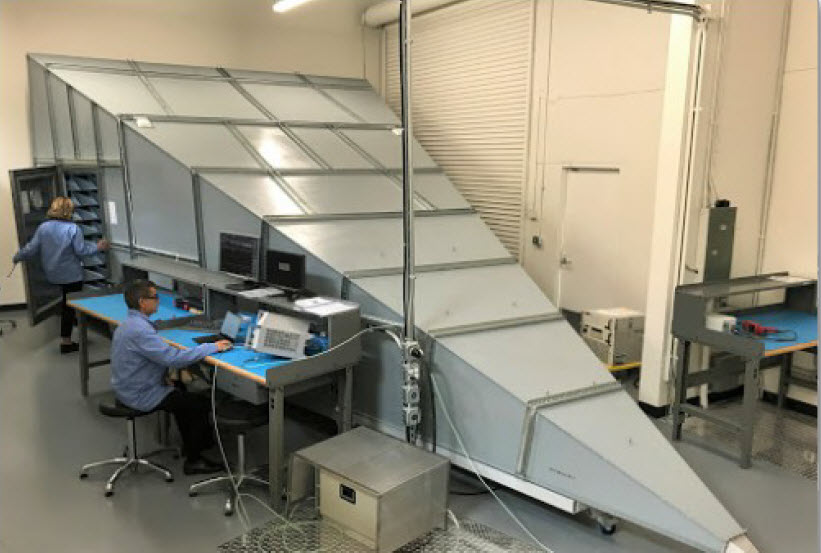

GTEM 2500 K GTEM Cell from GTEM Italia
For emission and immunity testing according to IEC/EN 61000-4-20
The GTEM-2500 is a TEM waveguide with the upper frequency limit extended to the GHz range. It is under consideration as an alternative measurement facility for both radiated emission and immunity measurements. It is included in the standard IEC 61000-4-20 “Emission and Immunity Testing in Transverse Electromagnetic (TEM) Waveguides”.
The GTEM 2500 K ships in a Kit and requires assembly on-site.

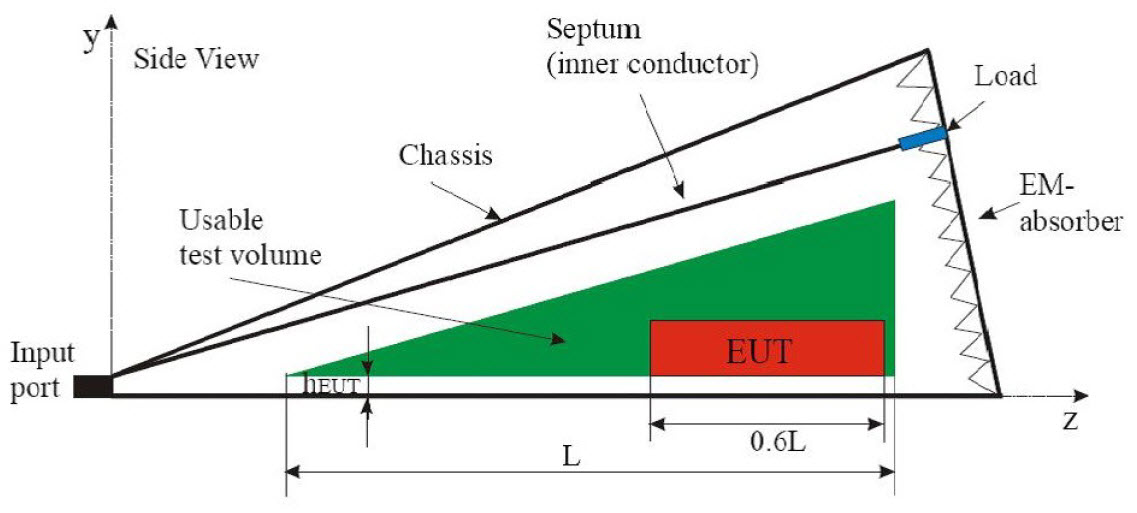

Main Technical Specifications / Max EUT Size
| Frequency range | For emissions: 9KHz – 3 GHz, For immunity applications: 80MHz – 6GHz * DC-20GHz optional |
| Septum Height [mm]: | 2500mm |
| Max EUT Size (LxWxH)cm | 180x160x100cm |
| Defined test Vol. within 6dB | 84x84x84cm |
| Typical VSWR | 1:1.2 (for immunity test range) |
| Typical VSWR at critical frequency | <1:1.6 (for immunity test range) |
| Max Input power, W continuous/*pulsed | 1,5 kW/2.5 kW |
| Input connector | 7/16“ or N UG-21 |
| Nominal impedance | 50 Ohm |
| Window in the door | Diam. 200 mm. |
| Empty Technical panel | N.2 Diam.200 mm. |
| Absorbers | 65cm/25” Pyramidal |
Mechanical Dimensions
| Outer LxWxH [cm]: | 1100x 566x 361cm + 25cm Trolley |
| Door WxH [cm]: | Standard: 100 x 160cm * Optional: 160x160cm |
| Weight Kg. Approx | Approx. 2800kg |
| Wheeled undercarriage | 25cm high |
Electrical Specifications
| Mains connectors | Fix/CEE |
| Main Switch | magneto-thermal 16A mono phase |
| Input Socket plug | 16 AC IEC Type ( mono phase + ground) |
| Output Socket EUT tape | 16 AC SHUCO type (mono phase + ground) |
| Additional EUT sockets | Optional |
| Ground connection | M6 bolt,(it is required to be always connected) |
| EMI AC Line filter (mono phase + ground) | 16A 250V n.2 terminals +ground |
| EMI AC/DC secondary filter | 10A 250V AC/DC N.2 terminals |
| Channel for fiber optic leads | 3 couples (18GHz Cut-off frequency) |
| RF feed-thru connector | N.1 N-N female |
| RF feed-thru SMA type connectors | N.2 SMA-SMA female |
| Technical panel pre-drilled for options | supplied |
Options
|
Midia filter unit |
*Optional: N.1 RJ45, N.1 DB9-RS232, N.2 USB-2, N.1 DC filter. |
| Video camera system | * Optional |
| Indoor lighting | 10W LED |
| Manipulator X,Y,Z | Motorized USB, Manual, Remote controlled |
