AFJ-Disturbance Analyzer Pulse Generator

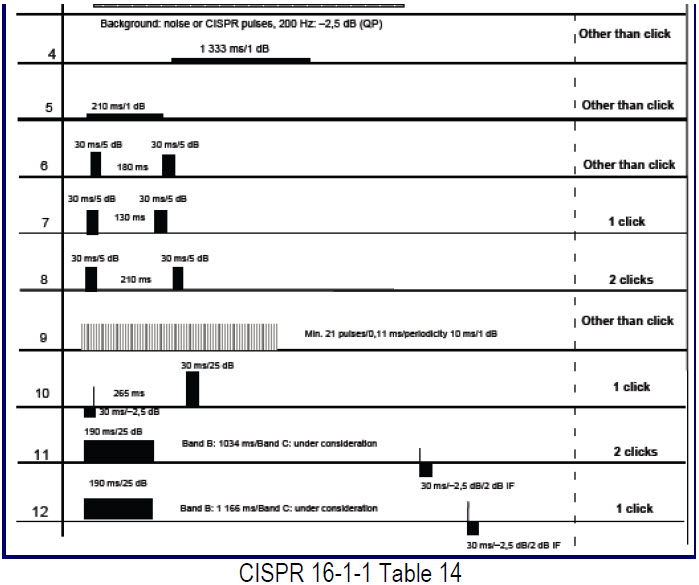

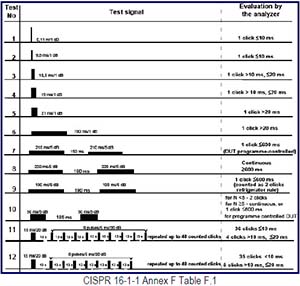

The AFJ PG5502 Disturbance Analyzer Pulse generator has been designed and manufactured for checking with standard impulses according to CISPR 16-1-1 Table 14 and CISPR 16-1-1 Annex F Table F.1 or CUSTOM impulses defined by the user the functionality of any brand click meter or analyzer full compliance to CISPR 16-1-1 and used for click measurements according to CISPR 14-1.

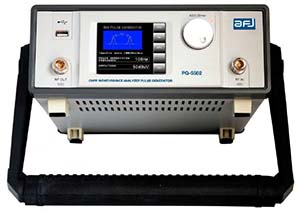

AFJ PG5502 Pulse Generator
The PG5502 can be used also like a CW Generator.
The PG5502 can be used in stand alone mode or remotely controlled by software through the PC.
Technical Specification – CISPR16-1-1 Full Compliance Pulse Generator
Duration of the pulses: 110 s÷1.3s (Accuracy ±3%)
Rise Time of the pulses: <1 s
Click analyzer test level: 60dB V
RF Level: 30÷112dB V
Frequency range: 150kHz÷30MHz
Frequency precision: <30×10-6
Impedance: 50Ohm
Power Supply: AC 230V/50Hz 115V/60Hz
