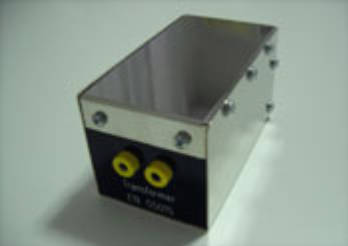

AFJ BALANCE-TO-UNBALANCE TRANSFORMER
The AFJ Instruments Balance-to-unbalance Transformer (BUT) is designed and built in accordance with CISPR 15, for measurements of radio frequency disturbance in the range of 150KHz?1605KHz for lighting equipment.
It is especially designed for insertion loss measurement of luminaries connected to electrical supplies feeding residential load in the voltage range 100V/250V between phases or phase and earth, in a system using the AFJ LISN LS16C/10.
Small size with innovative case, BUT weight is less than 200g.
