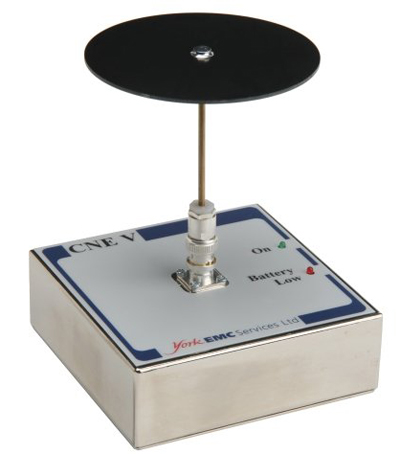

EUROFINS YORK - Comparison Noise Emitter - CNE V
A low cost solution for those needing a high quality noise source. The CNE V offers continuous radiated and conducted outputs up to 1GHz in a physically small package.
Continuous, broadband output. Full spectrum measurements and analysis.
Stable output with Repeatable measurements. Conducted and radiated output options.
Evaluation of both conducted and radiated systems 9 kHz to 1 GHz output. Applications across a broad frequency spectrum.
Compact and Portable. Comparisons between sites and environments.
Battery powered. No power or interconnecting cable effects on measurements.
Low Cost. Affordable confidence in measurement system results
Radiated Emissions
The CNE V is a broadband noise source which provides continuous output power from 9kHz to 1GHz.
The broadband nature of the output enables the observation of details within the spectrum which would be missed with a comb generator.
For radiated operation two monopole antennas, optimized for different bands of the spectrum, are available which attach to the top of the unit.
The CNE V is an ideal source for carrying out checks on open area test sites (OATS) and anechoic chambers.
The CNE V is battery powered to allow operation as an electrically small source which minimizes the effect of the structure of the CNE V itself when characterizing the electromagnetic environment.
The CNE V is housed in a metal box so that it can be mounted in direct contact with a metal ground plane as may be required by some tests.
The power output level of the unit avoids the overloads possible with impulsive noise sources which may cause damage to the sensitive input circuits of receiving equipment.
Conducted Emissions
In the same way that using the CNE V with an antenna can be used to check radiated measurement systems, a BNC connector provides a direct 50Ω matched output which can be used to carry out checks on conducted measurement systems.
An adapter is available (LSA02) which provides a capacitive link from the output of the CNE to a standard IEC 320 mains power connector.
This allows checks and investigations on conducted measurement systems to be made, for example using a LISN or an absorbing clamp.
Applications
Comparisons between different measurement environments such as OATS or anechoic chambers
Radiated and conducted measurement systems validation and verification.
-
Reference source for:
Daily pre-test checks as required by the accreditation authorities, eg ISO17025.
Long-term performance monitoring Cable position investigation.
Investigation of screened room behavior.
Characterization of filter performance.
Cable loss measurements.
Spectrum analyzer / receiver pre-check
Specifications
Specifications Frequency Range
Direct connection 9kHz to 1GHz into a 50Ω system
Radiated 30MHz to 1GHz, using TLM01 and TLM02 antennas
Output connector 50Ω BNC socket
Temperature stability 15°C to 30°C <±1dB 9 kHz to 1GHz 5°C to 40°C <±2dB 9 kHz to 1GHz
Time stability Typically <1dB over a 12 month period
Dimensions 120mm × 120mm × 41mm excluding antenna Weight 0.53kg (excluding battery)
Power supply 1 × 9V battery (PP3 or equivalent). Alkaline or rechargeable
Operating time 5 hours typical with alkaline cells
Indicators
Green LED Power on
Red LED Battery low
Parts Included
CNEVKIT01
Standard CNE V comparison continuous noise emitter kit with antenna CNE V noise source
TLM01 – 200MHz to 1GHz (optimum) 100mm long top-loaded monopole antenna
Alkaline battery
Hard case
CAL03 standard test results
CNEVKIT02
Enhanced CNE V comparison noise emitter kit with multiple antennas and LISN adapter
CNE V noise source
TLM01 – 200MHz to 1GHz (optimum) 100mm long top-loaded monopole antenna
TLM02 – 30MHz to 300MHz (optimum) 290mm long top-loaded monopole antenna
LSA02 – LISN adapter with IEC-style connection
Alkaline battery
Hard case
CAL03 standard test results
Accessories
Accessory Part Nº Description
Antenna TLM01 200MHz to 1GHz (optimum) 100mm long top-loaded monopole
TLM02 30MHz to 300MHz (optimum) 290mm long top-loaded monopole Direct coupler
LSA02 LISN adapter with IEC-style connection
CAL03 0 to 1GHz power measurement using spectrum analyzer
Radiated Output
CAL02 30MHz to 1GHz horizontal and vertical polarization electric field-strength on OATS using receiver, either 3m or 10m
CAL06 30MHz to 1GHz horizontal and vertical polarization electric field-strength in FAR using a spectrum analyzer at 3m
