FRANKONIA - ACTC - Automotive Testing Chamber - AVTC

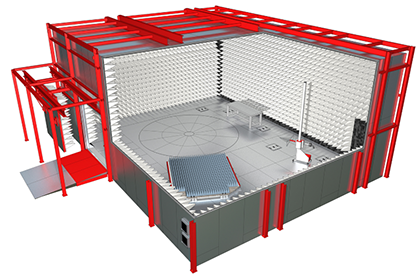

FRANKONIA AVTC – Automotive Vehicle Testing Chamber
| Overview | AVTC – Automotive Vehicle Testing Chamber |
| EMI | CISPR 16-1-4 and ANSI C63.4, full compliant CISPR 25 and CISPR 12, full compliant |
| EMS | IEC/EN 61000-4-3, full compliant |
| Test distance | up to 10,0m |
| Volume | Ø3,0m (typical) |
| Special | Hybrid or Pyramid Absorbers |
| ECE R10.5 | Full compliant at 3,0 m with dynamometer |
The AVTC is Frankonia’s automotive anechoic chamber solution at typical 3,0m measuring distance offering a Quiet Zone (QZ) of ø3,0m. It is adapted for radiated emissions and immunity tests on vehicles and components as well as for commercial product tests.
The AVTC-L is the extended version of Frankonia’s automotive anechoic chamber solution at 3,0m and 5,0m measuring distance offering a Quiet Zone (QZ) of ø3,0m. The AVTC-XL offer the integration of a normal range dynamometer.
Features
• Automotive component and vehicle tests together with commercial tests in a single solution
• Cost-effective and high-performance solution for a 3,0 m or 5,0 m measuring distance
• Floor-absorberboard for an efficient and fast modification of the test setup
• Upgradeable with EDTC components (load machine, BlueBox, battery test system)
Typical Product Standards
Emission
• CISPR 11
• CISPR 12
• CISPR 14
• CISPR 15
• CISPR 25
• CISPR 32
• MIL-STD 461
• ECE R10.5
Immunity
• IEC/EN 61000-4-3
• ISO 11451
• ISO 11452
• MIL-STD 461
• RS 101, RS102, RS103
• ECE R10.5
Typical Verification Standards
Emission
• CISPR 16-1-4 and/or ANSI C63.4
Immunity
• IEC/EN 61000-4-3
| Chamber Type |
AVTC |
AVTC-L |
AVTC-XL |
| External dimension |
11.480 x 9.380 x 6.000 mm (LxWxH) |
14.780 x 11.480 x 6.300 mm (LxWxH) |
16.280 x 12.680 x 6.300 mm (LxWxH) |
| Quiet Zone at 3,0 m |
ø3,0 m |
ø3,0 m |
ø3,0 m |
| Quiet Zone at 5,0 m |
n/a |
ø3,0 m |
ø5,0 m |
| Turntable |
ø5,0 m |
ø6,0 m |
Ø6,7 m dynamometer |
| Load capacity |
up to 30,0 tons; special turntable systems and dynamometer integration |
||
| Frequency range |
9 kHz/ 26 MHz to 18 GHz (option 40 GHz) |
||
Performance & Compliance
• Full compliant emission (EMI) according to CISPR 16-1-4 and ANSI C63.4
Deviation NSA ±3,5 dB (30 MHz to 1 GHz) – guaranteed
Deviation SVSWR +5,5 dB (1 GHz to 18 GHz) – guaranteed
• Full compliant immunity (EMS) according to IEC/EN 61000-4-3
Deviation FU 0 dB/+6 dB at 75 % of 16 measuring points (26/ 80 MHz to 18 GHz) – guaranteed
• Full compliant emission (EMI) according to CISPR 25 Ed.4 (ALSE verification acc. to the long-wire method recommended)
• Full compliant emission (EMI) according to CISPR 12 at 3,0 m
• Full compliant immunity (EMS) according to ISO 11452 and ISO 11451
• Perfectly meets ECE R10.5 with dynamometer integration
· 1 access door, 1.013 x 2.043 mm
· 1 sliding door, 3.038 x 3.093 mm
· 1 mains filter 440 VAC, 4 x 32 A
· 2 penetration panels
· Electric installation
· Feed throughs: 8 x “N”, 8 x “BNC” and 4 x fiber optics
· Illumination
· Raised floor
· Ground plane
· Turntable, 5.0 m diameter, 8.0 to
· Antenna Mast, 1-4 m
· Controller for mast and turntable
· Absorber lining
· 10 honey comb inserts for ventilation
Options
· Additional mains filters
· Signal and / or data line filters
· Non-combustible absorbers
· Measuring equipment
· Floor absorbers
· Video and / or audio system
