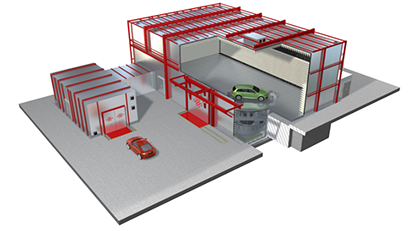

    Frankonia SAC-10V Semi Anechoic 10m EMC Chamber dedicated to Vehicle Tests per ECE R10

    Frankonia SAC-10V Semi Anechoic 10m EMC Chamber dedicated to Vehicle Tests per ECE R10



    Frankonia SAC-10V


    CISPR 16-1-4 and ANSI C63.4, full compliant

    CISPR 25 and CISPR 12, full compliant


    IEC/EN 61000-4-3, full compliant

    Test distance

    up to 10m


    e.g. ø6,0 m


    Hybrid or Pyramid Absorbers

    ECE R10.5

    Full compliant at 10,0 m with dynamometer


    The SAC-10V chambers are Frankonia’s full compliant and customizable EMC testing solutions at 10,0m measuring distance offering various sizes of the Quiet Zone (QZ) and are dedicated to automotive full vehicle testing. Due to the high grade of customization reflecting the demands of our customers, this semi-anechoic chamber is adaptable in size and offers several configuration possibilities. The innovative concept with its impressionable absorber layout achieves exceptional performance for emission and immunity testing.


    Identical performances can be offered using Hybrid Absorbers or Frankonia’s unique P2400 Long-pyramid Absorbers.



    • Testing according to ECE R10.5 with an integrated dynamometer

    • Integrated dynamometer, turning or fixed location, or mobile versions available

    • Available with Frankosorb® Pyramid Absorbers, or Hybrid Absorbers

    • Full compliant EMI/EMS

    • Highly customizable solution for any kind of EMC testing and limitless integration of individual applications

    • Adjustable chamber size, characteristics and configuration due to different EUT requirements

    • Advanced absorber lining with long-lasting Frankosorb® absorbers (Frankonia technology)

    • Specialized for ‘out-of-the-range’ EMC test environments

    • Turnkey solution


    Typical Product Standards


    • CISPR 11

    • CISPR 12

    • CISPR 14

    • CISPR 15

    • CISPR 25

    • CISPR 32

    • MIL-STD 461

    • ECE R10.5


    • IEC/EN 61000-4-3

    • ISO 11451

    • ISO 11452

    • MIL-STD 461

    • RS 101, RS102 RS103

    • ECE R10.5


    Typical Verification Standards


    • CISPR 16-1-4 and/or ANSI C63.4


    • IEC/EN 61000-4-3


    Typical Specifications

    Chamber Type



    Absorber Lining



    External dimensions

    22.580 x 15.680 x 8.700 mm (LxWxH)

    26.480 x 20.180 x 10.500 mm (LxWxH)

    Quiet Zone at 3,0 m

    ø3,0 m

    Quiet Zone at 5,0 m

    ø5,0 m

    Quiet Zone at 10,0 m

    ø6,0 m

    Load capacity

    up to 80,0 tons; dynamometer integration

    Frequency range

    9 kHz/ 26 MHz to 18 GHz (option 40 GHz)



    Performance & Compliance

    • Full compliant emission (EMI) according to CISPR 16-1-4 and ANSI C63.4 Deviation NSA ±3,5 dB (30 MHz to 1 GHz) – guaranteed Deviation SVSWR +5,5 dB (1 GHz to 18 GHz) – guaranteed

    • Full compliant immunity (EMS) according to IEC/EN 61000-4-3 Deviation FU 0 dB/+6 dB at 75 % of 16 measuring points (26/ 80 MHz to 18 GHz) – guaranteed

    • Full compliant emission (EMI) according to CISPR 25 Ed.4 (ALSE verification acc. to the long-wire method recommended)

    • Full compliant emission (EMI) according to CISPR 12 at 3,0 m

    • Full compliant immunity (EMS) according to ISO 11452 and ISO 11451

    • Perfectly meets ECE R10.5 with dynamometer integration
