MK MESSTECHNIK 16 CHANNEL ANALOG
16 channel analog
The U16/14-100k-system can be used for the optical transmission of 1 to 16 different analog voltage signals outside the ALC or to transmit a stimulus inside the chamber (with optional output filter). It consists of a battery supplied transmitter and an also battery supplied receiver connected to each other with an optical fiber and can also be used to transmit analog signals over long distances or to handle ground potential problems. With the optical transmission, the shielded case and external filter, the system is well equipped for EMI and EME tests.
Product |
Voltage Range |
min. eff. Resolution |
Bandwidth |
Ux/14 (x=up to 16 Channels) |
+/- 15V |
up to 19 Bit |
up to 100kHz |
mk-messtechnik U8/12-1M Setup Explanation

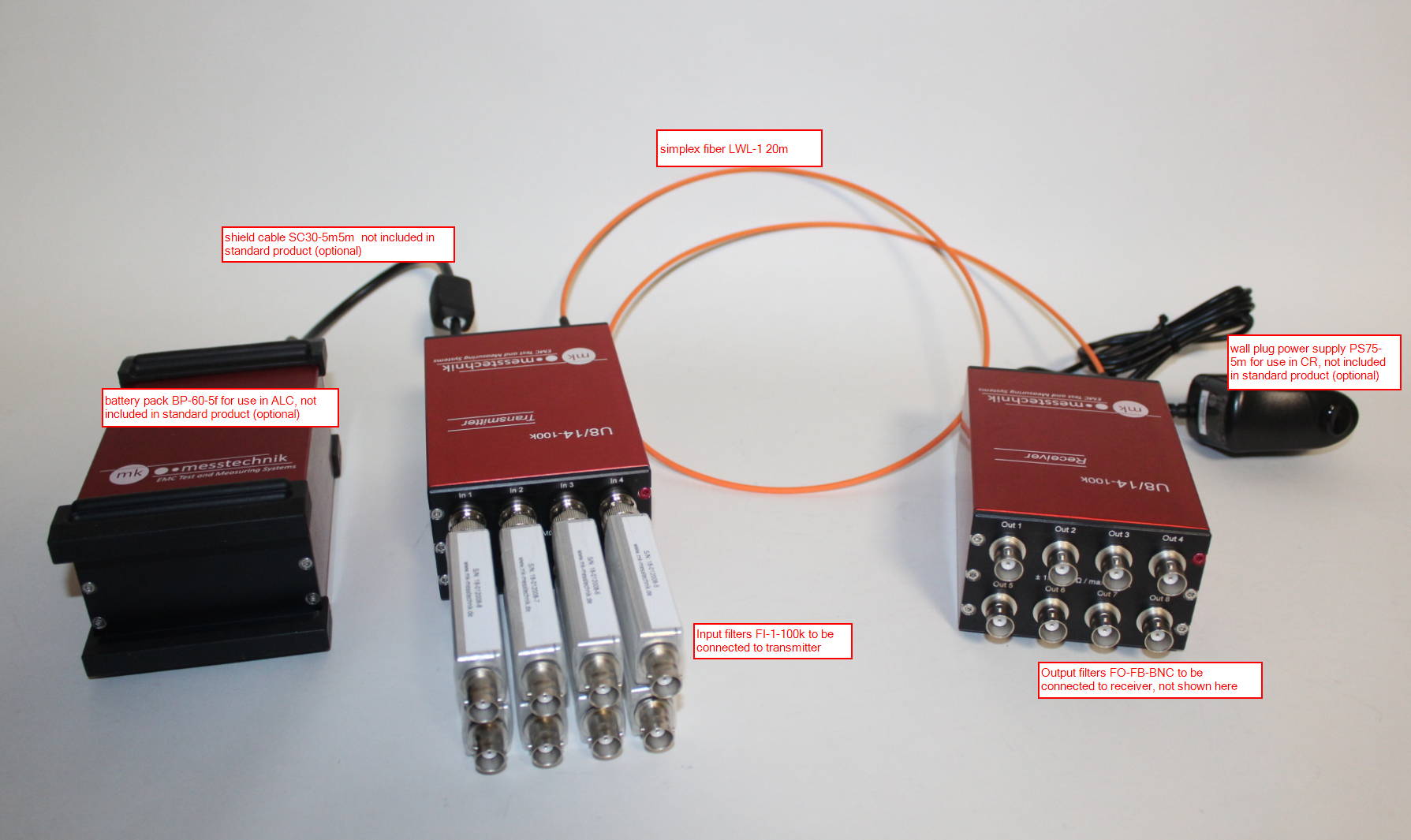

mk-messtechnik U8/14-100k Setup Explanation
mk-messtechnik U8/12-1M Analog Transmitter Users Manual
