MK MESSTECHNIK TRIPODS, MONOPOD AND MOUNTS
Tripods, Monopod and other Camera Mounts for the mk-messtechnik dAV Cameras
• WCM40 Wall mount – Length Customizable
• Tripod-170 – Wooden tripod with a max. height of 170cm
• Folding «Tripod-Dolly» for Tripod-170 with brakes
• Tripod-Mini – Wooden tripod with a max. height of 36cm
• Monopod floor stand – 130cm~170cm
• Flexible Tripod – small, flexible tripod
• SBtc – Auto Seatbox Mount Special
WCM40 Wall mount

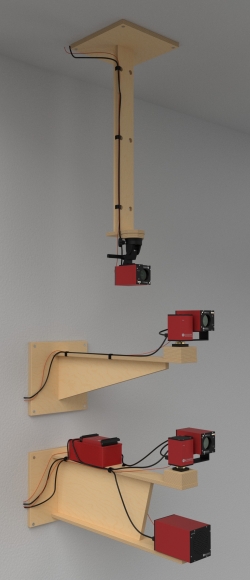

The wall mount WCM40 can be fixed to the walls with the help of screws. On the upper level a camera with pan/tilt unit can be placed, on the lower level e.g. the loudspeaker of our intercom system dAV-TRX-PS.
The length of the wall mount is customized, since a short version is sufficient for an anechoic chamber with ferrite tiles. For an EMC chamber with pyramid absorbers the longer version of the wall mount is necessary. If drill holes and the mounting plate is known, we can adapt to these values.

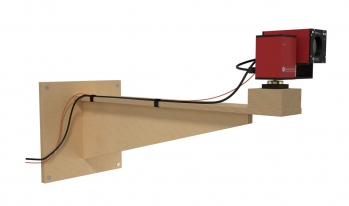

Wall mount – long version for the use between pyramid absorbers
WCM extension

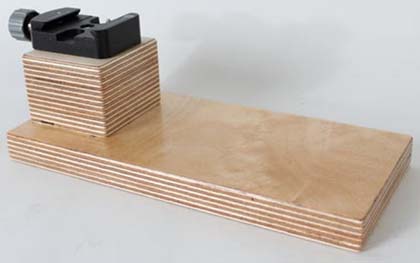

wooden camera mount extension for existiing wall mounts (length variable, standard approx. 25cm) if other lengths are requested, please let us know – min. distance to existing absorber applies to avoid damage of the pan/tilt – max. length applies to avoid vibrations of camera – ask for details
The «classic» wooden tripod with a max. height of 170 cm.
Load capacity 5 kg 2 D pan/tilt attachment Weight 3.6 kg Transportation length 106 cm Minimal height 12 cm Integrated circular level Metal fittings – tripods completely without metal available on demand
The tripod-170 can be mounted on the tripod dolly that has a brake for each wheel. The dolly is fixed at the tripod with the help of round cords and can be folded for transportation. Weight 1.88 kg Transportation length 58 cm
The «little brother» of the «Tripod-170» can be extended to a max. height of 36 cm and only weighs 700 g.
Load capacity 15 kg Weight 0.68 kg Transportation length 26 cm Minimal height 5 cm Maximal height 36 cm Integrated circular level
Monopod – Floor Mount, Free Standing
The platforms of our Monopod are completely made of wood, the vertically adjustable pole is made of glass fibers. The board on which the camera and the pan/tilt unit are mounted, can be removed easily by pulling the splint. By default, the Monopod comes with fell gliders, ball rollers integrated into the pedestal are optional (only fit for even surfaces). With the help of a quick release clamp mounted on the camera or the pan/tilt unit, the system is set up fast. In addition, the Monopod can be disassembled completely for storage and transpiration.
Minimal height 100 cm
Maximal height 1700 cm
mk-messtechnik -onopod Wood Data Sheet
mk-messtechnik Wooden -onopod stand for TRX Users Manual
The flexible tripod is particularly suitable for our dAV-Cr-HD-µ-camera, since it can be mounted on head rests or steering wheels and it takes up little space.

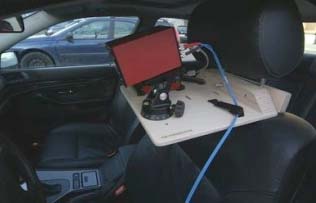

The camera AV-C as well as the external batteries can be fixed on the camera holder HM. The visible area of the camera can be adjusted by the provided 2D Panoramic Head. The holder itself is fixed at the head rest of a vehicle with a wing bolt and a counter support. In order to minimize vibrations, an additional support to the backrest can be installed.

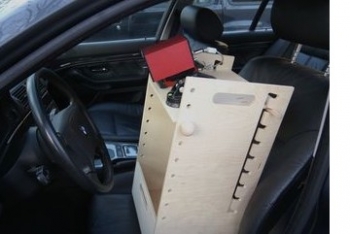

As an alternative to the camera holder, the «seatbox» SB is available. It is simply put on the car seat. As is the case with the camera holder, the camera and its batteries are also mounted by the help of a 2D Panoramic Head and a Velcro tape. The height and the angle of the board can be adjusted with the help of a wooden peg.
Up to 6 cameras and Pan/tilt units can be mounted on the «seatbox special», the battery packs can be stored in the compartments and are fixed with Velcro stripes. In addition, the holes at the two sides of the seatbox are for easy transportation.
mk-messtechnic Optical Fiber Component Cleaning Instructions
