    MK - optionOPTIONS FOR THE mk CAMERA SYSTEM

    Options for the mk-messtechnik dAV digital camera system
    Hardware Options
    • Receiver dAV-Rr – Required for all dAV Camera Installations
     HD Recorder – digital recording of HD audio/video channel
    •
    PT-02/03 Pan/Tilt Unit

    • Option -HiRF for the PT-02/03 Pan/Tilt Unit
    • dAV-Rrc-Joy External Remote Control Joystick
    • LE-LED – LED Lighting System for your Chamber!
    • dAV Camera Upgrades
    •
    dAV-Quad-4k / multiviewer
    • External Battery Packs
    Software Options
    • CCS – PT-02/03 control via PC with Camera Control Software
    • dAV HDrec PC-MD – Motion Detection Option
    •
    OSD – On Screen Display Option

    PT-02/03 Pan/Tilt Unit
    mk messtechnik Pan/tilt unit PT-02/03 mk messtechnik Pan/tilt unit PT-02/03
    The PT-02/03 Pan/Tilt Unit supports all dAV cameras and can be controlled via the dAV-Cr receiver. The PT-02/03 Pan/Tilt unit is powered by the dAV camera, so further wiring is not necessary.
    The end stops can be set by buttons at the Pan/Tilt unit (e.g. if the camera would crash into something when moved).
    The PT-02/03 Pan/Tilt Unit is connected to the dAV camera by an integrated ¼“ tripod socket.

    Three versions of the PT Pan/Tilt
    •

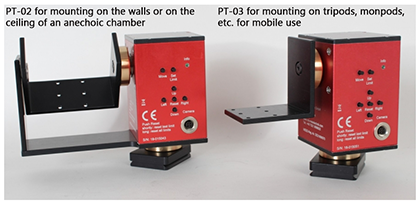

    Pan/tilt unit PT-02 specifically designed for the mounting at the walls or the ceiling of an anechoic chamber (see picture on the left) • Pan/tilt unit PT-03 for mounting on tripods, monopods, etc. for mobile use with reinforced brackets (see picture on the right)

    • Pan/tilt unit for the Infrared Camera LWIR (see picture below)

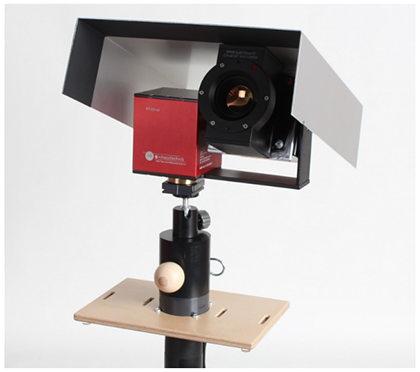

    mk-messtechnik PT-03 and PT-02 with brackets mk-messtechnik Infrared camera opto-LWIR with PT Unit and Shroud for outside installation
    Aaronia_AG_EMC_Analyzer_Bundle-1_Data_Sheet mk-messtechnik PT-02 Dimensions

    Setup of a camera with pan/tilt unit
    mk messtechnik dAV Camera with pan/tilt unit The camera, which is mounted on the pan/tilt unit PT-03, is supplied by the Battery Pack. With the help of the external display ED-43, the camera can be comfortably set up.

    Option -HiRF for the PT-02/03 Pan/Tilt Unit

    With the option -HiRF, a dAV camera and PT-02/03 Pan/Tilt Unit are upgraded to operated in very high field strengths and frequencies. The dAV Camera and PT-02/03 Pan/Tilt Unit are equipped with additional screws and special cables for a high immunity: >> 600V/m up to 40GHz.

    dAV-Rrc-Joy and dAV-Rrc-Joy-matrix Joysticks

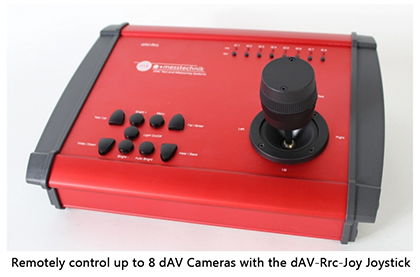

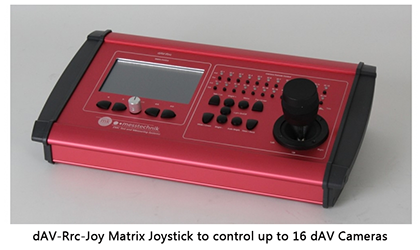

    mk-messtechnik dAV-Rrc-Joy Joystick to control up to 8 dAV Cameras mk-messtechnik dAV-Rrc-Joy Matrix Joystick to control up to 16 dAV Cameras

    Remotely control up to 8 or 16 cameras with the dAV-Rrc-Joy or dAV-Rrc-Joy-matrix (dAV-Cr receiver required).

    Twist the joystick to zoom the camera (tele/wide), push forward and backward for moving the pan/tilt in the y-axis, turn left or right for the x-axis. The dAV-Rrc-Joy and dAV-Rrc-Joy Matrix are powered by the dAV-Cr receiver, so no additional power supply is necessary.



    LE-LED – LED Lighting System for your Chamber!

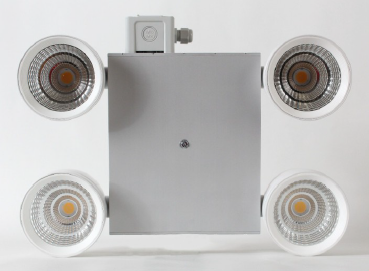

    mk-messtechnik LE-LED

    Low emission ALC LED light with 2-4 spots and approx. 75W (LE-LED 75) or 150W (LE-LED 150) LED power, that can be used to easily exchange existing 120V or 230V chamber lights (halogen lights) without the need of new filters or other electrical installation. 4 adjustable (one axis) full metal head LED spots single powered by a toroid core transformer in a full metal shield housing. With the shielded case, the LED light is well equipped for EMI and EME tests and proved this in many tests.

    Aaronia_AG_BicoLOG_5070_Biconical_Antenna_Data_Sheet mk-messtechnik LE-LED Data Sheet

    dAV-Quad-4k / multiviewer
    mk-messtechnik-dAV-Quad-4k-Multiviewer The dAV-Quad-4K displays 4 Full-HD video channels on one 4K30p screen. With its different output options, it can be used to either display the video signal without loss in resolution, forward the video signal to a grabber card or use an optical forwarding output to display the combined output at a different location further away.
    Click here for detailed information on the dAV-Quad-4K

    External Battery Packs
    For dAV Camera installations that are not near a power outlet, mk-messtechnik offers the following power supplies:

    • BP120-5f
    • SPS120 – Shielded external power supply

    dAV Camera Upgrades
    mk-messtechnik dAV Cameras can be upgraded with the following features and connections:
    · 30x zoom for HD-Cameras (e.g. for large EMC chambers)
    · Wide angle and close-up lens
    · ST Fiber Optical connectors

    CCS – Camera Control Software
    The CCS Camera Control Software allows a user with a PC to remotely control PT-02/03 Pan/Tilt Units. The PC is connected to the dAV-Cr receiver via USB (built into all receivers) or with the optional Ethernet-GUI Ethernet interface option. Can be combined with the dAV HDrec PC-MD Motion Detection Option

    dAV HDrec PC-MD – Motion Detection Option

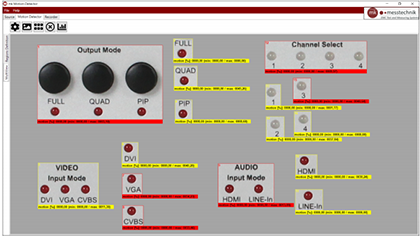

    mk-messtechnik dAV HDrec PC-MD
    The dAV HDrec PC-MD is a PC and Software based Motion Detection upgrade for the dAV Cameras and PT-02/03 Pan/Tilt Units.

    This solution supports either 4 Regions of Interest (ROI) or 16 ROI.

    Hardware

    • mk SD/HD camera and receiver
    • Video capture card or external video capture device
    • Fast PC (4/8 CPU cores, 4 GHz CPU frequency, 8 GB RAM, Windows 7/8/10 64 bit)
    • nVidia CUDA-enabled graphics card
    • Display with a resolution of at least 1440p.
    Software
    • Drivers for the video capture hardware
    • Optional: 3rd party video capture software
    • Drivers for the graphics card
    • .NET 4.5 Runtime or higher
    • mk Motion Detector application

    Aaronia_AG_BicoLOG_5070_Biconical_Antenna_Data_Sheet mk-messtechnik dAV-HDrec PC MD Motion Detector Quick Start Guide


    OSD – On Screen Display Option

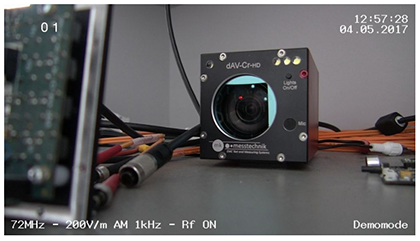

    mk-messtechnik OSD - On Screen Display Option  The OSD option adds On Screen Display (OSD) data consisting of Date, Time, Camera #, MHz, V/m, etc. to the DUT-data video stream

    Aaronia_AG_BicoLOG_5070_Biconical_Antenna_Data_Sheet mk-messtechnic Optical Fiber Component Cleaning Instruction
