    MK MESSTECHNIK DIGITAL TRANSMISSIONS

    Optical transmitters for the transmission of digital interface signals:
    opto1394 – IEEE1394/Firewire signals

    optoLAN – 100MBit per second
    optoLAN-Gb – 1 GBit/s
    optoLAN – option M12
    optoLAN-BCM89810
    optoLAN-BCM89811
    optoRS232-HS

    optoRS485
    optoTTL
    optoUSB2.0
    optoUSB2.0-RBDIR

    optoUSB3.0

    opto1394 IEEE1394/Firewire signals
    This system is used for the optical transmission of IEEE1394/Firewire-signals and can transmit data rates of up to 400 Mbit/s (800 Mbit/s at 1394b). The transmitter system consists of two similar transceivers supplied by batteries and a duplex-62,5/125µm-multimode optical cable. Due to its insensitivity against strong electromagnetic fields the opto1394 is fit for tests of electromagnetic compatibility in EMC-test chambers, TEM-cells, and striplines. The system can also be used for the fail-proof transmission of signals across long distances.

     mk-messtechnik IEEE1394/Firewire signals – opto1394 Data Sheet



    optoLAN – 100 MBit per second

    mk messtechnick optoLAN - 100 MBit per second
    The optoLAN system can be used for the optical transmission of Ethernet (LAN-) signals with a data rate of up to 100Mbit/s (100BaseT). The two identical transceivers are supplied by internal batteries and connected with an optical fiber. With the optical transmission and the shielded case, the system is well equipped for EMI and EME tests. The device is not downward compatible to 10BaseT. If you need this option you can get the optoLAN-Gb. Due to its insensitivity to strong electromagnetic fields above the specified transmission range the system is fit for tests of electromagnetic compatibility in EMC-test chambers, TEM-cells, and striplines.

     mk-messtechnik optoLAN Data Sheet

     mk-messtechnik optoLAN Manual





    optoLAN-Gb – 1 GBit/s

    This optical device is used for the bidirectional optical transmission of Ethernet signals with a transmission rate of 1 GBit/s. It is downward compatible to 100BaseT and 10BaseT (automatically detected). The system consists of two identical transceivers supplied by batteries and a simplex-62,5/125µm-multimode optical cable. The Ethernet connectors are custom-made. Due to its insensitivity to strong electromagnetic fields above the specified transmission range the system is fit for tests of electromagnetic compatibility in EMC-test chambers, TEM-cells, and striplines.



    mk-messtechnil optoLAN-Gb Standard Configuration Schematic

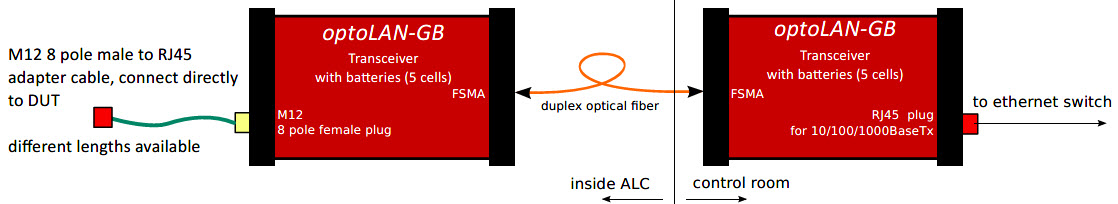

    mk-messtechnil optoLAN-Gb-Schematic for Setup

    mk-messtechnil optoLAN-Gb Configuration with Accessories Schematic

    mk-messtechnil optoLAN-Gb Configuration with Accessories Schematic
     mk-messtechnik optoLAN-Gb with M12 Data Sheet

     mk-messtechnik optoLAN Manual

     mk-messtechnil optoLAN-Gb Standard Configuration Schematic

     mk-messtechnil optoLAN-Gb Configuration with Accessories Schematic



    optoLAN-BCM89810

    The optoLAN-BCM89810 system can be used for the optical transmission of automotive Ethernet signals with Broadcom© BCM89810© chip set (unshielded twisted pair UTP Ethernet). The two identical transceivers are supplied by internal batteries and connected with an optical fiber. The standard connector is Rosenberger HSD (Z-coded). With the optical transmission, the shielded case and the high quality connector, the system is well equipped for EMI and EME tests.

     mk-messtechnik optoLAN Data Sheet

     mk-messtechnik optoLAN Manual



    optoLAN-BCM89811

    The optoLAN-BCM89811 system can be used for the optical transmission of automotive Ethernet signals with Broadcom© BCM89811© chip set (unshielded twisted pair UTP Ethernet). The two identical transceivers are supplied by internal batteries and connected with an optical fiber. The standard connector is Rosenberger HSD (Z-coded). With the optical transmission, the shielded case and the high quality connector, the system is well equipped for EMI and EME tests.

     mk-messtechnik optoLAN Data Sheet

     mk-messtechnik optoLAN Manual



    optoRS232-HS

    Optical transmitter for RS232 signals: optoRS232-HS The optoRS232-HS system can be used for the optical transmission of RS232 signals (hardware handshake) with transmission rates of up to 116 kbit/s. It consists of two identical battery supplied transceivers connected to each other with an optical fiber. With the optical transmission and the shielded case, the system is well equipped for EMI and EME tests.

     mk-messtechnik optoRS232-HS Data Sheet



    optoRS485

    The optoRS485 system can be used for the optical transmission of RS485-signals up to a data rate of 1 Mbit/s. It can be used to transmit RS485-signals over long distances or to handle ground potential problems. With the optical transmission and the shielded case, the system is well equipped for EMI and EME tests.

     mk-messtechnik optoRS485 Data Sheet



    optoTTL

    mk messtechnik optoTTL
    Optical transmitter for up to 16 digital signals: optoTTL The optoTTL is used for the optical transmission of digital signals. Up to 16 digital signals with a sampling rate of 40 MS/s (each channel) can be transmitted. The system consists of a transmitter supplied by batteries, a simplex-62,5/125µm-multimode optical cable, and a receiver – which has integrated batteries as well. Due to its insensitivity to strong electromagnetic fields above the specified transmission range the system is fit for tests of electromagnetic compatibility in EMC-test chambers, TEM-cells, and striplines.

    Product

    Input

    Output

    OptoTTL_5_3_u

    2 ranges can be selected:
    3.3V and 5V

    2 ranges can be selected:
    3.3V and 5V

    OptoTTL_12_5_u

    2 ranges can be selected:
    12V and 5V

    0/5V

    OptoTTL_b-12

    0/12V

    0/12V



    The optoTTL-b system can be used for the bidirectional optical transmission of digital signals. It can also be used to transmit digital signals over long distances or to handle ground potential problems.
    mk messtechnik optoTTL-b

    To ensure that the TTL Configuration is correct, the following questions must be answered:
    1. Uni or bidirectional?

    2. How many channels per direction?

    3. BNC or SUB-D requested?

    4. What voltage levels?

    5. What bitrate?

    6. If deviating per channel, list all channels



     mk-messtechnik optoTTL Configuration Questionaire

     mk-messtechnik optoTTL_5_3_u Data Sheet

     mk-messtechnik optoTTL_12_5_u Data Sheet

     mk-messtechnik optoTTL_b-12V Data Sheet



    optoLAN – option M12

    mk messtechnik optoLAN Option M12
    A new type of connector is available now: The M12 connector (MMT471A315, counterpart MNF881A315-0001) by Metz Connect was integrated into our optical transmitter for Ethernet signals optoLAN, as well as optoLAN-Gb. Therefore, these devices are even fitter for tests of electromagnetic compatibility.



    optoUSB2.0


    The optoUSB-2.0 system can be used for the optical transmission of USB-signals up to a data rate of 480 Mbit/s according to USB2.0. It can be used to transmit USB-signals over long distances or to handle ground potential problems. With the optical transmission and the shielded case, the system is well equipped for EMI and EME tests.

     mk-messtechnik optoUSB-2.0 Data Sheet



    optoUSB2.0-RBDIR

    As an alternative to the USB-A/B connectors we offer HSD connectors for the automotive use which have a better RF performance concerning emission and immunity.

    For this, we have different connector cables available as shown below:

    • Cable with Rosenberger HSD-plugs/USB-A-plugs and HSD-plugs/USB-B-plugs

    mk-messtechnik/mk-messtechnik-Cable-with-Rosenberger-HSD-plugs-USB-A-Plugs and HSD-Plugs-USB-B-plugs

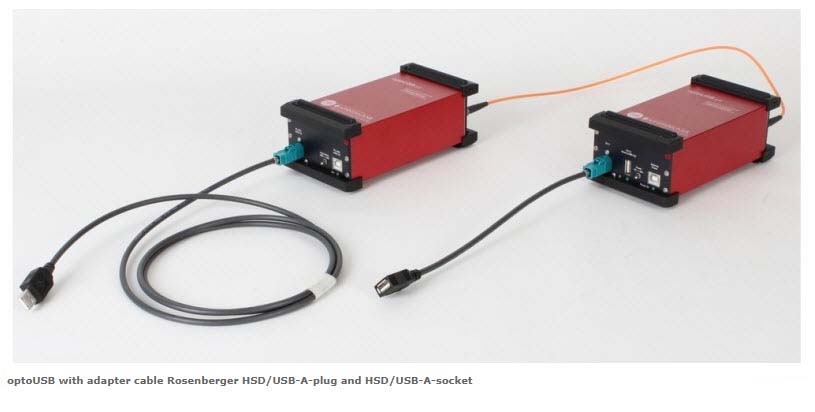

    • Cable with Rosenberger HSD-plugs/USB-A-plugs/ bzw. HSD-plugs/USB-A-female plug

    mk-messtechnik-Cable-with-Rosenberger-HSD-plugs-USB-A-Plugs with bzw and HSD-Plugs-USB-B-female plug

    • Setup with description

    mk-messtechnik-Cable-with-Rosenberger-HSD-plugs-USB-Plugs and HSD-Plugs-USB plug Setup



    Background
    Both “USB” and “LAN” interfaces are consumer electronic interfaces, so they are not automotive grade.
    This means, that the plug being used for LAN (RJ45) and USB (e.g. Type A or B) can not warrant an automotive level emissions or immunity.
    mk-messtechnik designed the optoUSB2.0-RBDIR, with an automotive grade Rosenberger HSD plug integrated and the optoLAN-GB with an M12 industry standard plug.
    Both plugs the best shielding available for these high data rates. Still, the opposite side (DUT) has the standard plug integrated. What this means is that the emissions/immunity of the total link is dependent on the quality of the DUT connector and the mk-messtechnik devices add as low as possible to the test.



    optoUSB3.0

    The optoUSB-3.0 system can be used for the optical transmission of USB-signals up to a data rate of 5Gbit/s according to USB3.0 standard. It can be used to transmit USBsignals over long distances (up to 50m) or to handle ground potential problems. With the optical transmission and the shielded case, the system is well equipped for EMI and EME tests.



    Technical data

    Connectors: 2x USB-3.0 port (hub); 1x USB-3.0 (PC-connetion)
    Data rate: up to approx. 5Gbit/s (USB3.0, not backward compatible to USB2.0/1.1)
    Power supply:
    Hub side: 7 NiMH cells with 4 Ah; 2-10h depending on power consumption of devices at USB ports; five-poled charge plug
    PC side: powered by PC; battery or power supply available on request
    Case dimensions: 150mm x 100mm x 65mm aluminum case with rubber feet
    Weight: approx. 1000g
    Misc.: optional shielded external battery pack (BP84 – 8.4V) to enhance test time



     mk-messtechnik optoUSB-3.0 Data Sheet

     mk-messtechnik optoUSB-3.0 Manual
