Rosenberger HSD cables

Rosenberger HSD 2xZ – SUB-D9 confectioned adapter cable

confectioned cable with 2x Rosenberger HSD universal coded connector to
female SUB-D9
the adapter cable is ONLY meant for lab use together with our optoLAN 100BaseT1 interfaces
cable type: Kromberg & Schubert FLKCuMgU9Y-9Y (KROCAR 64996795)
others on request, might need to be supplied by customer
standard pin out compatible e.g. with Vector VN5640 (channel 1 + 2):
Channel 1
BR_P: HSD Pin 1 => SUB-D9f Pin 4
BR_N: HSD Pin 3 => SUB-D9f Pin 5
Channel 2:
BR_P: HSD Pin 1 => SUB-D9f Pin 1
BR_N: HSD Pin 3 => SUB-D9f Pin 2
cable length: tbd – please add in PO to avoid delays (up to 2m same price)

Rosenberger HSD cable Z – open end

cable with Rosenberger HSD universal coded connector – open end for self configuration
length: ~2m

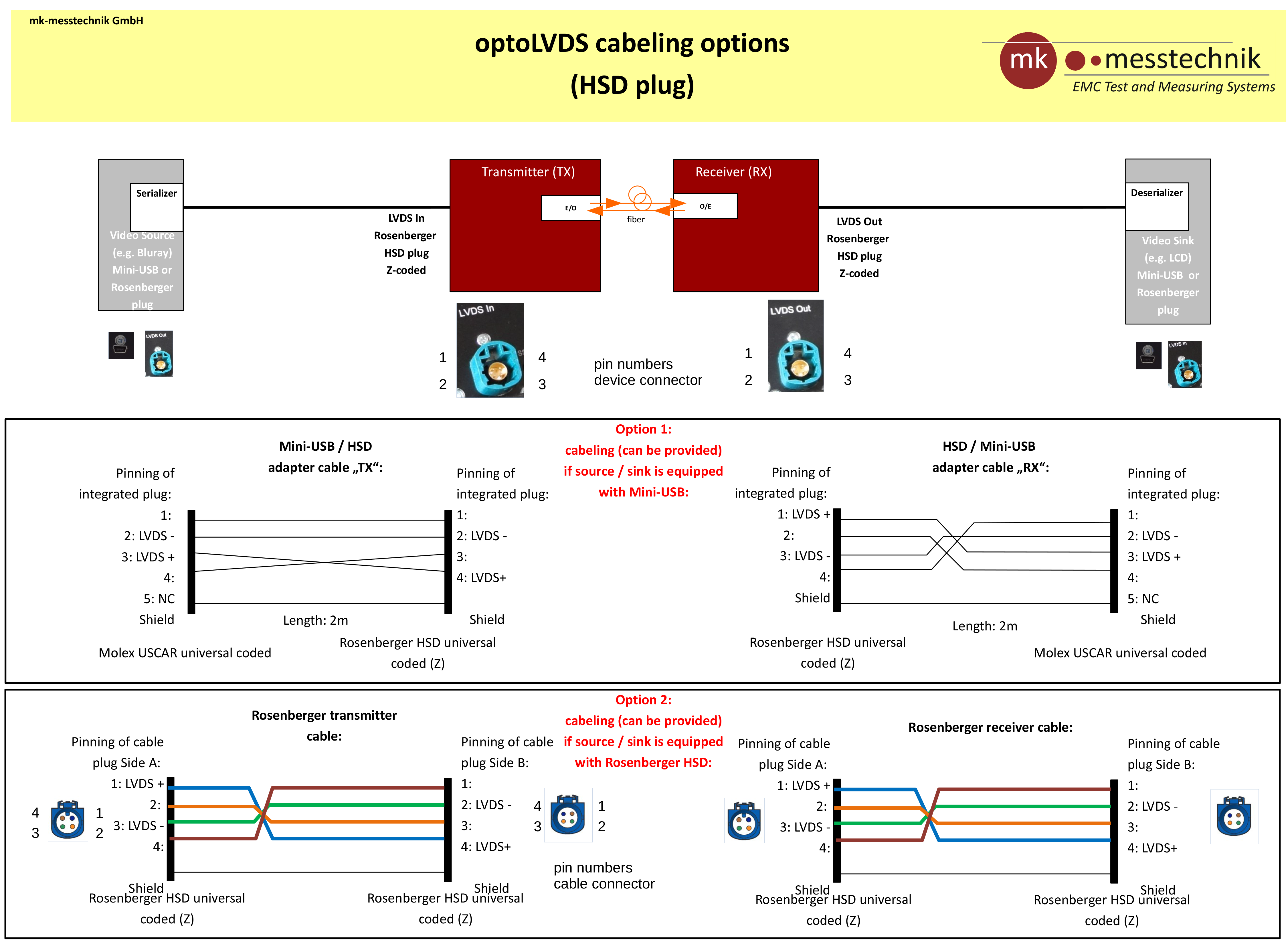

color coding Side A:
1: blue
2: orange
3: green
4: brown
color coding Side B:
1: brown
2: green
3: orange
4: blue

Rosenberger HSD cable Z – USB Type A female plug

short adapter cable with Rosenberger HSD universal coded connector – Type A female plug high quality fully shielded confectioned solution to connect Hub side
transceiver to DUT (e.g. webcam) with original wire harness length: ~0.2m

Rosenberger HSD cable Z – USB Type A male plug

cable with Rosenberger HSD universal coded connector – Type A male plug high quality fully shielded confectioned solution for direct DUT connection (connect PC side USB transceiver directly to DUT => e.g. PC) length: ~2m

Rosenberger HSD cable Z – USB Type B male plug

cable with Rosenberger HSD universal coded connector – Type B male plug
high quality fully shielded confectioned solution to connect Hub side USB transceiver directly to DUT (e.g. webcam) length: ~2m

Rosenberger HSD Z – confectioned adaption to existing cable

Adaption of Rosenberger HSD universal connector to existing cable
(max. diameter restrictions: outer diameter: max. 4,8mm; wire gauge: max. 0,35mm^2)
cable to be delivered by customer, together with pin requirement (such as: P = color 1, N= color 2)

Rosenberger HSD Z – SUB-D9 confectioned adapter cable

confectioned cable with Rosenberger HSD universal coded connector to female SUB-D9 (metal)
The adapter cable is ONLY meant for lab use together with our optoLAN 100BaseT1 interfaces
cable type: Kromberg & Schubert FLKCuMgU9Y-9Y (KROCAR 64996795)
others on request, might need to be supplied by customer
standard pin out compatible e.g. with Vector VN5640 (channel 1):
BR_P: HSD Pin 1 => SUB-D9f Pin 4
BR_N: HSD Pin 3 => SUB-D9f Pin 5
cable length: tbd – please add in PO to avoid delays (up to 2m same price)

Rosenberger HSD Z open end confectioned adapter cable

confectioned cable with Rosenberger HSD universal coded connector to open end for self confectioning
This adapter cable is ONLY meant for lab use together with our optoLAN
100BaseT1 interfaces
cable type: Kromberg & Schubert FLKCuMgU9Y-9Y (KROCAR 64996795)
others on request, might need to be supplied by customer
standard pin out:
BR_P: HSD Pin 1 => white
BR_N: HSD Pin 3 => green
cable length: tbd – please add in PO to avoid delays (up to 2m same price)

Rosenberger HSD cables Z – USB

Type A female plug

Rosenberger HSD cable Z – USB Type A female plug
short adapter cable with Rosenberger HSD universal coded connector – Type A female plug
high quality fully shielded confectioned solution to connect Hub side transceiver to DUT (e.g. webcam) with original wire harness
length: ~0.2m

Type A male plug

Rosenberger HSD cable Z – USB Type A male plug
cable with Rosenberger HSD universal coded connector – Type A male plug
high quality fully shielded confectioned solution for direct DUT connection
(connect PC side USB transceiver directly to DUT => e.g. PC)
length: ~2m

Type B male plug

Rosenberger HSD cable Z – USB Type B male plug
cable with Rosenberger HSD universal coded connector – Type B male plug
high quality fully shielded confectioned solution to connect Hub side USB transceiver directly to DUT (e.g. webcam)
length: ~2m
