MK MESSTECHNIK POWER SUPPLY
Power Supply
Power supplies are designed for mobile devices which can be supplied with regulated and unregulated voltages from the integrated batteries. The voltage can be monitored either via LEDs or a voltmeter.
· · BV-10D+-10V
· · BV-12D +1 12V
· · BV-12S 12V
· · BV-15S 15V
· · BV-24S 24V
This power supply can be used with mobile antennas and measuring adapters with several regulated voltages. By default, the BV10D has two output voltages with -10V and +10V, as well as a display for the codings of Rohde & Schwarz-devices. There are two control-LEDs for the monitoring of the voltages at the front side of the device.
The system has two integrated batteries and can be configured for up to 4 positive and 2 negative output voltages ranging from -11V to +11V.
mk-messtechnik BV-10D +- 10V Data Sheet
mk-messtechnik BV-10D +- 10V Manual
This system is used for the power supply of mobile devices with unregulated voltages of -12V and +12V. The BV-12D has two integrated batteries which are directly connected to the outputs.
For the monitoring of the voltages, a voltmeter with a test function for each battery (load of approx. 300mA) is located at the front side of the device.
mk-messtechnik BV-12D +1 12V Data Sheet
This system is used for the power supply of mobile devices with an unregulated voltage of 12V. It has integrated batteries winch are directly connected to the output. For the monitoring of the voltages, there is a voltmeter with a test function for the battery (load of approx. 300mA) is located at the front side of the device.
mk-messtechnik BV-12S 12V Data Sheet
This system is used for the power supply of mobile devices with an regulated voltage of +3 to 15V. It has two integrated lead batteries winch make the device easy to handle. For the monitoring of the voltages, there is a voltmeter with a test function for the battery located at the front side of the device.
mk-messtechnik BV-15S 15V Data Sheet

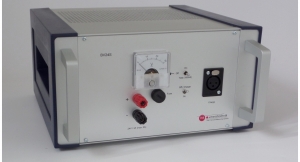

This system is used for the power supply of mobile devices with unregulated voltage of 24V. It has integrated batteries winch are directly connected to the output. For the monitoring of the voltages, there is a voltmeter with a test function for the battery (load of approx. 100mA) is located at the front side of the device.
