MK MESSTECHNIK DAV_CR_SD CAMERA

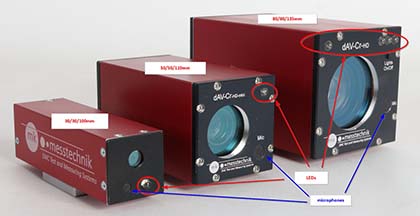

Side by Side size comparison of the dAV Camera’s
dAV_Cr_SD Camera
The dAV-C / dAV-R system system can be used for the optical and acoustical monitoring of devices under test during EMC measurements. The dAV-Cr-SD camera has an integrated microphone and can be set via an external set-up LCD and eight buttons on the case or via (optional) remote control at the receiver. One field of application is the monitoring of dash-boards or displays in vehicles ALCs (wall mount application) during EMC-tests. With the optical transmission and the shielded case, the camera is well equipped for EMI and EME tests.
In the version dAV-Cr-SD (dAV-C-SD with the option -r = remote) all settings and functions can be controlled via the receiver dAV-Rr (dAV-R with the option -r).
mk-messtechnik dAV_Cr_SD Camera Data Sheet
mk-messtechnik Overview of the dAV-C series Data Sheet
mk-messtechnik dAV-C-SD / dAV-R Manual
Options for the mk-messtechnik dAV digital camera system
Hardware Options
• Receiver dAV-Rr – Required for all dAV Camera Installations
• HD Recorder – digital recording of HD audio/video channel
• PT-02/03 Pan/Tilt Unit
• Option -HiRF for the PT-02/03 Pan/Tilt Unit
• dAV-Rrc-Joy External Remote Control Joystick
• LE-LED – LED Lighting System for your Chamber!
• dAV Camera Upgrades
• dAV-Quad-4k / multiviewer
• External Battery Packs
Software Options
• CCS – PT-02/03 control via PC with Camera Control Software
• dAV HDrec PC-MD – Motion Detection Option
• OSD – On Screen Display Option
Tripods, Monopod and Auto Mounts
• WCM40 Wall mount – Length Customizable
• Tripod-170 – Wooden tripod with a max. height of 170cm
• Folding «Tripod-Dolly» for Tripod-170 with brakes
• Tripod-Mini – Wooden tripod with a max. height of 36cm
• Monopod floor stand – 130cm~170cm
• Flexible Tripod – small, flexible tripod
• SBtc – Auto Seatbox Mount Special
