Schwarzbeck Accessories

• ACS 110 – Traveler Charger for Probes and Antennas

• ACT 461G – Audio Coupling Transformer

• BN 1701 – Buffer Network
• BD 9501 – IEEE-488 Bus-Feed Through

• CA 9607 – Universal Calibration Adapter for Current Clamps

• CA 9608 – Universal Calibration Adapter

• CAP 10 – 10 µF Capacitor for NNBM 8124. For airborne equipment

• CAP 10 8226-2 – 10 μF capacitor for NNBL 8226-2 LISN and for military equipment

• CCA – Product Transport Cases

• CCC 9224 – Capacitive Coupling Clamp

• CCC 9225 – Capactive Coupling Plate

• CISPR 17 Equipment – Transformers

• CP 9610 – Current Sensor

• CVP 9222 C – High Impedance Capacitive Voltage Probe

• CVP 9222 – High Impedance Capacitive Voltage Probe

• HPF – High Pass Filter

• HPF 150 k – High Pass Filter

• KU 9608 – Coaxial and Line Switch

• SW 9602 – Current Transformer

• SW 9603 – Current Transformer

• SW 9605 – Current Transformer

• SW 9606 – Current Injection Clamp

• TF 130-150 – Test Fixture for Ford RI 130/ 150



ACS 110 Traveler Charger for Probes and Antennas

 · Charger for Probes and Antennas with built in with built in NiMH-batteries

ACT 461G – Audio Coupling Transformer

Audio coupling transformer for conducted audio frequency susceptibility tests as required by MIL STD 461G and other standards.

Frequency range 10 Hz – 250 kHz, 200 W, turn ratio 2:1.

Output and input: wing terminals.



BN 1701 Buffer Network

· Buffer network  (CISPR 17)

 · Frequency range: 100 kHz – 30 MHz

 · max. 32 A

 Data Sheet BN1701



BD 9501 IEEE-488 Bus-Feed Through

 · IEEE-488 Bus-Feed through for flange mounting

(shielded rooms) (other feed throughs on request)

 Data Sheet BD 9501

CA 9607 Universal Calibration Adapter for Current Clamps

· Universal calibration adapter for current clamps

 · test jig for ferrites

 Data Sheet CA 9607

CA 9608 Universal Calibration Adapter


· Universal calibration adapter for e.g. the following current clamps:

 · R&S ESV-Z1, Prodyn, IT-050-1

 · length and height settable

 Data Sheet CA 9608

CAP 10 10 µF Capacitor for NNBM 8124

· 10 µF Capacitor for NNBM 8124

· 500 V (AC)

· 400 Hz

· DEF STAN 59, DO 160

 Schwarzbeck CAP 10 10uF Capacitor for NNBM LISN Data Sheet

CAP 10 8226-2 10 μF capacitor for NNBL 8226-2 LISN

To be compliant to the standard MIL 461F (method CS 101-4 and CS 106-3) a 10 μF capacitor like the CAP 10 8226-2 has to be connected to the mains connectors of the LISN.



 Schwarzbeck CAP 10 8226 2 10uF Capacitor for NNBL 88226 2 LISN Data Sheet



CCA Product Transport Cases

 · CCA product transport cases keep your equipment safe, at any time. During transport or for safe storage

 · Individual for your product

 · A combination of products in one case are possible

 · More information about CCA and some examples are
shown in the Data Sheet

 Data Sheet CCA

CISPR 17 Equipment

· Transformers

 · fixtures and adapters to measure filters

 · ferrites and other passive components.

 · Detailed product list and data sheets on request.

 Data Sheet CISPR 17 Equipment

CP 9610 – Current Sensor

The current sensor CP 9610 can measure up to 40 A in a frequency range from DC – 1 MHz. It is galvanically isolated and can withstand a maximum voltage of 210 VPK / VDC. The internal resistance of the conductive path is less than 3 mΩ, providing low power loss. The hall transducer is temperature compensated and allows high accuracy over temperature.



Frequency Range:	DC – 1 MHz
Output Connector:	BNC (1 MΩ)
Current Sensing Range:	-40 A – +40 A
Nominal conversion factor:	50 mV/A
Internal Conductor Resistance:	< 3 mΩ
Typical Output Error:	±3 %
Dimension:	105 x 44 x 115 mm
Typical Operation Time:	24 h
EuT Connector:	Wing terminals
Power Supply:	3.7 V, 2.6 Ah Lithium Ion
Weight:	430 g



 Schwarzbeck CP 9610 – Current Sensor Data Sheet



CVP 9222 High Impedance Capacitive Voltage Probe

 · High Impedance Capacitive Voltage Probe according to to CISPR 22

 · EN 55022 C 1.3

 · Frequency range: 9 kHz – 100 MHz

Options:

 · Option ACS 110:Charger ACS 110 for CVP 9222

 · Option CAL 9222: Calibration Adapter for CVP 9222

 Data Sheet CVP 9222

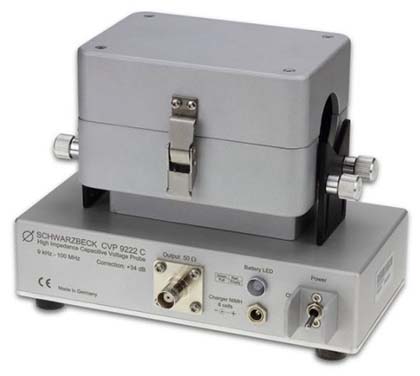

CVP 9222 C High Impedance Capacitive Voltage Probe



High Impedance Capacitive Voltage Probe acc. to

CISPR 22

EN 55022 C 1.3

Frequency range: 9 kHz – 100 MHz

Options:

 · Option ACS 110: Charger ACS 110 for CVP 9222, CVP 9222 B and CVP 9222 C

 · Option CAL 9222 B: Calibration Adapter for CVP 9222, CVP 9222 B and CVP 9222 C

 Schwarzbeck CVP 9222 C High Impedance Capacitive Voltage Probe Data Sheet



HPF High Pass Filter

 · High Pass Filter

 · 35 – 1000 MHz

 · Insertion loss at 27.12 MHz type 100 dB

 Data Sheet HPF

HPF 150 k High Pass Filter

The HPF is a passive LC-Filter with female N-connectors in shielded metal housing with very steep slope according to CISPR 16-1-1.
The main application is the elimination of noise below 150 kHz for conducted interference voltage measurements.
Particular features are high pulse load capacity and dielectric strength.

Specifications

Frequency Range	9 kHz – 30 MHz
Fundamental frequency:	150 kHz
Nominal impedance:	50 Ω
Continuous power:	100 W
Passband loss:	< 1.5 dB
Passband VSWR:	< 2
Stopband loss:	>50 dB @ ≤ 130 kHz
Housing material:	Aluminium
Housing dimensions: (with connector)	50 x 105 x 240 mm
Weight:	860 g
Connector:	2 x N female

 Schwarzbeck HPF 150 k High Pass Filter Data Sheet



KU 9608 Coaxial and Line Switch

 · Coaxial and line switch for measurement of the attenuation of fluorescent lighting fittings

 Data Sheet KU9608

SW 9602 Current Transformer

 · Current Transformer

 · shielded

 · 0.01 – 200 MHz

 · Transfer Impedance: 1 Ohm for wires up to 6.5 mm

 Data Sheet SW 9602

SW 9603 Current Transformer

 · Current Transformer

 · shielded

 · 9 kHz – 150 MHz

 · Transfer Impedance: 1 Ohm for wires up to 14 mm

 Data Sheet SW 9603

TF 130-150 Test Fixture for Ford RI 130/ 150



 · Test Fixture for Ford RI 130/ 150 Per EMC-CS-2009

 Data Sheet TF 130-150
