MagTest System

System to test the immunity against magnetic fields according with MIL-461 E, ISO 11452-8, EN 61000-4-8, SAE J551-17 etc.

The system components will be individually configured for your requirements.



The Mag Test is a System to generate magnetic fields and to perform tests regarding the susceptibility against magnetic fields in accordance with MIL-STD-461E (RS101), MIL461F, ISO 11452-8, EN 55103-1/2, EN 61000-4-8, SAE J1113-22 and other military or civil standards.
Most automotive manufacturers have derived their own standards, among them: Peugeot Citroen B217110, Renault 36-00-808, Ford ES-XW7T-1A278-AC and many others.
A further application is the calibration of magnetic loop antennas or sensors and the usage for scientific purposes.

 MagTest System Data Sheet Data Sheet

 Components overview MagTest System Data Sheet



To learn more about the the Mag Test System and software, please see the following links to a video tutorial>

The MagTest video tutorials can be viewed on our YouTube channel (I suggest you to select the 720p option in order to be able to read the text very well).

Part 1: https://www.youtube.com/watch?v=bVo5yciBKNI -> this is a general overview to the software and an introduction to its main features;

Part 2: https://www.youtube.com/watch?v=uNL0GM44ltM -> the setup of the hardware´s components is explained in an effective way in just 3 minutes;

Part 3: https://www.youtube.com/watch?v=6tQtsRcvEzM -> the components of the system «talk» to your computer by means of the GPIB protocol: in this video I explain to set the GPIB device;

Part 4: https://www.youtube.com/watch?v=XDkyPqW_YaM -> in this video you will learn how to configure the advanced settings of the software in order to be ready for a test;

Part 5:  https://www.youtube.com/watch?v=gjoJ4EknwxQ-> in this episode we will finally perform a test with the Mag Test System.



LFPA 9733 Power Amplifier

The LFPA 9733 B is a multi-purpose power amplifier

and can be used within the frequency range from

DC 5Hz – 1MHz.

Typical applications are magnetic immunity testing

according to automotive standards or MIL-461 E or F.



Frequency range (nominal): DC – 5Hz – 1MHz

Gain at 8Ω ohm impedance: 26 dB ±3 dB

Schwarzbeck Maximum Magnetic Field Strenght of HHS 5202-9 with LFPA 9733 B



 LFPA 9733 B Power Amplifier Data sheet

 Schwarzbeck Overview MagTest-System combinations for Immunity Testing Data sheet



NFPA 9730 Power Amplifier – REPLACED BY THE LFPA 9733

The NFPA 9730 is a multi-purpose power amplifier and can be used within the frequency range from DC to 250 kHz.

Typical applications are magnetic immunity testing according to automotive standards or MIL-461F.

· Frequency range (nominal): DC – 250 kHz
· Gain at 8
ohm impedance: 26 dB ±3 dB

 Data Sheet NFPA 9730



NFCN 9731 Compensation Network – REPLACED BY THE NFCN 9734

The primary function of the compensation network NFCN 9731 is to provide a serial compensation of the inductance of the HHS 5206-16. Thus the currents needed to produce the desired field strength can be archived using relatively low voltages.

The compensation capacitor of the NFCN 9731 reduces the overall impedance of the series circuit with the Helmholtz coil HHS 5206-16 at the wanted operating frequency and allows currents up to 30 Arms at a generator voltage of less than 40 Vrms.

· Max continuous current: up to 32 Arms

· Capacitance range: 1.5 nF – 300 µF

· Frequency range: DC – 150 kHz

· Integrated shunt: 1 Ohm / 800 W

 Data Sheet NFCN 9731



NFCN 9734 Compensation Network

The primary function of the compensation network NFCN 9734 is to provide a serial compensation of the inductance of Helmholtz coils (e.g. the HHS 5206-16). Thus the currents needed to pro-duce the desired field strength can be achieved using relatively low voltages.

An integrated shunt allows measuring the coil-current and serves as minimum load for the power amplifier.



Technical data if used with HHS 5206-16:
Max continuous current:	Bis 32Arms Up to 32 Arms
Dimensions:	447 mm x 470 mm x 191 mm
Capacitance range:	270 pF – 480 µF
Frequency range:	DC – 200 kHz
Shunt:	1 W / 800 W
Weight:	17.5 kg

  NFCN 9734 Compensation Network Data Sheet



NFCN 9732 Compensation Network (Replaced by NFCN 9734)

The compensation network NFCN 9732 85 kHz consists of a high current/ high voltage variable capacitor. The compensation capacitor reduces the total impedance of the series circuitry consisting of the Helmholtz coil HHS 5206-8 and the NFCN 9732 85 kHz at the operating frequency band of 80-90 kHz. It allows continuous currents of up to 15 Arms at generator voltages of less than 40 Vrms. Application: Immunity test induktive changing 85 kHz

  Schwarzbeck NFCN 9732 85 kHz – Compensation Network Data Sheet

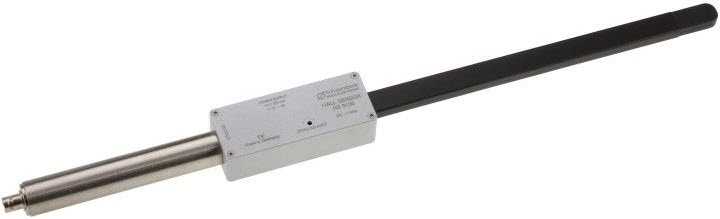

HS 5136 – Hall-Sensor

The hall probe HS 5136 can be used to measure magnetic field strengths for immunity tests according to MIL STD 461 and various automotive standards. It measures static and dynamic magnetic fields with a field strength up to 8000 A/m. The HS 5136 is a transverse probe, i.e. the magnetic flux lines must be orthogonal to the longitudinal probe axis and orthogonal to the surface of the hall-element to obtain the maximum reading.

Nominal frequency range:	DC – 10 kHz
Useable frequency range:	DC – 200 kHz
Nominal measuring range:	0 – 7000 A/m
Extended measuring range:	0 – 8000 A/m
Nominal conversion factor:	1 (A/m)/mV
Load impedance:	>2 kΩ
Non-linearity.:	0.8 %
Power supply:	+(27 – 33) V / 50 mA
Housing:	Aluminium
Dimensions:	ca. 470 x 42 x 28 mm
Mounting:	22 mm Tube
Weight:	310 g
Connector:	BNC-female

  HS 5136 Hall Sensor for Magnetic Field Measurements Data Sheet



SHUNT 9571

· Low inductive precision high power shunt

· 1 x 0.25 Ohm / 800 W

· 1 x 1 Ohm / 800 W

· 2 x 0.5 Ohm / 400 W

· respectively for best load matching at lower frequency end

· cooling fans

 Schwarzbeck SHUNT 9571 Data Sheet
