IGUF 2910 Battery driven High Power Pulse Generator

· Battery driven High Power Pulse Generator

· Pulse Repetition Frequency 300 Hz

· weighted CISPR Level 80 dBµV

· (Quasi peak, 120 kHz IF-BW)

· Broad band signal source

· up to 300 (1000) MHz

· w. 0.5 ns Pulses of 300 V at 50 Ohm

 Schwarzbeck IGUF 2910 Pulse Generator Data Sheet

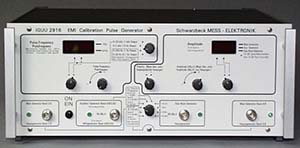

IGUU 2916 Universal Calibration Pulse Generator – Discontinued. Replaced by the IGUU 2918

· IGUU 2916 Universal Calibration Pulse Generator according to CISPR 16 for Bands A, B, C, D (9 kHz – 1000 MHz) especially for EMI Receiver Tests (Pulse weighting, Overload).
· Signal generator 100 kHz, 1 MHz, 10 MHz, 100 MHz (60 dBµV)
· Pulse Repetition Frequency 0.1 Hz – 200 Hz (20 kHz)
· Output Level adjustable in 1 dB steps GPIB Interface.



Options:
Option: RecTest Software Receiver Test Software for IGUU 2916 or 2918 signal generator and EMI receiver to perform an automatic calibration of an EMI receiver according to CISPR 16-1-1

 Schwarzbeck EMI Calibration Pulse and Sine Wave Generator IGUU 2916 Data Sheet

 Schwarzbeck Calibration Pulse and Sine Wave Generator IGUU 2916 Instruction Manual

 Schwarzbeck RecTest software Data Sheet

 Schwarzbeck Coaxial Switching Unit KU 9618 for Calibration pulse generator IGUU 2918 Data Sheet

 Schwarzbeck Difference between IGUU 2918 and IGUU 2916 Data Sheet



IGUU 2918 EMI Calibration Pulse Generator

· IGUU 2918 Calibration-Pulse Generator according to CISPR 16 for Band A, B, C, D (9 kHz-1000 MHz).
· To calibrate the pulse response of EMI receivers.
· Pulse repetition frequency main generator 0.1 – 200 Hz (auxiliary generator up to 1 MHz) with IEEE-488 Interface.

 Schwarzbeck Calibration Pulse Generator IGUU 2918 Instruction Manual

Options:
Option: RecTest Software Receiver Test Software for IGUU 2916 or 2918 signal generator and EMI receiver to perform an automatic calibration of an EMI receiver according to CISPR 16-1-1.

 Schwarzbeck RecTest software Data Sheet

Option: KU 9618 Coaxial Switching Unit for automatic performance tests with IGUU 2918, N-Connectors female.

 Schwarzbeck Coaxial Switching Unit KU 9618 for Calibration pulse generator IGUU 2918 Data Sheet

 Schwarzbeck Difference between IGUU 2918 and IGUU 2916 Data Sheet



LGA 9802 Automatic Charging Unit

Automatic Charging Unit 230 V for IGUF 2910

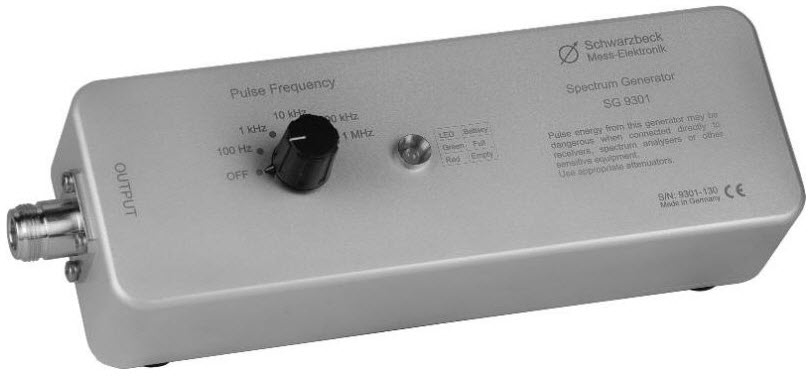

SG 9301 Spectrum Generator

· SG 9301 Spectrum Generator
· 30-1000 MHz
· spectrum lines switchable 100 Hz – 1 MHz
· N-female connector
· charger ACS 110 required
· main application:
reference radiator (antenna required e.g. UBAA 9114 with BBVU 9135)

 Schwarzbeck SG 9301 Spectrum Generator Data Sheet

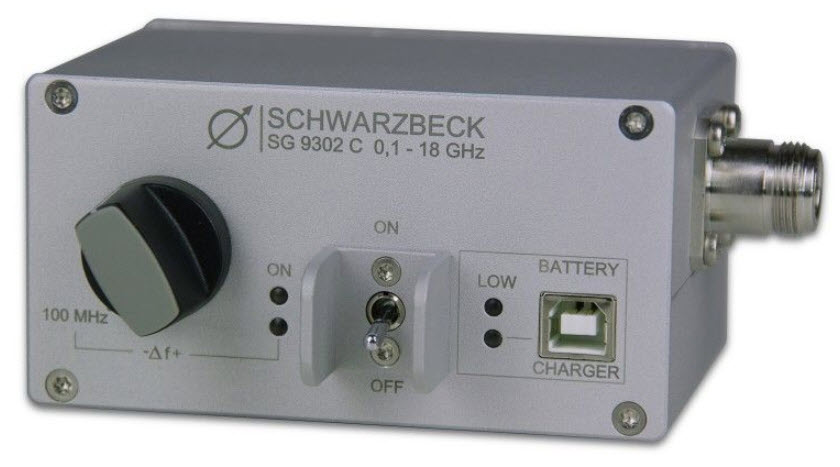

SG 9302 C Spectrum Generator

The comb-generator SG 9302 C produces a frequency spectrum consisting of lines with 100 MHz spacing up to 18 GHz. In combination with an antenna it can be used as an emission source for testing open area test sites, anechoic chambers or GTEM-cells. Single components like measuring receivers, spectrum analysers, cables and attenuators can be tested as well.



Frequency range:	0.1 – 18 GHz
Frequency error:	±1.5×10-6 (-20°C – +70°C)
Connector:	N, 50 Ω
Dimension BxHxT:	105 x 80 x 130 mm
Typ. operation time:	8 h
Power supply:	3.7 V, 2.6 Ah LiOn
Weight (incl. battery):	430 g

 Schwarzbeck SG 9302 C Comb Generator Data Sheet



SG 9303 – Comb Generator, 6 GHz

The comb generator SG 9303 is battery powered. It provides a frequency comb up to more than 8 GHz. The spacing between the spectral lines can be switched between 10 MHz and 100 MHz. A quartz crystal provides accurate frequencies. Due to its handy size and little weight as well as the mains independent power supply the SG 9303 is a great reference radiation source. In conjunction with a transmit antenna the comb generator plays the role of an artificial reliable EUT, while the rest of the fieldstrength measurement setup, consisting of receive antenna, cable, preamplifier and receiver or spectrum analyzer can be verified.

The SG 9303 is also suitable to check the functionality of EMI test receiver or spectrum analyzers. Cables and attenuators can also be tested.



Frequency range:	1 GHz – 6 GHz
Usable Frequency range:	10 MHz – 8 GHz
Puls duration at 10 MHz:	ca. 60 ns
Puls duration at 100 MHz:	ca. 7 ns
Puls frequencies:	10 MHz, 100 MHz
Connector:	N female 50 Ω
Frequency error:	typ. 20 ppm
Operating time:	8 h
Weight:	690 g

 Schwarzbeck SG 9303 – Comb Generator, 6 GHz Data Sheet
