Schwarzbeck LISN / AMN Solutions
Schwarzbeck family of LISN and AMN Solutions
Schwarzbeck LISN Overview Matrix
|
Model |
Topology |
Impedance |
Current max. |
Paths |
Options |
|
|
V-LISN |
(50 µH + 5 Ω) || 50 Ω |
2 x 10 A |
2 |
|
||
|
V-LISN |
(50 µH + 5 Ω) || 50 Ω |
2 x 16 A |
2 |
RC, PLC |
||
|
V-LISN |
(50 µH + 5 Ω) || 50 Ω |
2 x 16 A Schuko |
4 |
RC |
||
|
V-LISN |
(50 µH + 5 Ω) || 50 Ω |
2 x 16 A Schuko and |
4 |
RC |
||
|
V-LISN |
(50 µH + 5 Ω) || 50 Ω |
4 x 64 A CEKON |
4 |
RC |
||
|
|
||||||
|
Model |
Topology |
Impedance |
Current max. |
Paths |
Options |
|
|
V-LISN |
(50 µH + 5 Ω) || 50 Ω |
4 x 50 (100) A |
4 |
RC, Hochstrom, 400/700V, Lüfter |
||
|
V-LISN |
(50 µH + 5 Ω) || 50 Ω |
2 x 50 A |
2 |
|
||
|
V-LISN |
50 µH || 50 Ω |
4 x 200 (300) A |
4 |
RC, 400/700 V, Lüfter |
||
|
V-LISN |
50 µH || 50 Ω |
2 x 200 (300) A |
2 |
RC,TC |
||
|
V-LISN |
50 µH || 50 Ω |
4 x 400 (500) A |
4 |
RC |
||
|
V-LISN |
50 µH || 50 Ω |
1 x 800 (1000) A |
single |
|
||
|
|
||||||
NNHV-8123 Series of HV-LISNs acc. to CISPR 25 Ed. 4 or BMW GS 95025-1 |
||||||
|
Model |
Topology |
Impedance |
Current max. |
Paths |
Options |
|
|
V-LISN |
5µH || 50 Ω |
70 (100) A |
single |
|
||
|
V-LISN |
5µH || 50 Ω |
200 A |
single |
|
||
|
V-LISN |
5µH || 50 Ω |
400 A |
single |
|
||
|
NNBM 8124 Series of Single Path LISN (Automotive) CISPR 25 / ISO 7637 |
||||||
|
Model |
Topology |
Impedance |
Current max. |
Paths |
Options |
|
|
V-LISN |
(5µH + 1 Ω) || 50 Ω |
70 (100) A |
single |
N-connector |
||
|
V-LISN |
(5µH + 1 Ω) || 50 Ω |
200 A |
single |
N-connector |
||
|
V-LISN |
(5µH + 1 Ω) || 50 Ω |
400 A |
single |
N-connector |
||
|
V-LISN |
(5µH + 1 Ω) || 50 Ω |
800 A |
single |
N-connector |
||
|
V-LISN |
5 µH || 50 Ω |
70 (100) A |
single |
DO-160 |
||
|
NNBM 8124-2 Dual Path LISN |
||||||
| NNBM 8124-2 | V-LISN | (5µH + 1 Ω) || 50 Ω ±10% | 70 (100) A | DUAL | ||
|
|
||||||
|
TSC 7042 Toyota standard TSC7042G |
||||||
|
Model |
Topology |
Impedance |
Current max. |
Paths |
Standard |
|
|
AMN |
5 µH || 50 Ω |
70 (100) A |
Single |
Toyota standard TSC7042G |
||
BAN Broadband Artificial Networks
|
||||||
|
Model |
Topology |
Current max. |
Paths |
|||
|
BAN broadband artificial network
|
8 A (DC) |
single |
|
|||
|
BAN broadband artificial network
|
30 A (DC) |
single |
|
|||
|
DC-blocking capacitor
|
30 A (DC) |
single |
|
|||
HV-LISN acc. to CISPR 25 Ed. 4 or BMW GS 95025-1 |
||||||
|
Model |
Topology |
Impedance |
Current max. |
Paths |
Options |
|
|
V-LISN |
5µH || 50 Ω |
70 (100) A |
single |
|
||
|
V-LISN |
5µH || 50 Ω |
200 A |
single |
|
||
|
V-LISN |
5µH || 50 Ω |
400 A |
single |
|
||
|
V-LISN |
5µH || 50 Ω |
800 A |
single |
|
||
Accessories for Automotive LISN |
||||||
|
10 μF capacitor for NNBL 8226-2 LISN and for military equipment |
||||||
|
|
||||||
|
Shielded Enclosure for Automotive LISN
|
||||||
|
|
||||||
|
Model |
Topology |
Impedance |
Current max. |
Paths |
Options |
|
|
V-LISN |
(5µH + 1 Ω) || 50 Ω |
70 (100) A |
single |
N-connector |
||
|
V-LISN |
(5µH + 1 Ω) || 50 Ω |
200 A |
single |
N-connector |
||
|
V-LISN |
5 µH || 50 Ω |
70 (100) A |
single |
|
||
|
V-LISN |
5 μH || 50 Ω ±20 % |
280 A |
single |
N-connector |
||
|
|
||||||
|
Type |
Topology |
Impedance |
Current max. |
Paths |
Options |
|
|
V-LISN |
(50 µH + 5 Ω) || 50 Ω |
20 A |
single |
|
||
|
V-LISN |
(50 µH + 5 Ω) || 50 Ω |
70 (100) A |
single |
|
||
|
V-LISN |
(50 µH + 5 Ω) || 50 Ω |
70 (100) A |
single |
|
||
|
V-LISN |
(50 µH + 5 Ω) || 50 Ω |
70 (100) A |
2 |
|
||
|
V-LISN |
(50 µH + 5 Ω) || 50 Ω |
200 A |
single |
|
||
|
V-LISN |
(50 µH + 5 Ω) || 50 Ω |
300 A |
single |
|
||
|
V-LISN |
(50 µH + 5 Ω) || 50 Ω |
800 (1000) A |
single |
|
||
|
|
||||||
|
Type |
Topology |
Impedance |
Current max. |
Paths |
Options |
|
|
T-ISN |
150 Ω ± 20 Ω |
600 mA DC (pair) |
2 |
|
||
|
T-ISN |
150 Ω ± 20 Ω |
600 mA DC (pair) |
2 |
|
||
ISN for PLC |
150 Ω ± 20 Ω |
|
|
This ISN is built according to the standard EN 50561-3, Annex B, Figure B.1. |
||
|
T-ISN |
150 Ω ±20 Ω |
1 A (DC) |
single |
|
||
|
T-ISN |
150 Ω ±20 Ω |
1 A (DC) |
8 |
|
||
|
|
|
|
|
|
||
|
T-ISN |
150 Ω ± 10% |
3 A (AC) |
2 |
|
||
|
T-ISN |
150 Ω ± 20 Ω |
600 mA DC (pair) |
2 |
|
||
|
Type |
Topology |
Impedance |
Current max. |
Paths |
Options |
|
|
|
(1.5 µH) || 50 Ω |
10 A |
2 |
|
||
|
|
(2 µH) || 50 Ω |
10 A |
2 |
|
||
|
|
(0.7 µH) || 50 Ω |
10 A |
2 |
|
||
|
(0.7 µH) || 50 Ω |
10 A |
2 |
||||
|
V-LISN |
1 Ω |
16 A |
single |
|
||
|
|
150 Ω ±20 Ω |
1.4 A DC |
2 |
|
||
|
PV-LISN |
150 Ω common |
50 A (100 A with opt. fans) |
2 |
Fans |
||
|
PV-LISN |
150 Ω common |
200 A |
2 |
|
||
|
Tempest- V-LISN |
1.4 kΩ |
16 A |
2 |
TEMP 8401 |
||
|
Tempest- V-LISN |
1.4 kΩ |
16 A |
2 |
Wing Terminals installed on the front of a LISN |
||
LISN OVERVIEW
Features of LISN (Line Impedance Stabilization Networks) and AMN (Artificial Mains Network):
• Supplies the neccessary mains voltage (AC or DC) and current for the Equipment under Test (EUT).
• Couples interference voltage generated by the EUT and supplies it to the receiver.
• Provides well defined RF-impedance to the Equipment under Test (EUT)
• Keeps away unwanted disturbance coming from mains (filter)
• Protects the mains from unwanted disturbance voltage generated by the EUT
Figure 1: Measurement setup conducted disturbances
We can distinguish three types of LISN:
• V-LISN
• T-LISN
• Delta-LISN

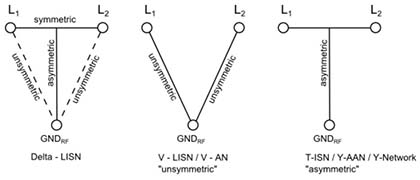

Figure 2 shows the voltage relationship of a two-line-system with separate ground.
The V-LISN measures the unsymmetric disturbance voltage between the two lines L1 and ground or L2 and ground respectively. V-LISN are also called V-ANM (Artificial Mains Network). The V-LISN is by far the most commonly used LISN.
There are two types of V-LISN with different impedances.
The V-LISN with a 5μH inductance (CISPR 16-1-2, CISPR 25, ISO 7637, DO160) are normally used to measure equipment for vehicles, boats and aircrafts connected to onboards mains with DC or 400 Hz.
The other Type of V-LISN with 50 µH according to CISPR 16-1-2, MIL STD 461 and ANSI C63.4 is intended to operate at mains frequencies of 50 Hz or 60 Hz.
The T-ISN (Figure 2 right) measures the asymmetric disturbance voltage (common mode voltage) and provides it to an EMI Receiver.
T-ISN is normally used for measuring telecommunication and data transmission equipment connected to symmetrical lines as e.g. twisted pairs.
Figure 2: LISN / AN Topology
