Com-Power-Absorbing-Clamps
The absorbing clamps also known as ferrite clamps are used for measuring disturbance power on power input lines as well as other auxiliary I/O lines..
CLA-050 Absorbing Clamp 10mm 30 MHz to 1 GHz
The Absorbing clamp CLA-050 is designed with a 10 mm cable aperture for disturbance power measurements as required per ISPR 13 [EN 55013], CISPR 32 [EN 55032] and CISPR 14 [EN 55014.
It can also be used to measure screening attenuation of RF coaxial cables.
Specifications:
· Product Model: CLA-050
· Frequency Range: 30 MHz to 1 GHz
· Clamp Factor: -4 to +5 dBpW/µV [-17 + clamp Insertion loss]
· Clamp Insertion loss: 13 dB to 22 dB
· Decoupling Factor (DF): >21 dB
· Decoupling Factor (DR): >30 dB
· RF Connector: 50Ω – BNC (female)
· Operating Current: 30 A (max.)
· Operating Temperature: 40°F to 104°F (5°C to 40°C)
· Aperture Diameter: 0.5
Com-Power CLA-050 and CLA-150 Absorbing Clamp Data Sheet
Com-Power CLA-050 and CLA-150 Absorbing Clamp Manual

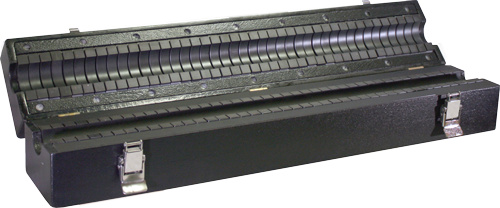

CLA-150
The Absorbing clamp CLA-150 is designed with a 32 mm cable aperture for disturbance power measurements as required per ISPR 13 [EN 55013], CISPR 32 [EN 55032] and CISPR 14 [EN 55014]. It can also be used to measure screening attenuation of RF coaxial cables.
Specifications:
· Frequency Range: 30 – 1000 MHz
· Impedance: 50 Ohm
· Connector Type: BNC (f)
· Max cable diameter: 32 mm (1.26 inches)
· Aperture size: 34.9 mm (1.37 inches)
· Weight: 21 lbs (9.5 Kg)
· Dimensions: 627 x 114 x 165 mm (24.7 x .4.5 x 6.5 inches)
