EOSENSE CONVERTER

Converts the optical signals received from the eoProbes to electrical signals



Kapteos eoSense Converter with 3 eoProbes

Kapteos eoSense Converter – rear view

The eoSense Converter converts the optical signals transmitted by 1, 2 or 3 eoProbes into an electrical signal that can be analyzed with an instrument like an oscilloscope, a spectrum analyzer or any other signal processing instrument.
The Kapteos eoSense Converter includes dedicated Kapteos software. And you also have the option of using dedicated instructions sent from your own software via the Ethernet port.



It includes an antenna factor (AF) real-time treatment for measuring absolute electric fields (modulus, phase).

Each eoSense is delivered with a Routine Test Report valid for 2 years.



 Kapteos eoSense Converter Data Sheet

 Application Note: E-field Measurement system basic functioning

 Application Note: E-field Measurement Technology Comparison



Kapteos offer the following 5 eoSense converters

Reference	Bandwidth	Internal amplification (option)
LF-30S	40 Hz…30 MHz	30 dB (in standard)
MF-01U	1 kHz … 1 GHz	1 kHz … 1 GHz 50 dB gain
HF-10	100 MHz … 10 GHz	100 MHz … 10 GHz 55 dB gain
HF-20	100 MHz … 20 GHz	100 MHz … 20 GHz 45 dB gain
HF-40	20 kHz … 40 GHz	100 MHz … 40GHz 48 dB gain



eoSense Converter Main specifications

Weight	≈ 9 kg (for 1 channel version without AMP)
Operating temperature	+15 … +30 °C (59 … 86 °F)
Relative humidity	≤ 95 % without condensation
Power supply	100 … 250 V AC – 50 or 60 Hz – 150 W max.
Front panel I/O	eoProbe connector: ruggedized UTS-LC (1/ch) Signal output: 50 Ω analog (1/ch): => BNC type: LF and MF versions => SMA type: HF-10 version => 3.5mm type: HF-20 version => K female type: HF-40 version Antenna factor correction 1 x LED status 1 x Laser on/off key
Rear panel I/O	1 x USB 2.0 port 1 x Ethernet port 1 x Laser interlock adapter (BNC type connector) 1 x ground screw

 Kapteos eoSense Converter Data Sheet



A FLEXIBLE DESIGN

The eoSense opto-electronic converter has been designed in a way that you could have different performances per channel, and also upgrade later on your existing version.

NOT SURE ABOUT THE PERFORMANCES?

If you are not sure about the performances of our system.
No worries! Please check our services page and discover the various possibilities that Kapteos may propose to you.



MAIN ADVANTAGES

REAL-ANTENNA FACTOR CORRECTION

This unique feature takes into account the full measurement channel to minimize the errors like temperature drift, vibrations, fiber optic. This feature allows to reach very high performances.

Fully calibrated for better performances Each system delivered by Kapteos is calibrated for a period valid for 2 years. A calibration certificate is provided in standard. This feature allows to reach very high performances.



EASY OPERATION

Less than few minutes is needed to start an electric field measurement thanks to the user-friendly software, opto-electronic converter and wide choice of accessories.

UP TO 100 METERS OF FIBER OPTIC

Thanks to Kapteos technology, up to 100 meters of fiber optic may be used between the measured E-field and the converter. More than enough!



 Kapteos eoLink Fiber Optic Extension Data Sheet



OPTIONS FOR THE EOSENSE OPTO-ELECTRONIC CONVERTERS

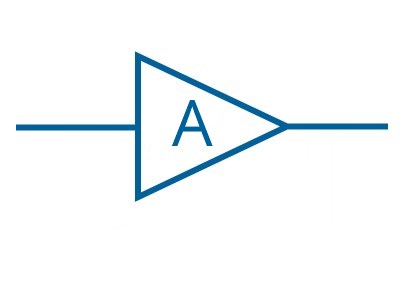

INTERNAL AMPLIFICATION OF SIGNAL: AMP



Depending of your need, Kapteos may propose you to integrate an internal amplifier to reach your required specifications of low E-field values.





ACCESORIES FOR THE EOSENSE OPTO-ELECTRONIC CONVERTERS
FIBER OPTICAL EXTENSION

The fiber optic extension is inserted between the eoSense converter and an eoProbe sensor to increase the distance up to a maximum of 100 meters. A rugged version for outdoor usage is available in standard.

 Kapteos eoLink Fiber Optic Extension Data Sheet
