HILO - TEST ACCESORIES
Accessories
In this category you will find the accessories of all our manufactured equipment.
• BCK 400 F BURST CALIBRATION KIT
• CAR ICC Bulk Current Injection Probe
• CCK – Capacitor Calibration Kit
• CCK20 Capacitor Calibration Kit
• EFTC-CK – Calibration kit for burst Coupling Clamps
• IMP8 Impedance matching network for Surge generators
• SCK 105 – Surge Calibration Kit
• SCK 105 inBox- Surge Calibration Kit
• VPS 250-16 – Variable Power Source
BCK 400 F BURST CALIBRATION KIT (Part Number 5302006)
Summary:
• Burst Calibration Kit
• Input voltage: 5 kV
• Ratio, 200/400:1
• Bandwidth: 400 MHz
The Burst Calibration Kit has been designed to measure the pulse output voltage and the pulse output current of burst generators, e.g. the EFTG 4510 or the burst generator sub-unit of the CE-TESTER. It essentially consists of a load resistor, a pulse voltage divider and a double shielded coaxial cable.
Related Standards:
IEC: IEC 61000-4-04
HILO-TEST BCK 400 F Burst Calibration Kit Data Sheet
CAR Calibration Kit (Part Number 5207078)
Summary:
• Standard loads
• According ISO

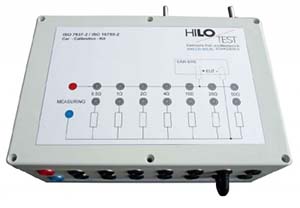

In accordance with the pulse verification requirements given in Annex C of ISO 7637-2:2011 and Annex A of ISO 16750-2:2012, test pulses generated by automotive transient generators need to be verified both under no-load (open circuit verification) and loaded conditions with specified loads.
Related Standards: ISO: ISO 7637-2, ISO 16750-2
HILO-TEST CAR Calibration Kit Data Sheet
HILO-TEST CAR Calibration Kit User Manual
CAR ICC Bulk Current Injection Probe
Summary:
• Bulk Current Injection Probe
• Bandwidth: 0,1 – 1000 MHz

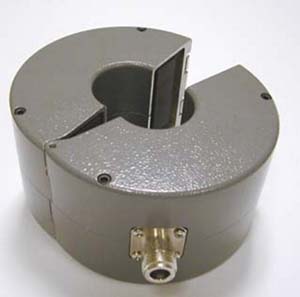

The CAR-ICC Bulk Current Injection Probe is used for BCI testing in accordance with automotive specifications as well as diagnostic bulk current testing up to 1 GHz.
CCK – Capacitor Calibration Kit (Part Number 5300088)
Summary:
• Capacitor Calibration Kit
• Input voltage: 12kV
• 27nF, 45nF, 68nF, 113nF P

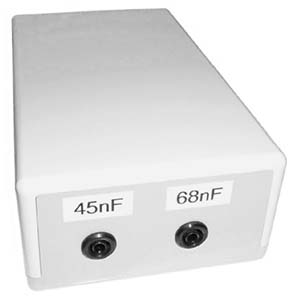

The Capacitor Calibration Kit (CCK) has been designed to measure the pulse output voltage of surge generators PG10-200, PG12-360 and PG20-100.
Capacitor Calibration Kit (CCK) Data Sheet
CCK20 Capacitor Calibration Kit (Part Number 5300088)
Summary:
• Capacitor Calibration Kit
• Input voltage: 20kV

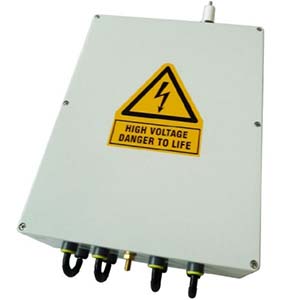

• 50nF, 50nF, 33nF, 23nF
The Capacitor Calibration Kit 20 (CCK20) has been designed to measure the pulse output voltage of surge generators PG10-200, PG12-360 and PG20-100.
Capacitor Calibration Kit 20 (CCK20) Data Sheet
EFTC-CK Calibration kit for Burst Coupling Clamps (Part Number 5201026)
Summary:
• Calibration kit for burst coupling clamps
• According ISO

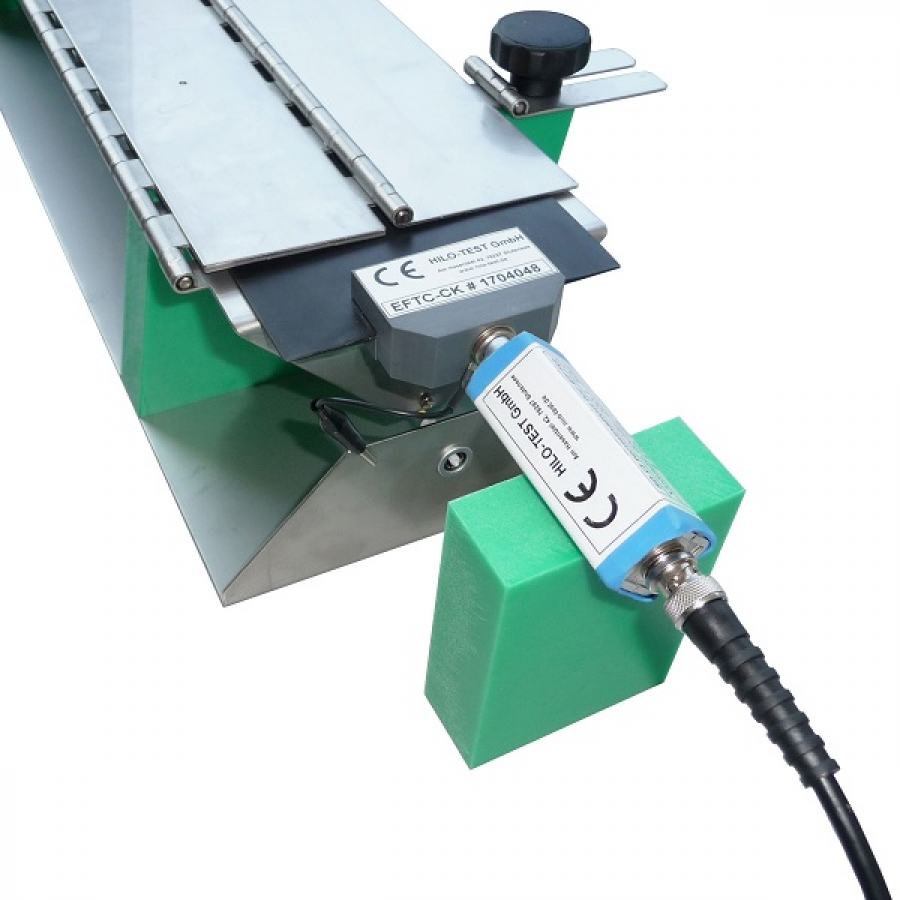

The EFTC-CK is a calibration kit for burst/EFT coupling clamps as specified in IEC 6100-4-4:2012. It has been designed for calibration of coupling clamps like EFTC2012. The set consists of a transducer plate and a termination bracket (connecting adapter).
Related Standards:
IEC 61000-4-04
HILO-TEST EFTC-CK Calibration kit for Burst Coupling Clamps Data Sheet

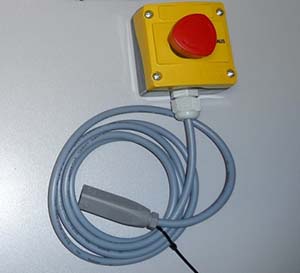

Emergency Stop Switch / IPG PG NA (Part Number 5204082)
Summary:
• Emergency stop switch
• for safety circuit
• latching
• with rotary release
Emergency stop switch for interrupting / close the internal safety circuits.
Summary:
• Foot switch
• ergonomic
• robust

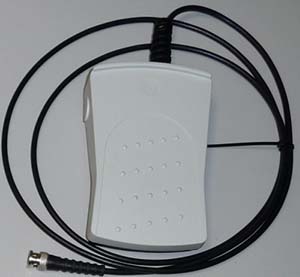

• Big button Foot switch to trigger certain generator functions.
Summary:
• Helmholtz Coil
• Power frequency- and pulsed magnetic fields

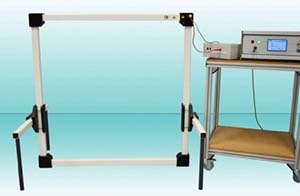

Air coil designed for Generation of: Power frequency magnetic fields according to IEC 61000-4-8 Test levels 3 / 10 / 30 A/m (up to 150 A/m with type HI 102) Pulsed magnetic fields according to IEC 61000-4-9 Test levels 100 / 300 / 1000 A/m (up to 2200 A/m with type HI 102) Wave shape 8/20μs
Related Standards:
IEC: IEC 61000-4-08, IEC 61000-4-09
HILO-TEST HI 100 Helmholtz Coil Data Sheet
HI 200 Helmholtz Coil (Part Number 5201006)
Helmholtz Coil According to IEC 61000-4-8 and IEC 61000-4-9
You can position the Hi 200 coil in vertical (picture) or in horizontal position to your test object and fix it with lamps or brace supports.
Air coil designed for Generation of:
• Power frequency magnetic fields acc. to IEC 61000-4-8 Test levels continuous 3 / 10 / 30 / 100 / 300 A/m Test level 1000 A/m short, with special transformer
• Pulsed magnetic fields acc. to IEC 61000-4-9 Test levels 100 / 300 / 1000 A/m Wave shape 8/20μs
Related Standards:
IEC: IEC 61000-4-8 and IEC 61000-4-9
HILO-TEST HI 200 Helmholtz Coil Data Sheet
IMP8 Impedance matching network for Surge Generators (Part Number 5201028)

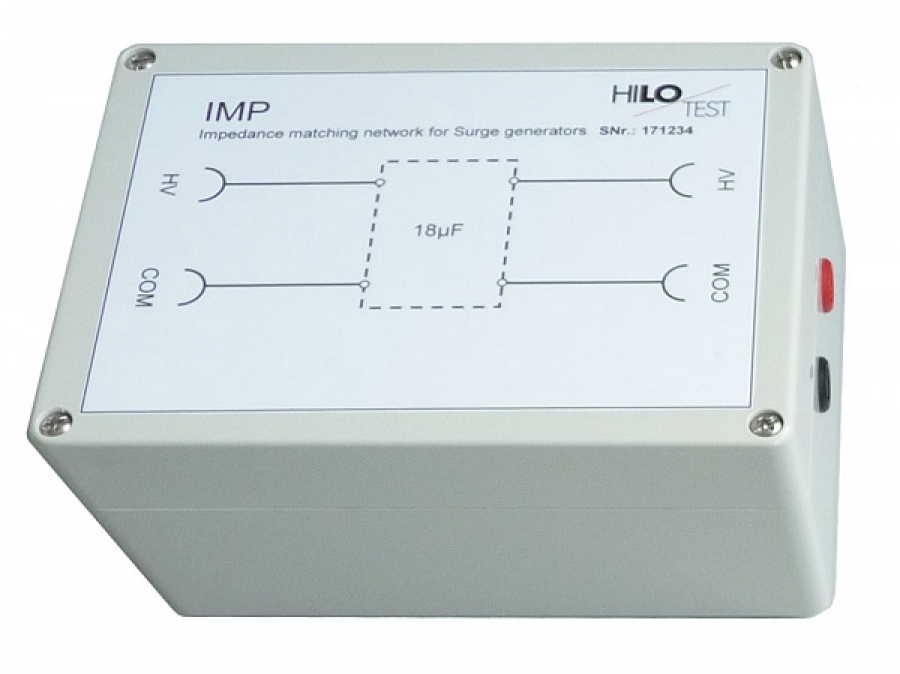

The external impedance IMP8 is the impedance, required for the pulse specifications according to standard IEC 61000-4-5 Ed.3, for measuring the pulse output voltage of surge generators. Additional
Related Standards:
IEC:IEC 61000-4-05
HILO-TEST IMP8 Impedance matching network for Surge Generators Data Sheet
Summary:
• Safety test cabinet
• Test voltage: 6 kV / 12 kV
• Dimensions W*H*D: 470 * 280 * 490 mm³
The safety test cabinet PA 503 is designed for high-voltage testing of components and PCB’s etc. The transparent cabinet prevents accidental contact with live parts of the test object, yet allows observation of the test object during testing.
HILO-TEST PA 503 Safety Test Cabinet Data Sheet

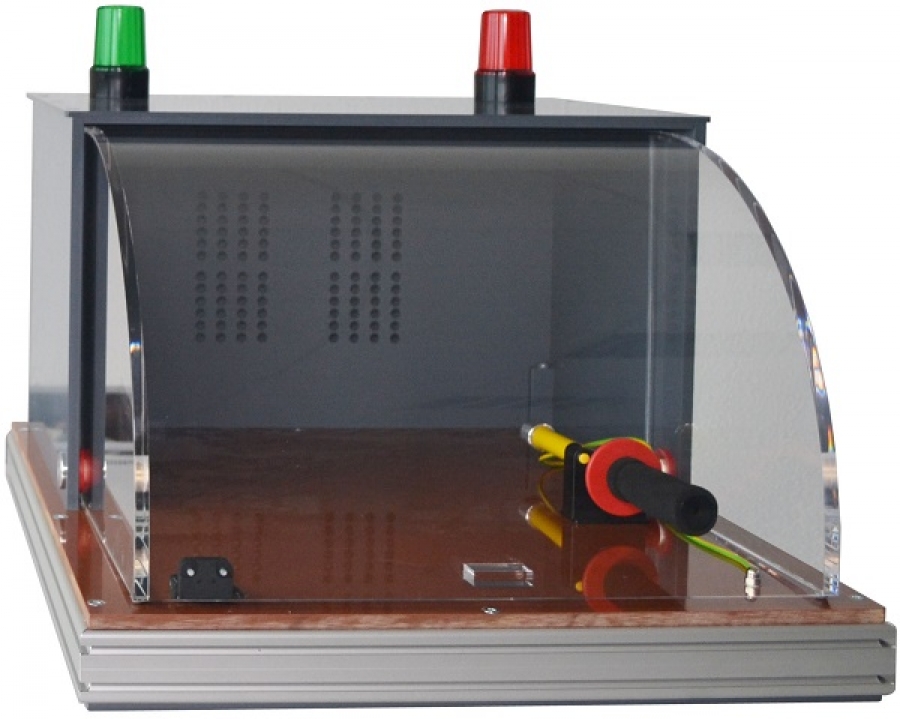

PA 504 Safety test cabinet (Part Number 5300038)
Summary:
• Safety test cabinet
• Test voltage: 6 kV / 12 kV
• Dimensions W*H*D: 555 * 480 * 600 mm³
The safety test cabinets PA 50* are designed for high-voltage testing of components and PCB’s etc. The transparent cabinets prevents accidental contact with live parts of the test object, yet allows observation of the test object during testing.
HILO-TEST PA 504 Safety Test Cabinet Data Sheet
Summary:
• Safety test cabinet
• Test voltage: 10 kV
• Dimensions W*H*D: 440*250*500 mm³
The safety test cabinet PA 505/ PA 525 is designed for high-voltage testing of components and PCB’s etc. The transparent cabinet prevents accidental contact with live parts of the test object, yet allows observation of the test object during testing.
HILO-TEST PA 505 Safety Test Cabinet Data Sheet
Summary:
• Safety test cabinet
• Test voltage: 12 kV
• Dimensions W*H*D: 440*250*500 mm³
The safety test cabinet PA 505/ PA 525 is designed for high-voltage testing of components and PCB’s etc. The transparent cabinet prevents accidental contact with live parts of the test object, yet allows observation of the test object during testing.
HILO-TEST PA 525 Safety Test Cabinet Data Sheet
Summary:
• DUT switchover
• High voltage test of devices
For high-voltage testing of components, a DUT switchover is available for different pulse generators.
By using the PU 12 A-B DUT Switchover the testing time be significantly reduced and increased the throughput significantly. The specimens are contacted via test adapter that new line during the test can be fitted and replaced quickly. Direct testing of 8/10/12 or 15 individual specimens or the «Differential / common mode» testing the a / b wires of IT equipment can be realized will. The control of the PU 12 A-B DUT Switchover done from the test generator.
The specimens are covered during the test by a safety test.
Of the Following the test generator is carried coaxially on the back of the units. To this Thus achieved a high degree of personal safety for the operating personnel.
Block diagram, by way of example:
To monitor the test quantities can pulse voltage divider and / or Current viewing resistors are integrated into the PU 12 A-B DUT Switchover.
HILO-TEST PU 12 A-B DUT Switchover Data Sheet
SCK 105 – Surge Calibration Kit (Part Number 5302005)
Summary:
• Surge Calibration Kit
• Input voltage: 12kV
• Ratio: 1000:1
• Bandwidth: 10MHz

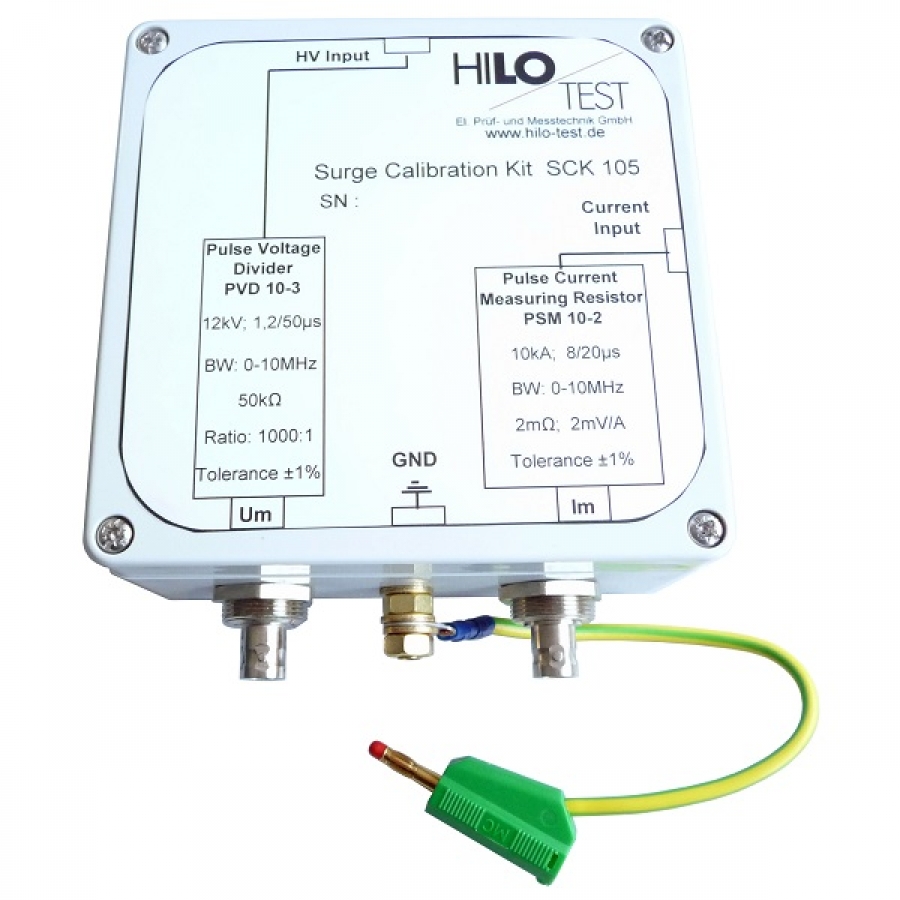

The Surge Calibration Kit has been designed to measure the pulse output voltage and the pulse output current of surge generators, e.g. a combination wave generator. It essentially consists of a pulse voltage divider, a pulse current measuring resistor and a double shielded coaxial cable
Surge Calibration Kit 105 (SCK 105) Data Sheet
SCK 105 inBox (Surge Calibration Kit 105) (Part Number 5302005)
Summary:
• Surge Calibration Kit
• Input voltage: 12kV
• Ratio: 1000:1
• Bandwidth: 10MHz
The Surge Calibration Kit has been designed to measure the pulse output voltage and the pulse output current of surge generators, e.g. a combination wave generator. It essentially consists of a pulse voltage divider, a pulse current measuring resistor and a double shielded coaxial cable.
Surge Calibration Kit SCK 105 inBox Data Sheet
VPS 250-16 (Variable Power Source 250-16) (Part Number 5201005)
Summary:
• Variable Power Source
• Voltage: 0 – 250 V
• Current: 16 A

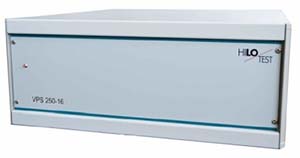

Motor-driven variable transformer, controlled by CE-TESTER, used for power supply variation according to IEC 61000-4-11.
Related Standards: IEC: IEC 61000-4-11
HILO-TEST Variable Power Source 250-16 (VPS 250-16) Data Sheet
Warning lights (Part Number 5300008)
Summary:
• Warning lamps
• red/ green
• universally Placeable Warning / signal lamps for visualizing the generator state. Signal red: «Warning Hazard», signal green: «all clear».
