High Voltage Dividers

• HVM 2015 High Voltage Measurement

• HVT-RCR Broadband High Voltage Divider Series (HVT 10-160 RCR)

• PVD 10-2 Pulse Voltage Divider

• PVD 10-3 Pulse Voltage Divider

• SCK 105 Surge Calibration Kit

• BCK 400 F Burst Calibration Kit



The High voltage divider HVT 2015 is a state-of-the-art measuring
equipment with excellent high-frequency transmission characteristics. The high-voltage impedance consists of a precise metal film resistor and a high-voltage capacitor with series
damping resistor in parallel. The measuring cable with the termination network is an essential part of the divider. The
termination network can be adjusted for an oscilloscope input impedance of 1 MΩ // 10 – 30 pF.

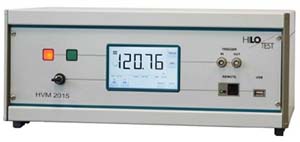

HVM 2015 High Voltage Measurement



Summary:

• High Voltage (HV) measurement equipment

• measuring up to 10 kV

• optional up to 20 KV

• with ext. HVT: up to 300 kV



The high voltage measurement instrument HVM 2015 consist of a measuring amplifier for universal use with a digital touch display, a built-in high-voltage divider for direct measurement up to 10 kV / optional 20 KV and an external input for an external high voltage divider, HVT 2015, measurement and display of voltages up to 300 kV. The HVM 2015 is designed for measuring AC and DC voltages and allows in addition measurement of the peak value of lightning and switching pulse voltages.



There are two models of the HVM 2015 to choose from:
• HVM 2015 HVM 2015 – 10kV Part Number 5101017
• HVM 2015 20KV HVM 2015 – option 20kV Part Number 5101015



 HVM 2015 High Voltage (HV) Measurement Equipment Data Sheet

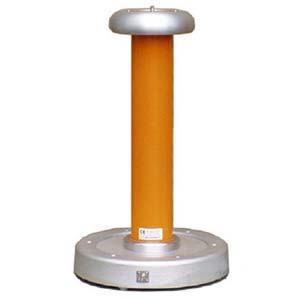

HVT-RCR Broadband High Voltage Divider Series (HVT 10-160 RCR) (Part Number



Summary:

• Broadband high voltage dividers

• Very good accuracy

• High bandwidth, low rise time

• Pulse Fidelity

• Long term stability



The Broadband high-voltage dividers series HVT (Models 10-160) RCR are state-of-the-art measuring equipment with excellent high-frequency transmission characteristics. The high-voltage impedance consists of a precise metal film resistor and a high-voltage capacitor with series damping resistor in parallel. The measuring cable with the termination network is an essential part of the divider. The termination network can be adjusted for an oscilloscope input impedance of 1 MΩ // 10 – 30 pF.



The HVT RCR is available with the following Voltage

Model	Voltage	Part #
HVT 10 RCR	High Voltage divider 11kV DC	5104011
HVT 20 RCR	High Voltage divider 22kV DC	5104010
HVT 40 RCR	High Voltage divider 40KV DC	5104001
HVT 80 RCR	High Voltage divider 80KV DC	5104002
HVT 120 RCR	High Voltage divider 120KV DC	5104003
HVT 160 RCR	High Voltage divider 160KV DC	5104009
HVT 240 RCR	High Voltage divider 240KV DC	5104004
HVT 300 RCR	High Voltage divider 300KV DC	5104013





 HVT-RCR Broadband high voltage divider series (HVT 10-160 RCR) Data Sheet

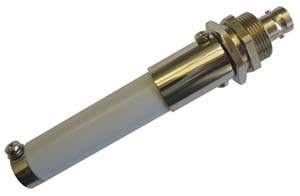

PVD 10-2 Pulse Voltage Divider



Summary:

• Pulse Voltage Divider

• Input voltage: 10 kV

• Bandwidth: 10 MHz

• Ratio: 100:1



The Pulse Voltage Divider PVD 10-3 has been designed to measure the pulse output of surge generators, e.g. a combination wave generators. It consists of the divider and a double shielded coaxial cable.



 PVD 10-2 Pulse Voltage Divider Data Sheet





PVD 10-3 Pulse Voltage Divider



Summary:

• Pulse Voltage Divider

• Input voltage: 10 kV

• Bandwidth: 10 MHz

• Ratio: 1000:1



The Pulse Voltage Divider PVD 10-3 has been designed to measure the pulse output of surge generators, e.g. a combination wave generators. It consists of the divider and a double shielded coaxial cable.



 PVD 10-3 Pulse Voltage Divider Data Sheet





SCK 105 Surge Calibration Kit (Part Number 5302005)



Summary:

• Surge Calibration Kit

• Input voltage: 12kV

• Ratio: 1000:1

• Bandwidth: 10MHz



The Surge Calibration Kit has been designed to measure the pulse output voltage and the pulse output current of surge generators, e.g. a combination wave generator. It essentially consists of a pulse voltage divider, a pulse current measuring resistor and a double shielded coaxial cable.



 SCK 105 Surge Calibration Kit Data Sheet

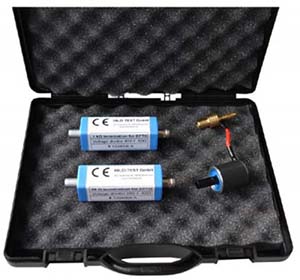

BCK 400 F Burst Calibration Kit (Part Number 5302006)



Summary:

• Burst Calibration Kit

• Input voltage: 5 kV

• Ratio, 200/400:1

• Bandwidth: 400 MHz



The Burst Calibration Kit has been designed to measure the pulse output voltage and the pulse output current of burst generators, e.g. the EFTG 4510 or the burst generator sub-unit of the CE-TESTER. It essentially consists of a load resistor, a pulse voltage divider and a double shielded coaxial cable.



Related Standards:

IEC: IEC 61000-4-04



 BCK 400 F Burst Calibration Kit Data Sheet

HIGH VOLTAGE DIVIDERS

Data Sheet	Description
High-voltage dividers for AC, DC- or impulse voltage
HVT *** RCR	Broad band high voltage dividers HVT *** RCR for DC- AC- and impulse voltages
HVM 2015	High-voltage measurement equipment for AC, DC and Pulse voltages Usable with all Hilo-Test high-voltage dividers HVT XXX RCR
PVD	Pulse voltage divider For impulse voltage 1,2/50 us,  until max. 12 KV Ratio 100:1, 1000:1
