The Multi CE5 and its sub-units are available in different configurations:

Multi-CE5 1	including SURGE and BURST
Multi-CE5 2	including SURGE, BURST and POWER FAIL SWITCH
EFTG-CE5	Stand-alone BURST generator
CWG-CE5	Stand-alone SURGE generator
PFS-CE-16	Stand-alone POWER FAIL SIMULATOR. Including a power fail switch and a variable power source



Multi-Functional Generators

The multi-functional test simulators / generators from HILO-TEST are perfect basic equipment for each EMC test laboratory. These combination devices offer the most versatile and at the same time economical solution for full-compliant immunity tests.

Below you will find all the «All-In-One» test simulators / generators for various EMC testing purposes



CAR TEST System 14 (CAR-SYS 14)



Summary:

• EMC – Test Equipment for electrical installation of vehicles

• 1-5/2000μs, 600 V

• 1-5/1000μs, 600 V

• 1 / 50μs, 600 V

• 5/100 ns, 800 V



The EMC test system is designed for testing electromagnetic immunity of the electrical installation of vehicles and components against supply line transients.



Related Standards:

ISO: ISO 7637-2, ISO 7637-3, ISO 16750-2, ISO 21848

Related Manufacturer Standards:

LV 124, LV 148, VW 8000, VW 8100, VG 96916



There are three models of the CAR-SYS 14 available:

• CAR-SYS 14 I – 50A – Part Number 5207026
• CAR-SYS 14 II – 100A – Part Number 5207027

• CAR-SYS 14 III – 200A – Part Number 5207028





 CAR TEST System 14 (CAR-SYS 14 1, CAR-SYS 14 II, CAR-SYS 14 III) Data Sheet



CE-Tester 1 – Discontinued – Replaced by Multi-CE5 1



Summary:

• BURST 5kV, 5/50ns

• SURGE 5kV, 1,2/50µs SURGE 2.5kA, 8/20µs

• 1-Ph. Coupling network

• Upgrade able



The CE-TESTER is a compact EMC test unit designed for testing electromagnetic immunity against pulsed and conducted interference. Demonstrating such immunity is generally a requirement for compliance with the European EMC directive, a necessary step leading to the CE mark. In its basic configuration, the CE-TESTER includes an Electrical Fast Transient Generator (EFTG), a Combination Wave Generator (CWG) and a Coupling-/Decoupling Network (CDN) for single-phase power supply lines.



Related Standards:
IEC: IEC 61000-4-04, IEC 61000-4-05, IEC 61000-4-08, IEC 61000-4-09, IEC 61000-4-11, IEC 60060-2



 CE-Tester 1 Data Sheet

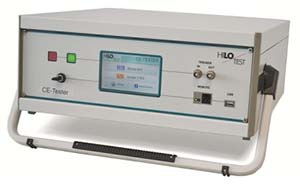

CE-Tester 2 – Discontinued – Replaced by Multi-CE5 2



Summary:

• BURST 5kV, 5/50 ns

• SURGE 5kV, 1,2/50µs SURGE 2.5kA, 8/20µs

• 1-Ph. Coupling network

• Voltage dips/variation

• Magnetic field 50/60 Hz

• Magnetic field 8/20 μs



The CE-TESTER is a compact EMC test unit designed for testing electromagnetic immunity against pulsed and conducted interference. Demonstrating such immunity is generally a requirement for compliance with the European EMC directive, a necessary step leading to the CE mark. In its basic configuration, the CE-TESTER includes an Electrical Fast Transient Generator (EFTG), a Combination Wave Generator (CWG) and a Coupling-/Decoupling Network (CDN) for single-phase power supply lines.



Related Standards:

IEC: IEC 61000-4-04, IEC 61000-4-05, IEC 61000-4-08, IEC 61000-4-09, IEC 61000-4-11, IEC 60060-2, IEC 61000-4-29



 CE TESTER 2 Data Sheet

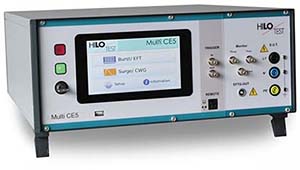

Multi-CE5 1 Compact EMC-Tester (Part Number 5201014)



•	BURST 5kV, 5/50ns
•	SURGE 5kV, 1,2/50µs SURGE 2.5kA, 8/20µs
•	1-Ph. Coupling network
•	Upgrade able



The Multi-CE5 1 is a compact EMC test unit designed for testing electromagnetic immunity against pulsed and conducted interference. Demonstrating such immunity is generally a requirement for compliance with the European EMC directive, a necessary step leading to the CE mark. In its basic configuration, the Multi-CE5 includes an Electrical Fast Transient Generator (EFTG), a Combination Wave Generator (CWG) and a Coupling-/Decoupling Network (CDN) for single-phase power supply lines

Related Standards:

• IEC 61000-4-4 : 2012 BURST 5kV
• IEC 61000-4-5 : 2014 SURGE 5kV, 2.5kA
• IEC 61000-4-8 : 2010 Magnetic field 50/60 Hz
• IEC 61000-4-9 : 2001 Magnetic field 8/20 μs
• IEC 61000-4-11 / 29 : 2004 Voltage dips/variation



 Multi CE5 Compact EMC-tester Data Sheet



Multi-CE5 2 Compact EMC-Tester (Part Number 5201015)



•	BURST 5kV, 5/50 ns
•	SURGE 5kV, 1,2/50µs SURGE 2.5kA, 8/20µs
•	1-Ph. Coupling network
•	Voltage dips/variation
•	Magnetic field 50/60 Hz
•	Magnetic field 8/20 μs



The Multi-CE5 2 is a compact EMC test unit designed for testing electromagnetic immunity against pulsed and conducted interference. Demonstrating such immunity is generally a requirement for compliance with the European EMC directive, a necessary step leading to the CE mark. In its basic configuration, the Multi-CE5 includes an Electrical Fast Transient Generator (EFTG), a Combination Wave Generator (CWG) and a Coupling-/Decoupling Network (CDN) for single-phase power supply lines



Related Standards:

• IEC 61000-4-4 : 2012 BURST 5kV
• IEC 61000-4-5 : 2014 SURGE 5kV, 2.5kA
• IEC 61000-4-8 : 2010 Magnetic field 50/60 Hz
• IEC 61000-4-9 : 2001 Magnetic field 8/20 μs
• IEC 61000-4-11 / 29 : 2004 Voltage dips/variation





 Multi CE5 Compact EMC-tester Data Sheet





Multi-CE7 1 Compact EMC-Tester (Part Number 5201025)



•	BURST 5kV, 5/50ns
•	SURGE 7kV, 1,2/50µs SURGE 3.5kA, 8/20µs
•	1-Ph. Coupling network
•	Upgrade able



The Multi-CE7 is a compact EMC test unit designed for testing electromagnetic immunity against pulsed and conducted interference. Demonstrating such immunity is generally a requirement for compliance with the European EMC directive, a necessary step leading to the CE mark. In its basic configuration, the Multi-CE5 includes an Electrical Fast Transient Generator (EFTG), a Combination Wave Generator (CWG) and a Coupling-/Decoupling Network (CDN) for single-phase power supply lines.



Typical configurations:
• Multi-CE7 1 + CDN 5416 for 3-phase testing
• Multi CE7 2 + VPS 250-16 for testing surge, burst, power fail, voltage dips and variation



Related Standards:

• IEC 61000-4-04 : 2012 BURST 5kV
• IEC 61000-4-05 : 2014 SURGE 5kV, 3.5kA
• IEC 61000-4-08 : 2010 Magnetic field 50/60 Hz
• IEC 61000-4-09 : 2001 Magnetic field 8/20 μs
• IEC 61000-4-11 / 29 : 2004 Voltage dips/variation

• IEC 61000-4-12 : Ringwave Generator 7kV

• ITU, FCC Part 68 and IEC 61000-4-5 : Telecom Surge 7kV



 Multi CE7 Compact EMC-tester Data Sheet



Multi-CE7 2 Compact EMC-Tester (Part Number 5201030)



•	BURST 5kV, 5/50 ns
•	SURGE 5kV, 1,2/50µs SURGE 2.5kA, 8/20µs
•	1-Ph. Coupling network
•	Voltage dips/variation
•	Magnetic field 50/60 Hz
•	Magnetic field 8/20 μs



The Multi-CE7 is a compact EMC test unit designed for testing electromagnetic immunity against pulsed and conducted interference. Demonstrating such immunity is generally a requirement for compliance with the European EMC directive, a necessary step leading to the CE mark. In its basic configuration, the Multi-CE5 includes an Electrical Fast Transient Generator (EFTG), a Combination Wave Generator (CWG) and a Coupling-/Decoupling Network (CDN) for single-phase power supply lines.



Typical configurations:
• Multi-CE7 1 + CDN 5416 for 3-phase testing
• Multi CE7 2 + VPS 250-16 for testing surge, burst, power fail, voltage dips and variation

Related Standards:

• IEC 61000-4-04 : 2012 BURST 5kV
• IEC 61000-4-05 : 2014 SURGE 5kV, 3.5kA
• IEC 61000-4-08 : 2010 Magnetic field 50/60 Hz
• IEC 61000-4-09 : 2001 Magnetic field 8/20 μs
• IEC 61000-4-11 / 29 : 2004 Voltage dips/variation

• IEC 61000-4-12 : Ringwave Generator 7kV

• ITU, FCC Part 68 and IEC 61000-4-5 : Telecom Surge 7kV





 Multi CE7 Compact EMC-tester Data Sheet





PG 6-250 Varistor Tester (Build to order)



Summary:

• Varistor- Tester

• Surge voltage: 1.2/50μs, 6 kV

• Surge current: 8 / 20 μs, 2.4 kA

• Surge voltage 10 / 700 μs



The Varistor Tester PG 6-250 is a compact test generator for testing the surge current capability of varistors. The unit contains a combination wave generator and a surge voltage generator according to CCITT, ITU-T.



 PG 6-250 Varistor Tester Data Sheet



PG 6-364 High Voltage Impulse Generator (Part Number 5206010)



Summary:

• Surge testing

• Impulse voltage: 6.3 kV

• Waveform: 1.2 / 50 μs

• Waveform: 10 / 700 μs

• Energy: 20 J / 400 J

• Other waveforms



The high-voltage impulse generator PG 6-364 generates standard impulse voltages with waveforms 1.2/50 μs and 10/700 μs. Output voltage is adjustable between 0.2 kV and 6 kV. The polarity of the output voltage is selectable. Positive, negative or alternating polarity of the output voltage can be preselected. The generator is designed for dielectric testing of components and systems as well as testing of the electromagnetic compatibility of electronic systems and devices according to CCITT K17/K20/K22, ITU-T/K44, IEC 61000-4-5, VDE 0847.



Related Standards:

IEC: IEC 61000-4-05

ITU-T: K17, K20, K22, K44



 High-Voltage Impulse Generator PG 6-364 Data Sheet





EMC 2015 Impulse Generator (Part Number 5205012)



Summary:

• EMI Simulator

• Plug-in system

• Different wave forms



The impulse generator system EMC 2015 has been designed for dielectric testing of electric components, over-voltage protectors and electronic circuits according IEC, VDE etc. The basic version generates impulse currents with waveform 8/20 μs and a peak value up to 25 kA. In addition, various other plug-ins are also available.



Related Standards:

IEC: IEC 60060-2, IEC 62475-2
