Hilo-Test Surge (Hybrid) Generators

Surge pulses occur due to direct or indirect lightning strikes in a circuit or by switching transients caused by switching inductive loads or short circuits. This leads to currents or electromagnetic fields causing high voltage or current transients. Surge voltages and currents can reach several thousands of volts and thousands of amperes. The following HILO-TEST Surge generators simulate these disturbances for all the necessary levels in accordance with IEC / EN 61000-4-5 and IEC / EN 60060:

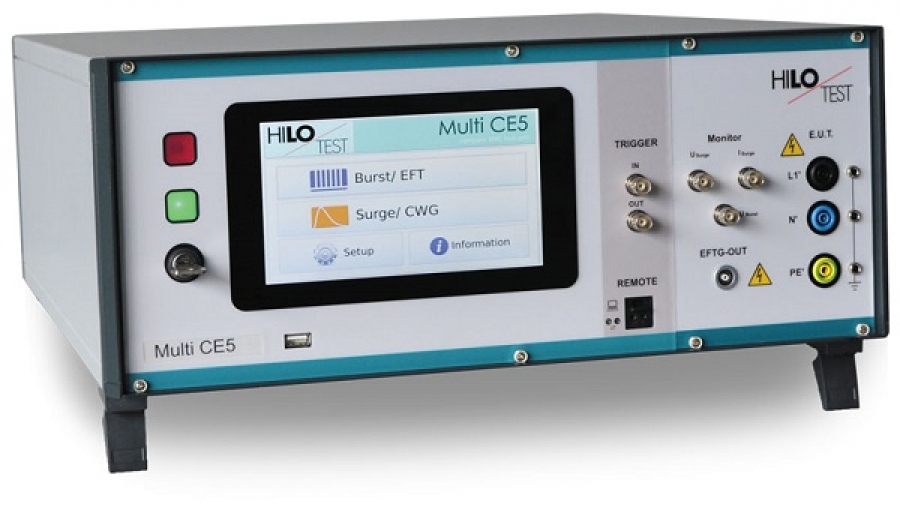

CWG-CE5 (Multi CE5) Compact EMC Test Unit (Part Number 5201016)



Summary:

• Voltage: 5 kV

• Waveform: 1,2/50 µs

• Current: 2.5 kA

• Waveform: 8/20 µs

• Energy: 120 J

• 1-Ph. Coupling network



The CWG-CE5 is a compact EMC test unit designed for testing electromagnetic immunity against pulsed and conducted interference. Demonstrating such immunity is generally a requirement for compliance with the European EMC directive, a necessary step leading to the CE mark.



Related Standards:

IEC: IEC 61000-4-05



 CWG-CE5 (Multi CE5) Compact EMC Test Unit Data Sheet

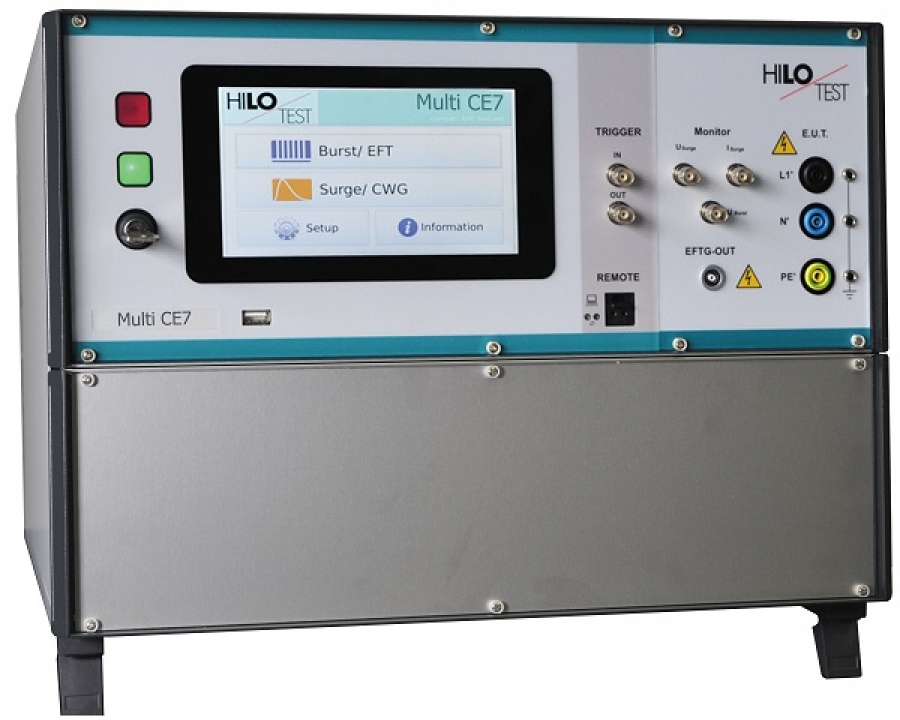

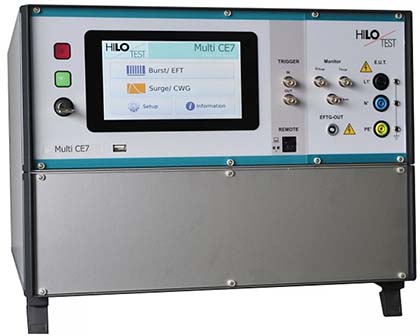

CWG-CE7 Combination Wave Generator (Part Number 5203030)

The Combination Wave Generator CWG-CE7 is a combined impulse-current-/impulse-voltage generator which, for high-impedance loads, RL > 100Ω, delivers a standard impulse voltage with waveform 1.2/50μs and, for short-circuited output, a standard impulse current with waveform 8/20μs.



Summary:
• Voltage: 7 kV
• Waveform: 1.2 / 50 μs
• Current: 3.5 kA
• Waveform: 8 / 20 μs
• Energy: 250 J



Related Standards:

IEC:IEC 61000-4-05

 Multi CE7 Compact EMC-tester Data Sheet

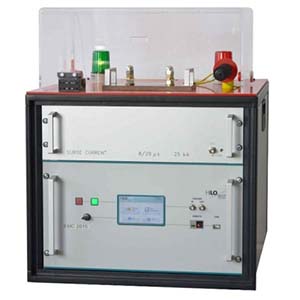

EMC 2015 Impulse Generator (Part Number 5205012)



Summary:

• EMI-Simulator

• Plug-in system

• Different wave forms



The impulse generator system EMC 2015 has been designed for dielectric testing of electric components, over-voltage protectors and electronic circuits according IEC, VDE etc. The basic version generates impulse currents with waveform 8/20 μs and a peak value up to 25 kA. In addition, various other plug-ins are also available.



Related Standards:

IEC: IEC 60060-2, IEC 62475-2



 EMC 2015 Impulse Generator Data Sheet





PG 6-2402 Surge Current Generator (Part Number 5205019)

Surge current testing of surge protection devices

Surge current
8/20 µs
2 * ( 1 – 25 ) kA
acc. to IEC 60, VDE 0432



The high-current pulse generator PG 6-2402 is designed for surge current testing of electrical components, over-voltage protectors and electronic circuits acc. to IEC, VDE etc. It generates standard impulse currents with waveform 8/20µs. Pulse current output amplitude can be set to 2 – 50 kA.



 HILO-TEST PG 6-2402 Surge Current Generator Data Sheet

 HILO-TEST PG 6-2402 Surge Current Generator Calibration Mark

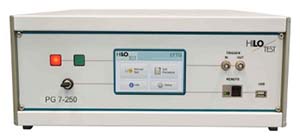

PG 7-250 Combination Wave Generator (Part Number 5203030)



Summary:

• Voltage: 7 kV

• Waveform: 1.2 / 50 μs

• Current: 3.5 kA

• Waveform: 8 / 20 μs

• Energy: 250 J



The Combination Wave Generator PG 7-250 is a combined impulse-current-/impulse-voltage generator which, for high-impedance loads, RL > 100, delivers a standard impulse voltage with waveform 1.2/50μs and, for short-circuited output, a standard impulse current with waveform 8/20μs.



Related Standards:

IEC: IEC 61000-4-05



 Combination Wave Generator PG 7-250 Data Sheet



PG 10-504 Combination Wave Generator (Part Number 5203016)



Summary:

• Voltage: 10 kV

• Waveform: 1.2/50 μs

• Current: 5 kA

• Waveform: 8/20 μs

• Energy: 500 J



The Combination Wave Generator PG 10-504 is a combined impulse-current-/impulse-voltage generator which, for high-impedance loads, RL > 100, delivers a standard impulse voltage with waveform 1.2/50μs and, for short-circuited output, a standard impulse current with waveform 8/20μs.



Related Standards:

IEC: IEC 61000-4-05



 PG 10-504 Combination Wave Generator Data Sheet

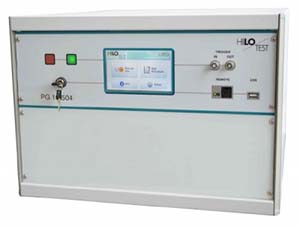

PG 12-804 Combination Wave Generator (Part Number 5203022)



Summary:

• Voltage: 12kV

• Waveform: 1.2/50 μs

• Current: 6 kA

• Waveform: 8/20 μs

• Energy: 800 J



The Combination Wave Generator PG 12-804 is a combined impulse-current-/impulse-voltage generator which, for high-impedance loads, RL > 100, delivers a standard impulse voltage with waveform 1.2/50μs and, for short-circuited output, a standard impulse current with waveform 8/20μs.



Related Standards:

IEC: IEC 61000-4-05



 PG 12-804 Combination Wave Generator Data Sheet

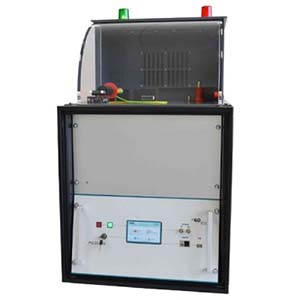

PG 24-2k5 (PG 25-2500) Surge Test Generator (Part Number 5203017)



Summary:

• Voltage: 24 kV

• Waveform: 1.2/50 μs

• Current: 12 kA

• Waveform: 8/20 μs

• Energy: 2500 J



The Surge Test Generator PG 24-2500 is a combined impulse current-/impulse-voltage generator which, for high-impedance loads, RL > 100, delivers a standard impulse voltage with waveform 1.2/50μs and, for short-circuited output, a standard impulse current with waveform 8/20μs, as defined by IEC 60. The peak value of the pulse output voltage can be adjusted from 0.5 kV to 24 kV. The peak short circuit current amplitude is 12 kA.



Related Standards:

IEC: IEC 61000-4-05, IEC 61643-11
