    HILO - SAFETY TEST CABINETS

    Safety Test Cabinets

     PA 503 Safety Test Cabinet

     PA 505 Safety Test Cabinet

     PA 525 Safety Test Cabinet

     PU 12 A-B DUT Switchover

     Safety Test Cabinets



    PA 503 Safety Test Cabinet

    PA 503 Safety test cabinet



    Summary:

    • Safety test cabinet

    • Test voltage: 6 kV / 12 kV

    • Dimensions W*H*D: 470 * 280 * 490 mm³



    The safety test cabinet PA 503 is designed for high-voltage testing of components and PCB’s etc. The transparent cabinet prevents accidental contact with live parts of the test object, yet allows observation of the test object during testing.



     HILO-TEST PA 503 Safety Test Cabinet Data Sheet





    PA 505 Safety Test Cabinet

    PA 505 Safety test cabinet



    Summary:

    • Safety test cabinet

    • Test voltage: 10 kV

    • Dimensions W*H*D: 440*250*500 mm³



    The safety test cabinet PA 505/ PA 525 is designed for high-voltage testing of components and PCB’s etc. The transparent cabinet prevents accidental contact with live parts of the test object, yet allows observation of the test object during testing.



     HILO-TEST PA 505 Safety Test Cabinet Data Sheet

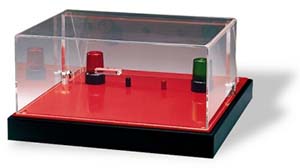

    PA 525 Safety Test Cabinet

    PA 525 Safety test cabinet

    Summary:

    • Safety test cabinet

    • Test voltage: 12 kV

    • Dimensions W*H*D: 440*250*500 mm³



    The safety test cabinet PA 505/ PA 525 is designed for high-voltage testing of components and PCB’s etc. The transparent cabinet prevents accidental contact with live parts of the test object, yet allows observation of the test object during testing.



     HILO-TEST PA 525 Safety Test Cabinet Data Sheet

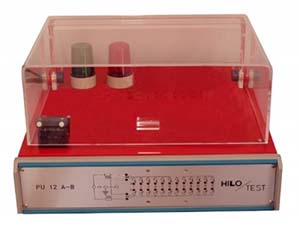

    PU 12 A-B DUT Switchover

    HILO-TEST PU 12 A-B DUT Switchover



    Summary:

    • DUT switchover

    • High voltage test of devices



    For high-voltage testing of components, a DUT switchover is available for different pulse generators.



    By using the PU 12 A-B DUT Switchover the testing time be significantly reduced and increased the throughput significantly. The specimens are contacted via test adapter that new line during the test can be fitted and replaced quickly. Direct testing of 8/10/12 or 15 individual specimens or the «Differential / common mode» testing the a / b wires of IT equipment can be realized will. The control of the PU 12 A-B DUT Switchover done from the test generator.

    The specimens are covered during the test by a safety test.

    Of the Following the test generator is carried coaxially on the back of the units. To this Thus achieved a high degree of personal safety for the operating personnel.

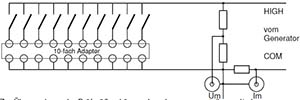

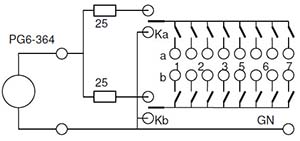

    Block diagram, by way of example:

    To monitor the test quantities can pulse voltage divider and / or Current viewing resistors are integrated into the PU 12 A-B DUT Switchover.



     HILO-TEST PU 12 A-B DUT Switchover Data Sheet



    Safety Test Cabinets

    Data Sheet



    Description



    PA 503 Safety test cabinet
    Test space ca. W*H*D: 400 / 140 / 250
    PA 501/502 Safety test cabinet
    Test space ca. W*H*D: 440 / 180 / 300
    PA 505/525 Safety test cabinet
    Test space ca. W*H*D: 400 / 250 / 400
    PA 504 Safety test cabinet
    Test space ca. W*H*D: 490 / 300 / 300
