HILO - Ring-Wave Generators
Ring Wave Generators
• HILO-TEST Ring Wave Generators
• IPG 612 T / IPG 612T High-Voltage Pulse Generator
• IPG 2554sf Oscillatory Wave Generator
• IPG 2554 S Oscillatory Wave Generator
HILO-TEST Ring Wave Generators
Ring wave or oscillatory wave are pulsed onset, damped oscillatory waves are triggered in low, medium and high-voltage systems in data networks by switching operations, lightning strikes and insulation breakthroughs in cable runs. The Ring wave Immunity tests for electrical equipment are described in the basic EMC standards IEC 61000-4-10, IEC 61000-4-12 and IEC 61000-4-18.
IPG 2554sf Oscillatory Wave Generator (Part Number 5208007)
Summary:
• Oscillatory wave test
• Slow damped oscillatory: 100 kHz, 1 MHz
• Fast damped oscillatory: 3 MHz, 10 MHz, 30 MHz
• 1-3-Ph. Coupling network
The oscillatory wave generator IPG 2554 has been designed for immunity testing of electrical and electronic equipment against repetitive damped oscillatory waves according to IEC 61000-4-18 requirements.
Related Standards:
IEC: IEC 61000-4-18
Other: ANSI C37.90
Oscillatory Wave Generator IPG 2554 Data Sheet

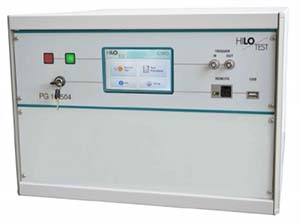

IPG 2554 S Oscillatory Wave Generator
Summary:
• Oscillatory wave test
• Slow damped oscillatory: 100 kHz, 1 MHz
• 1-3-Ph. Coupling network
The oscillatory wave generator IPG 2554 has been designed for immunity testing of electrical and electronic equipment against repetitive damped oscillatory waves according to IEC 61000-4-18 requirements.
Additional Info IEC:
IEC 61000-4-18
Other: ANSI C37.90
IPG 2554s Oscillatory Wave Generator Data Sheet

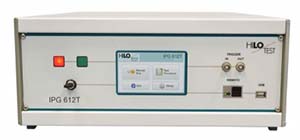

IPG 612 T / IPG 612T High-Voltage Pulse Generator (Part Number 5204009)
Summary:
• Ring-wave generator
• Frequency: 100 kHz
• Rise time: 0.5 μs
High-voltage pulse generator producing Ring Wave 0.5 μs / 100 kHz according to IEEE 587. The output peak voltage can be preset continuously from 0.2 – 6 kV. Rise time 0.5μs to the first peak, ringing frequency 100 kHz. A built-in voltage divider allows monitoring of the output voltage waveform. The generator comprises an electronically regulated high-voltage power supply, an energy storage capacitor, a high-voltage/high-current switch, a pulse forming network and a control- and monitoring unit. Moreover, the generator includes a Coupling-/Decoupling Network (CDN) for single-phase power supply lines.
Related Standards:
IEC: IEC 61000-4-12, IEC 1008-1 Other: ANSI C37.90
