Impulse voltage generator

Hilo-Test manufactures Surge generators for surge voltage and safety tests as well as for testing how well insulation withstands voltage, and the waveform in accordance with IEC 60060. Especially for EMC tests on photovoltaic systems and surge voltage tests, for example, to relay, capacitors, coils …, here is the right solution:



PG 6-364 High-Voltage Impulse Generator (Part Number 5206010)



Summary:

• Surge testing

• Impulse voltage: 6.3 kV

• Waveform: 1.2 / 50 μs

• Waveform: 10 / 700 μs

• Energy: 20 J / 400 J

• Other waveforms



The high-voltage impulse generator PG 6-364 generates standard impulse voltages with waveforms 1.2/50 μs and 10/700 μs. Output voltage is adjustable between 0.2 kV and 6 kV. The polarity of the output voltage is selectable. Positive, negative or alternating polarity of the output voltage can be preselected. The generator is designed for dielectric testing of components and systems as well as testing of the electromagnetic compatibility of electronic systems and devices according to CCITT K17/K20/K22, ITU-T/K44, IEC 61000-4-5, VDE 0847.



Related Standards:

IEC: IEC 61000-4-05

ITU-T: K17, K20, K22, K44



 PG 6-364 High-Voltage (HV) Impulse Generator Data Sheet



IPG 605 High-Voltage Pulse Generator



Summary:

• Insulation test

• Impulse voltage: 6.25 kV

• Waveform: 1,2/50µs

• Energy: 5 J

• Detecting breakdown



High-Voltage Pulse Generators IPG 1218 / 1012 / 605 generate standard impulse voltages with waveform 1.2 / 50 μs according to IEC 60060. They are designed for testing impulse dielectric strength of components, insulations, air- and surface flash-over gaps according to IEC. The peak value of the test voltage is continuously adjustable from 0.2 – 6.25 / 10 / 12 kV. Positive or negative polarity of the output voltage can be selected. A built-in voltage divider 1000:1 allows monitoring of the impulse output waveform during testing.



There are two models of the IPG 605 to Choose from:

Model Number	Decription	Part #
IPG 605	High-voltage pulse generator, 6kV	5204032
IPG 605 with test cover	High-voltage pulse generator with test cover, 6kV	5204043



Related Standards:

IEC: IEC 60060-2, IEC 60664-1, IEC 61180-1



 IPG 605 High-Voltage Pulse Generator Data Sheet



IPG 1012 High-Voltage Pulse Generator



Summary:

• Insulation test

• Impulse voltage: 10 kV

• Waveform: 1,2/50µs

• Energy: 12 J

• Detecting breakdown



High-Voltage Pulse Generators IPG 1218 / 1012 / 605 generate standard impulse voltages with waveform 1.2 / 50 μs according to IEC 60060. They are designed for testing impulse dielectric strength of components, insulations, air- and surface flash-over gaps according to IEC. The peak value of the test voltage is continuously adjustable from 0.2 – 6.25 / 10 / 12 kV. Positive or negative polarity of the output voltage can be selected. A built-in voltage divider 1000:1 allows monitoring of the impulse output waveform during testing.



Model	Decription	Part #
IPG 1012	High-voltage pulse generator, 10kV	5204012
IPG 1012 with test cover	High-voltage pulse generator with test cover, 10kV	5204016



Related Standards:

IEC: IEC 60060-2, IEC 60664-1, IEC 61180-1



 IPG 1012 High-Voltage Pulse Generator Data Sheet



IPG 1218 High-Voltage Pulse Generator



Summary:

• Insulation test

• Impulse voltage: 12 kV

• Waveform: 1,2/50µs

• Energy: 18 J

• Detecting breakdown



High-Voltage Pulse Generators IPG 1218 / 1012 / 605 generate standard impulse voltages with waveform 1.2 / 50 μs according to IEC 60060. They are designed for testing impulse dielectric strength of components, insulations, air- and surface flash-over gaps according to IEC. The peak value of the test voltage is continuously adjustable from 0.2 – 6.25 / 10 / 12 kV. Positive or negative polarity of the output voltage can be selected. A built-in voltage divider 1000:1 allows monitoring of the impulse output waveform during testing.

There are two models of the IPG 1218 to choose from:

Model	Decription	Part #
IPG 1218	High-voltage pulse generator, 12kV	5204036
IPG 1218 with test cover	High-voltage pulse generator with test cover, 12kV	5204030



Related Standards:

IEC: IEC 60060-2, IEC 60664-1, IEC 61180-1



 IPG 1218 High-Voltage Pulse Generator Data Sheet

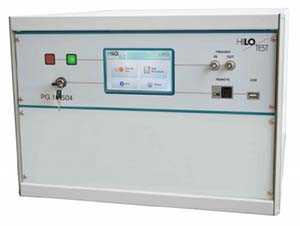

PG 12-400 Combination Wave Generator



Summary:

• Surge voltage

• Impulse voltage: 12 kV

• Waveform: 1,2/50µs

• Energy: 400 J

• Phase synchronization



The Combination Wave Generator PG 12-400 is a impulse-voltage generator which, for high-impedance loads, RL > 500, delivers a standard impulse voltage with waveform 1.2/50μs.



Related Standards:

IEC: IEC 60060-2, IEC 60664-1, IEC 61010-1



 PG 12-400 Combination Wave Generator Data Sheet





IPG 2025 High Voltage (HV) Impulse Generator



Summary:

• Insulation test

• Impulse voltage: 20 kV

• Waveform: 1,2/50µs

• Energy: 25 J

• Detecting breakdown



The High Voltage (HV) Impulse generators IPG 2025 and IPG 2436 create standard impulse voltages with waveform 1.2 / 50 μs according to IEC 60060. They are designed for testing impulse dielectric strength of components, insulations, air- and surface flash-over gaps according to the standards. The peak value of the test voltage is continuously adjustable from 2 – 20 kV or 2 – 24 kV. Positive or negative polarity of output voltage can be selected. A built-in voltage divider 1000:1 allows monitoring of the impulse output waveform during testing.



There are two models of the IPG 2025 to choose from:

Model	Decription	Part #
IPG 2025	High-voltage pulse generator, 20kV	5204053
IPG 2025 with test cover	High-voltage pulse generator with test cover, 20kV	5204015



Related Standards:

IEC: IEC 60664-1, IEC 60335-1, IEC 61180-1



 IPG 2025 High Voltage (HV) Impulse generator Data Sheet



IPG 2436 Impulse Generator



Summary:

• Insulation test

• Impulse voltage: 24 kV

• Waveform: 1,2/50µs

• Energy: 36 J

• Detecting breakdown



The HV – Impulse generators IPG 2025 and IPG 2436 create standard impulse voltages with waveform 1.2 / 50 μs according to IEC 60060. They are designed for testing impulse dielectric strength of components, insulations, air- and surface flash-over gaps according to the standards. The peak value of the test voltage is continuously adjustable from 2 – 20 kV or 2 – 24 kV. Positive or negative polarity of output voltage can be selected. A built-in voltage divider 1000:1 allows monitoring of the impulse output waveform during testing.



There are two models of the IPG 2436 to choose from:

Model	Decription	Part #
IPG 2436	High-voltage pulse generator, 24kV	5204054
IPG 2436 with test cover	High-voltage pulse generator with test cover, 24kV	5204039



Related Standards: IEC:

IEC 60664-1, IEC 60335-1, IEC 61180-1



 IPG 2436 Impulse Generator Data Sheet





IPG 255 High Voltage (HV) Pulse Generator



Summary:

• Insulation test

• Impulse voltage: 8 kV

• Waveform: 1,2/50µs

• Energy, constant: 0.5 J

• Detecting breakdown



The High-Voltage Pulse Generator IPG 255 is designed for testing of impulse dielectric strength of components, insulation, air-and surface flash-over gaps of watt-hour meters, static relays etc. according to IEC 60255, EN 61036, VDE 0435 part 303.



There are two models of the IPG 255 to choose from:

Model	Decription	Part #
IPG 255	High-voltage pulse generator	5204031
IPG 255 with test cover	High-voltage pulse generator with test cover	5204035



Related Standards:

IEC: IEC 60255, IEC 62053



 IPG 255 High Voltage (HV) Pulse Generator Data Sheet



IPG 1201 High Voltage (HV) Pulse Generator



Summary:

• Insulation test

• Impulse voltage: 12 kV

• Energy: 0.072 J

• Measurement of Riso >2MΩ



The High-Voltage Pulse Generator IPG 1201 is designed for testing of impulse dielectric strength of components, insulation, air- and surface flash over gaps. It is specially used for testing surge withstand capability of insulation between accessible parts and hazardous live parts, e.g. terminals for connection of antenna and mains supply terminals, refer to EN 60065.



There are two models of the IPG 1201 to choose from:

Model	Decription	Part #
IPG 1201	High-voltage pulse generator, 12kV	5204047
IPG 1201 with test cover	High-voltage pulse generator with test cover, 12kV	5204029



Related Standards:

IEC: IEC 60065, IEC 60950-1



 IPG 1201 High Voltage (HV) Pulse Generator Data Sheet

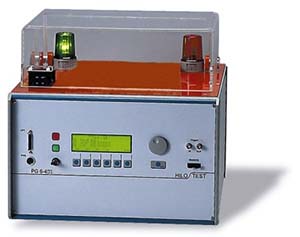

PG 6-401 High-Voltage Pulse Generator



Summary:

• Capacitor test

• Impulse voltage: 6 kV

• Waveform: 1,6/46 µs

• Energy: 400 J

• Test capacity: 33 – 470 nF



The High-Voltage Pulse Generator Type PG 6-401 is designed for dielectric testing of X- and Y-capacitors with standard impulse voltages 1.6/47 μs up to 6 kV according to IEC 384-14, etc. The generator has the same principle of operation as the IPG 809 but allows testing capacitance values of 33 nF – 470 nF.



Related Standards:

IEC: IEC 60384-14



 PG 6-401 High Voltage (HV) Pulse Generator Data Sheet





IPG 809 High Voltage (HV) Pulse Generator



Summary:

• Capacitor test

• Impulse voltage: 8 kV

• Waveform: 1,7/46 µs

• Energy: 9 J

• Test capacity: 0.1 – 27 nF



The High-Voltage Pulse Generator Type IPG 809 is designed for dielectric testing of X- and Y-capacitors with standard impulse voltages 1.7/46 μs –0/+50% up to 8 kV according to IEC 60384-14, EN 132400, VDE 0565 etc.



Related Standards:

IEC: IEC 60384-14



 IPG 809 High Voltage (HV) Pulse Generator Data Sheet





PG 4-641 High Voltage (HV) Impulse Generator



Summary:

• Impulse voltage: 3600 V

• Short circuit current: 480 A

• Waveform: 10 / 160 μs

• Energy: 600 J



High Voltage (HV) Impulse generator PG 4-641 creates standard voltage and current pulses with wave form 10 / 160 μs. Output voltage is adjustable up to 3600 V, the maximum short circuit current amplitude is 480 A peak. Positive or negative polarity of output voltage can be selected. A built-in voltage divider 1000:1 allows monitoring of the impulse output waveform during testing. The short circuit current wave can be monitored by use of the built-in shunt.



 PG 4-641 High Voltage (HV) Impulse Generator Data Sheet





PG 10-200 High Voltage (HV) Pulse Generator



Summary:

• Solar modules test

• Impulse voltage: 10 kV

• Waveform: 1,2/50µs

• Energy: 250 J

• Cp = 10 – 183 nF



The High Voltage (HV) Pulse Generator PG10-200 / PG12-360 is used for impulse voltage tests of solar modules (photovoltaic panels) with the standard surge voltage waveform 1.2/50 μs according to IEC 60060-1/2 up to 10 kV according to. IEC 61730-1/2 / EN 61730-1. For the surge voltage tests of solar modules, these are enveloped with a copper foil as described in the relative above standard. After that the connections of the solar modules are tested with surge voltage against the copper foils. The tight copper foil envelope required by the standard results in comparatively high capacitances of approx. 0 – 183 nF, which is switched in parallel to the output of the impulse generator.



Related Standards:

IEC: IEC 61730-1/2, IEC 60060-2



 PG 10-200 High Voltage (HV) Pulse Generator Data Sheet





PG 12-360 High Voltage (HV) Pulse Generator



Summary:

• Solar modules test

• Impulse voltage: 12 kV

• Waveform: 1,2/50µs

• Energy: 360 J

• Cp = 10 – 183 nF



The High Voltage (HV) Pulse generator PG10-200 / PG12-360 is used for impulse voltage tests of solar modules (photovoltaic panels) with the standard surge voltage waveform 1.2/50 μs according to IEC 60060-1/2 up to 10 kV according to. IEC 61730-1/2 / EN 61730-1. For the surge voltage tests of solar modules, these are enveloped with a copper foil as described in the relative above standard. After that the connections of the solar modules are tested with surge voltage against the copper foils. The tight copper foil envelope required by the standard results in comparatively high capacitances of approx. 0 – 183 nF, which is switched in parallel to the output of the impulse generator.



Related Standards:

IEC: IEC 61730-1/2, IEC 60060-2



 PG 12-360 High Voltage (HV) Pulse Generator Data Sheet



PG 20-100 High Voltage (HV) Pulse Generator



Summary:

• Solar modules test

• Impulse voltage: 20 kV

• Waveform: 1,2/50µs

• Energy: 100 J

• Cp = 10 – 183 nF



The High Voltage (HV) Pulse generator PG20-100 is used for impulse voltage tests of solar modules (photovoltaic panels) with the standard surge voltage waveform 1.2/50 μs according to IEC 60060-1/2 up to 20 kV according to. IEC 61730-1/2 / EN 61730-1.



Related Standards:

IEC: IEC 61730-1/2



 PG 20-100 High Voltage (HV) Pulse Generator Data Sheet



 PG 20-100 High Voltage (HV) Pulse Generator Instruction Manual

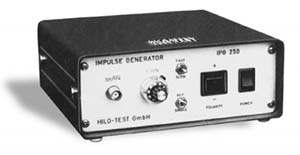

IPG 250 Pulse Generator



Summary:

• Pulse generator

• Measuring the step response

• Different operational modes



The pulse generator IPG 250 is designed for measuring the step response of high-impedance networks, for instance voltage dividers, oscilloscope probes etc. The generator excels by calibrated adjustment of output amplitude, short rise time and flat pulse top. The output pulse amplitude can be adjusted by use of a 10-turn potentiometer from 0 to 250 V. Positive and negative polarity can be selected.
