    Biconic Log-Periodic Antennas (Hybrid)

    Schwarzbeck Biconic Logarithmic Periodic Antennas - Hybrid - Antenna Family



    • VULB 9162 TRILOG Super Broadband Antenna

    · 30 MHz – 7 GHz
    · 100 W
    · diameter < 150 cm
    TRILOG Super Broadband Antenna VULB 9162

    Schwarzbeck TRILOG Super Broadband Antenna VULB 9162 Data Sheet Data Sheet VULB 9162

    Schwarzbeck TRILOG Super Broadband Antenna VULB 9162 Radiation Pattern Radiation Pattern

    Schwarzbeck TRILOG Super Broadband Antenna VULB 9162 Correction for Short Measuring Distance Correction for Gain and Antenna Factor for Short Measuring Distance

    Schwarzbeck TRILOG Super Broadband Antenna VULB 9162 Field Strength Field strength

    VULB 9163 TRILOG Super Broadband Antenna

    · (25) 30 – 3000 (4000) MHz
    · 100 W (200 W)
    · diameter < 150 cm

    Schwarzbeck VULB 9163 TRILOG Super Broadband AntennaSchwarzbeck VULB 9163 TRILOG Super Broadband Antenna

    Schwarzbeck TRILOG Super Broadband Antenna VULB 9163 Data Sheet Data sheet VULB 9163

    Schwarzbeck TRILOG Super Broadband Antenna VULB 9163 Balun Balance Balun Balance

    Schwarzbeck TRILOG Super Broadband Antenna VULB 9163 Radiation Pattern Radiation Pattern

    Schwarzbeck TRILOG Super Broadband Antenna VULB 9163 Calibration Data for Short Measuring Distance Calibration Data for Gain and Antenna Factor for Short Measuring Distance

    Schwarzbeck TRILOG Super Broadband Antenna VULB 9163 VSWR Voltage Standing Wave Ratio (VSWR)

    Schwarzbeck TRILOG Super Broadband Antenna VULB 9163 Field Strength Field strength

    Option Triext (Build To Order Only):
    angled Triangle Extensions to increase the gain by type 6 dB below 70 MHz.

    VULB9164 TRILOG Super Broadband Antenna
    Linear polarized Logarithmic Periodic Broadband Antenna combined with a Broadband Dipole (Aluminium tubing) for Receive and Transmit Applications.

    Frequency Range, nominal: 30 MHz – 3 GHz
    Usable Frequency Range: 25 MHz – 4 GHz
    Max Power: 1 kW (f<100 MHz)
    Schwarzbeck VULB 9168 TRILOG Super Broadband Antenna

    Schwarzbeck TRILOG Super Broadband Antenna VULB 9168 Data Sheet Data Sheet VULB 9164



    VULB 9168 TRILOG Super Broadband Antenna

    · (25) 30 – 3000 (2000) MHz
    · 10 W
    · reduced width, diameter < 1.5 m

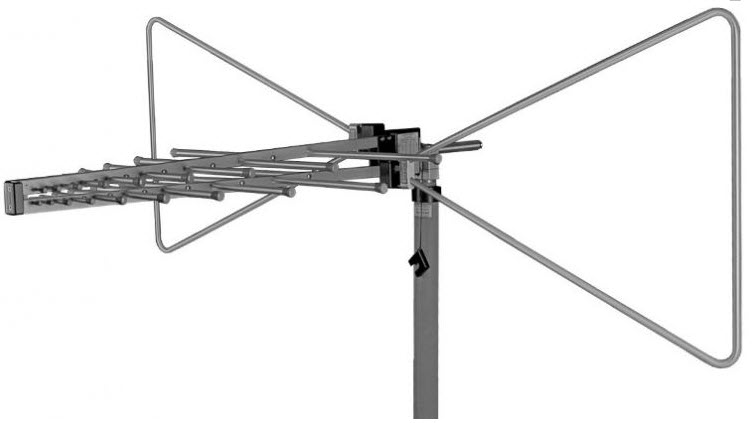

    Schwarzbeck VULB 9168 TRILOG Super Broadband Antenna

    Schwarzbeck TRILOG Super Broadband Antenna VULB 9168 Data Sheet Data Sheet VULB 9168

    Schwarzbeck TRILOG Super Broadband Antenna VULB 9168 Dimensions Dimensions

    Schwarzbeck TRILOG Super Broadband Antenna VULB 9168 Radiation Pattern Radiation Pattern

    Schwarzbeck TRILOG Super Broadband Antenna VULB 9168 Correction for Short Measuring Distance Correction for Gain and Antenna Factor for Short Measuring Distance

    Schwarzbeck TRILOG Super Broadband Antenna VULB 9168 VSWR Voltage Standing Wave Ratio (VSWR)
