ILS (Instrument Landing Systems) Dipole

· Linear polarized half-wave dipole with 1:1 balun and fixed element length for field-strength measurements at instrument landing systems (ILS).

· Frequency range:

· localizer: 108 – 118 MHz (LOC, LLC)

· glide slope: 320 – 340 MHz (G/S)

· Gain: 1.5 dBi

 Data Sheet (Instrument Landing Systems) ILS-Dipole

TETRA DIPOLE

· Linear polarized half-wave dipole with 1:1 balun and fixed element length for  measurements at TETRA (terrestrial trunked radio) networks.

· Frequency range: 340 – 480 MHz

· Gain: type 1.5 dBi

  Data Sheet Tetra-Dipole

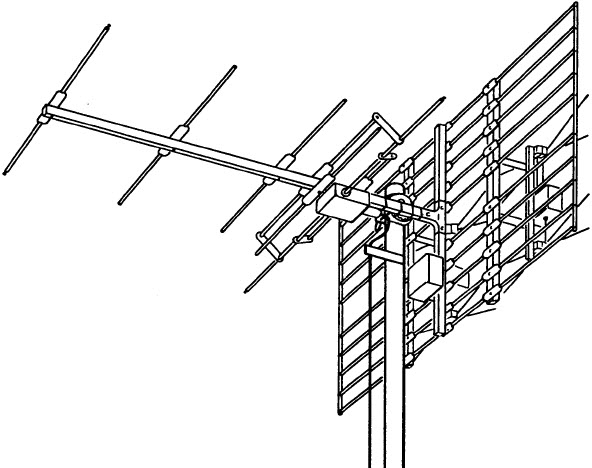

FT 01 S Additional Elements For Enhanced FM Broadcast Directivity- Build To Order Only

· Additional elements for enhanced FM broadcast directivity

[Data1]

[Data2]

 Data sheet FT 01 S

FT 01 UKW FM Broadcast and TV Bands Antenna – Build To Order Only

· FM broadcast and TV bands antenna

· detachable

· 47 – 860 (1000) MHz

· high directivity



RSH 113 Horizontal Polarized Omnidirectional Antenna

The RSH 113 is a crossed dipole antenna, consisting of two shortened half-wave-dipoles. The size reduction is achieved by the use of top loading discs. The design frequency range is from 108 to 118 MHz, typical applications are measurements at instrument landing systems (ILS-Localizer). The RSH 113 has a nearly omnidirectional pattern and comes with horizontal polarisation. The antenna can be used for both, Receive and Transmit Applications and comes with a nominal impedance of 50 Ω.

  Schwarzbeck RSH 113 Horizontal Polarized Omnidirectional Antenna Data Sheet



RSH 4786 Horizontal Polarized Omni Directional Antenna

· Horizontal polarized omni directional Antenna for mobile and stationary receive and transmit applications.
· A typical application is the DVB coverage measurement using measurement vehicles.
· Frequency range: 350 – 1050 MHz

  Data Sheet RSH 4786
 Radiation Pattern

RSH 2342 Horizontal Polarized Omni Directional Antenna

· Horizontal polarized omni directional Antenna for mobile and stationary receive and transmit applications.

· A typical application is the DVB-T (DTMB,ATSC or ISDB-T) coverage measurement using measurement vehicles.
· Frequency range: 170 – 350 MHz

  Data Sheet RSH 2342
 Radiation Pattern

RE 1790 Vertical Polarized VHF- UHF Biconical Antenna

 · Vertical polarized VHF- UHF biconical antenna

 · (170) 230 – 1000 (1100) MHz

 · with omni directional H-plane pattern

  Data Sheet RE 1790
 Radiation Pattern

RE 4590 Vertical Polarized VHF- UHF Biconical Antenna

 · Vertical polarized VHF- UHF biconical antenna

 · (330) 450 – 1000 (1100) MHz

 · with omni directional H-plane pattern

  Data Sheet RE 4590

RS 16 Vertical Polarized Microwave Biconical Antenna

· Vertical polarized microwave biconical antenna

· (0,5) 1 – 6 (8,5) GHz

· with omni directional H-plane pattern

 Data Sheet RS 16
 Radiation Pattern



RS 0460 Vertically Polarized Symmetrical Biconical Antenna

 · Vertically polarized symmetrical biconical antenna

 · 0,4 – 6 GHz

 · omni directional in the H-plane.

  Data Sheet RS 0460

RRAH 9286 Car Roof Rack Antenna Holder

Schwarzbeck RRAH 9286 Car Roof Rack Antenna Holder
with RSH 4786 Horizontal polarized omni directional antenna



The RRAH 9286 is an antenna holder for antennas with 22 mm tube for vertical mounting on a car roof rack. The antenna holder is suitable for all standard roof rack carriers with a max. cross-tube dimension of 44×30 mm. The mounting distance is adjustable from 82-92 cm at 2.5 cm intervals (center- center).

  Schwarzbeck RRAH-9286 Car Roof Rack Antenna Holder Data Sheet
